Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

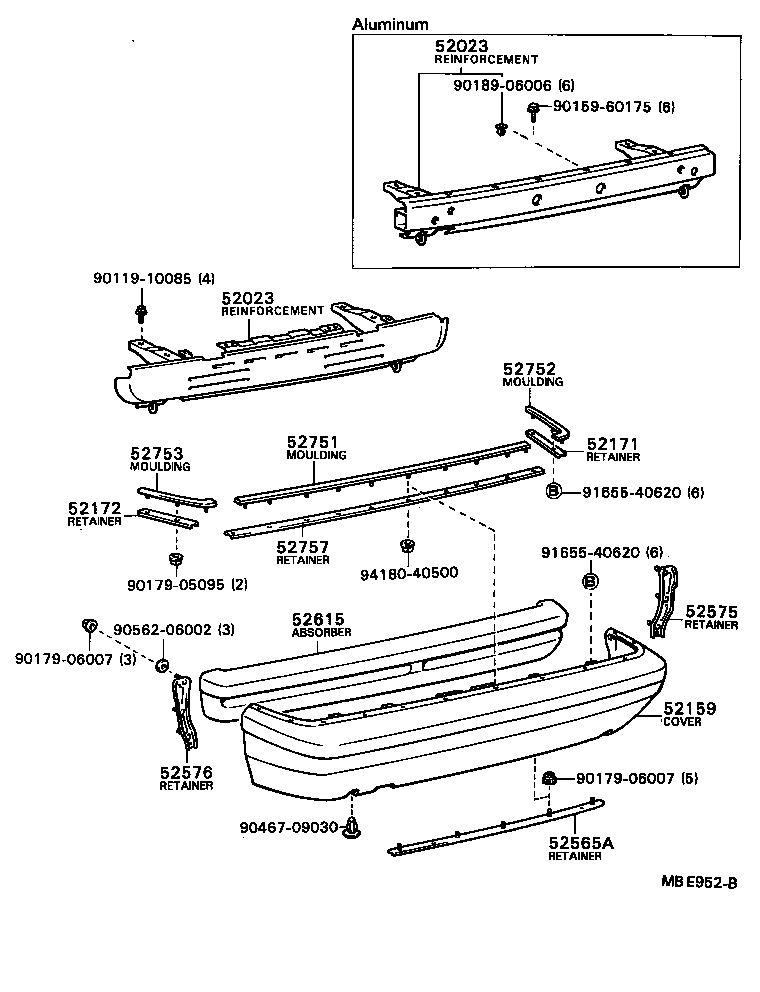

Figure MBC398C MBC398C 1981-02 → 1983-02 Figure MBE952B MBE952B 1983-02 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52159 Cover, Rear Bumper
52171 Retainer, Rear Bumper Side, RH
52172 Retainer, Rear Bumper Side, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
52751 Moulding, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
52757 Retainer, Rear Bumper Moulding, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
