Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 2 illustrations

Illustrations

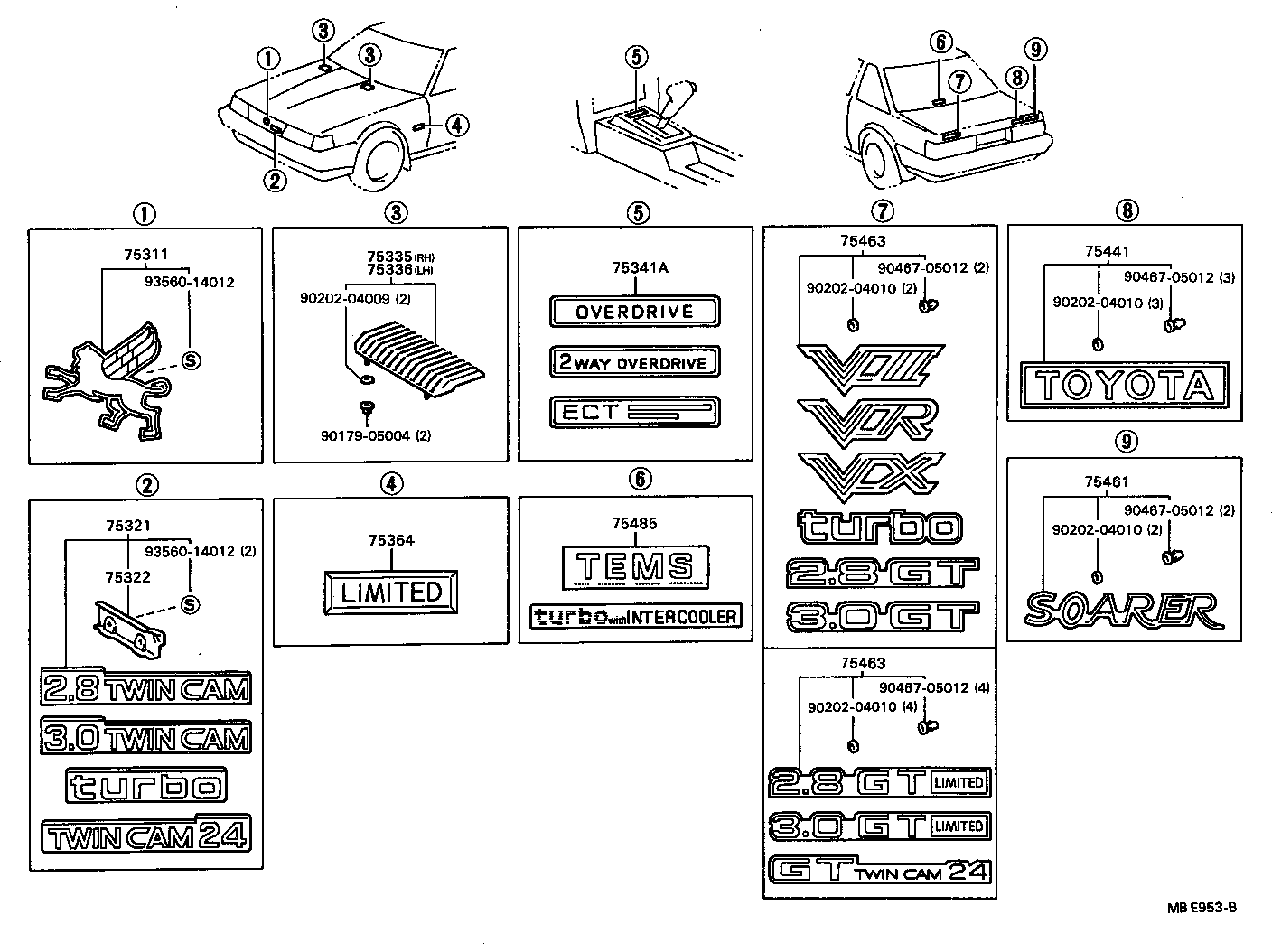

Figure MBC439D MBC439D 1981-02 → 1983-02 Figure MBE953B MBE953B 1983-02 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75335 Ornament, Hood Relief, RH
75336 Ornament, Hood Relief, LH
75341 Plate, Instrument Panel Name, NO.1
75341A Plate, Console Box Name, NO.1
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
