Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

18 part groups · 2 illustrations

Illustrations

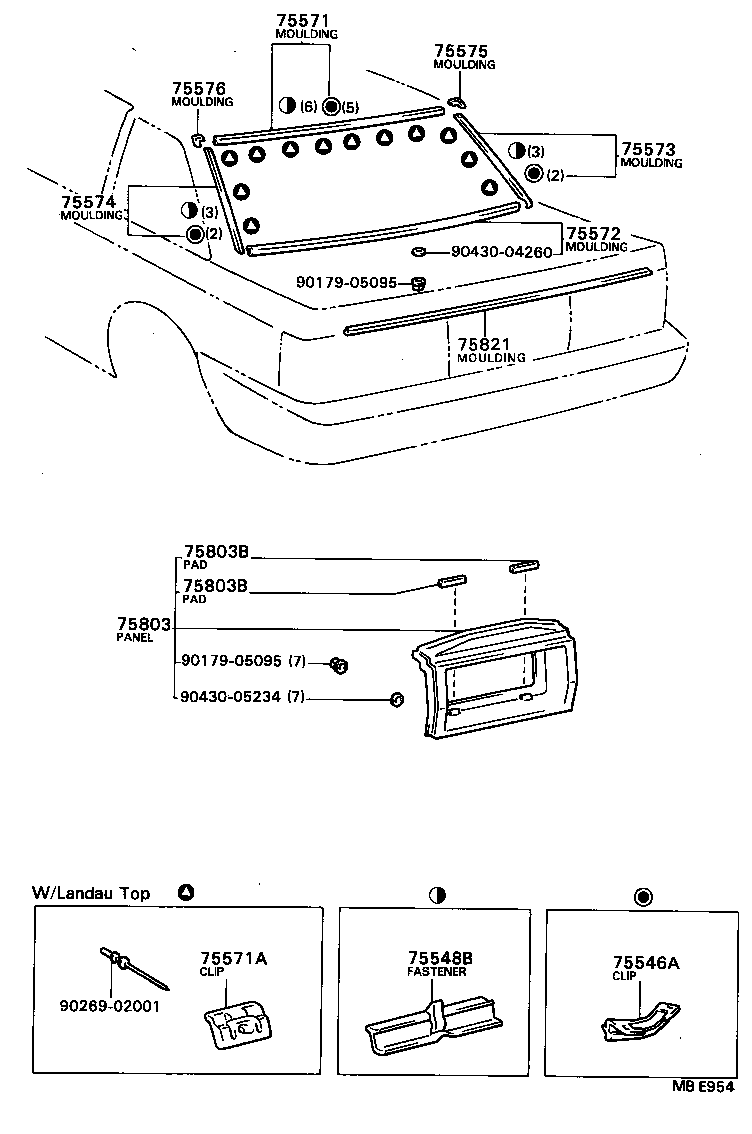

Figure MBC442C MBC442C 1981-02 → 1983-02 Figure MBE954 MBE954 1983-02 → —

Part groups

PNCDescription
75546A Clip, Back Window Outside Moulding
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75571A Clip(FOR BACK WINDOW MOULDING SET)
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75803 Panel Sub-assy, Body Lower Back Finish Center
75803A Pad, Lower Back Panel Moulding, NO.1
75803B Pad, Lower Back Panel Moulding, NO.2
75821 Moulding, Luggage Compartment Door Back
75841 Moulding, Body Lower Back Panel, RH
75842 Moulding, Body Lower Back Panel, LH
75848A Seal, Lower Back Panel Moulding
76845 Cover, Lower Back Panel Moulding, RH
76846 Cover, Lower Back Panel Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
