Toyota Soarer
1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan
Discontinued model
Data version 1986-06

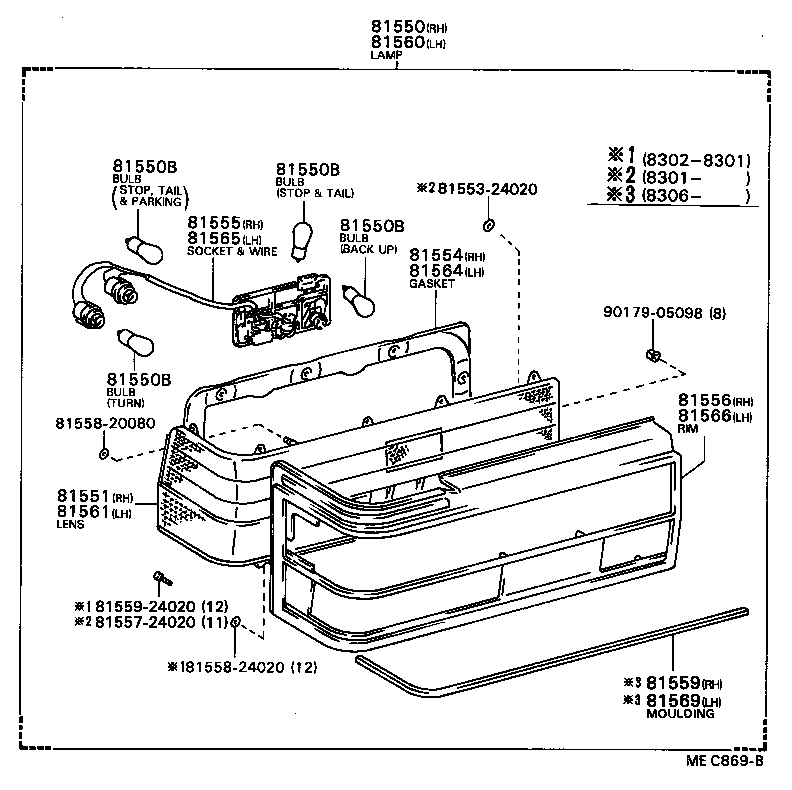

Rear Combination Lamp
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81553 | Bracket, Rear Combination Lamp, NO.1 RH |
| 81553A | Bracket, Rear Combination Lamp, NO.2 RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555A | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81556 | Rim, Rear Combination Lamp, RH |
| 81557B | Protector, Rear Combination Lamp, RH |
| 81559 | Moulding, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81563 | Bracket, Rear Combination Lamp, NO.1 LH |
| 81563A | Bracket, Rear Combination Lamp, NO.2 LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565A | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81566 | Rim, Rear Combination Lamp, LH |
| 81567B | Protector, Rear Combination Lamp, LH |
| 81569 | Moulding, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
