Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 7 illustrations

Illustrations

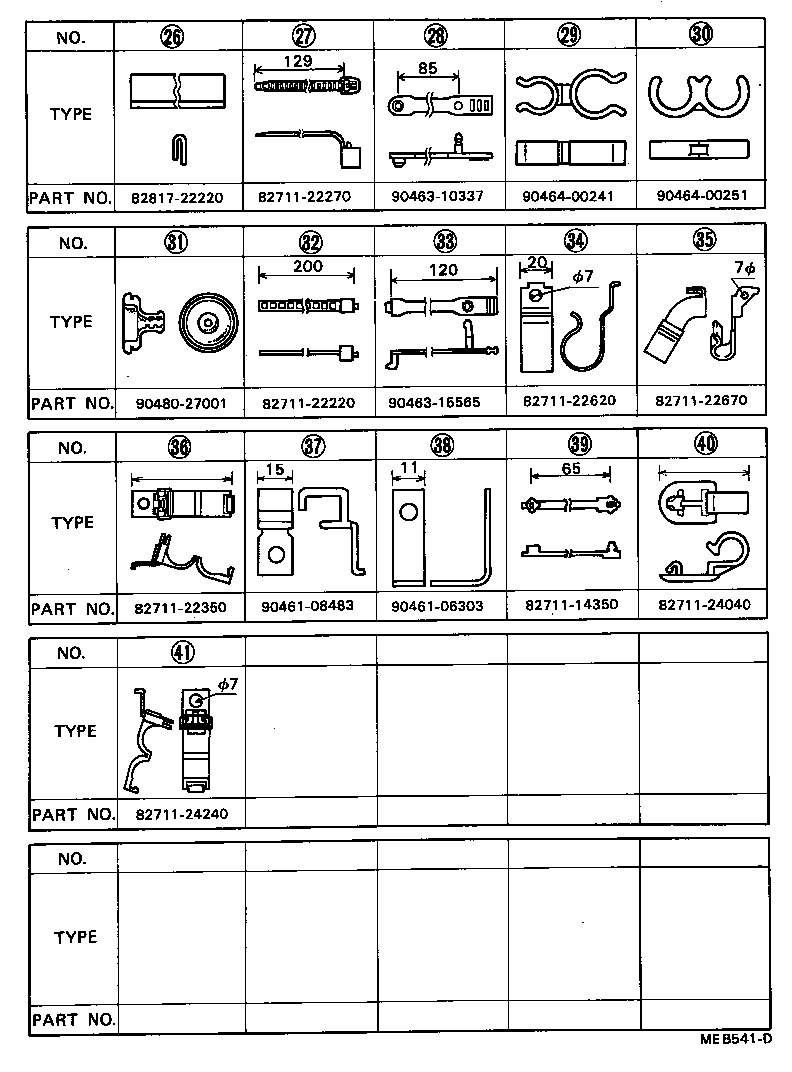

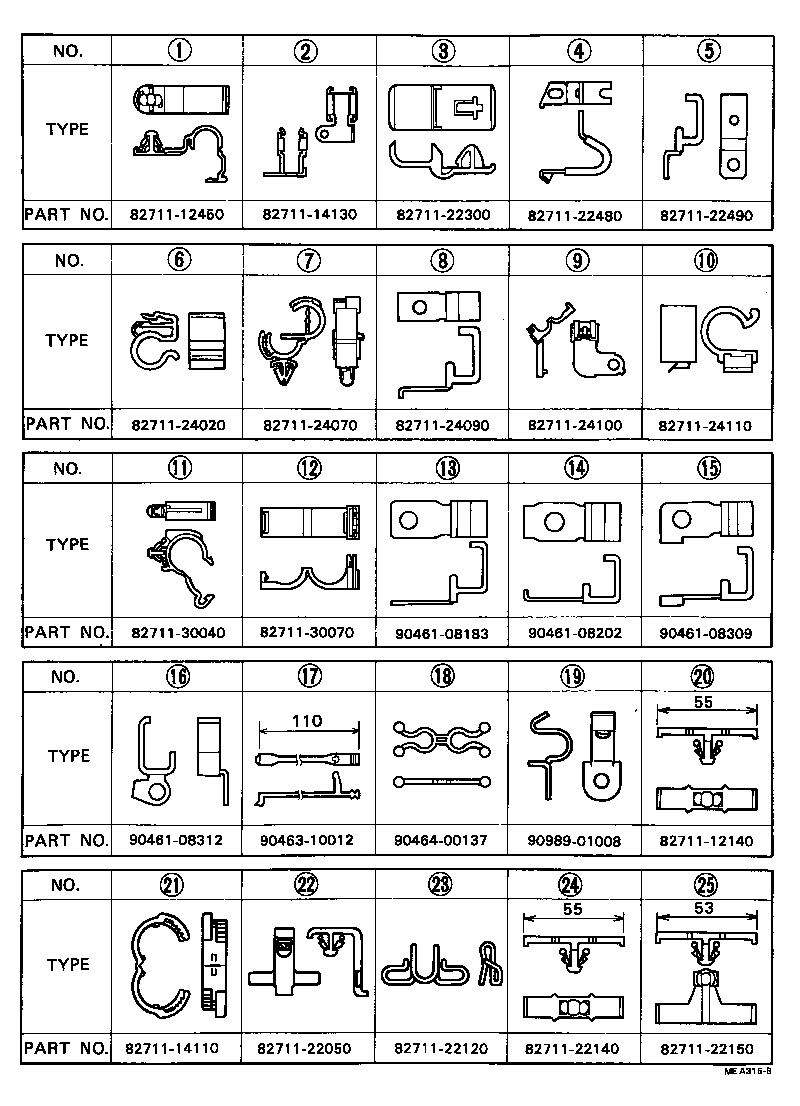

Figure MEA313I MEA313I 1981-02 → — Figure MEA314B MEA314B 1981-02 → — Figure MEB855A MEB855A 1981-02 → — Figure MEA315B MEA315B 1981-02 → — Figure MEB541D MEB541D 1981-02 → — Figure MEA316C MEA316C 1981-02 → — Figure MEE230B MEE230B 1981-02 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82131 Wire, Cowl
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH

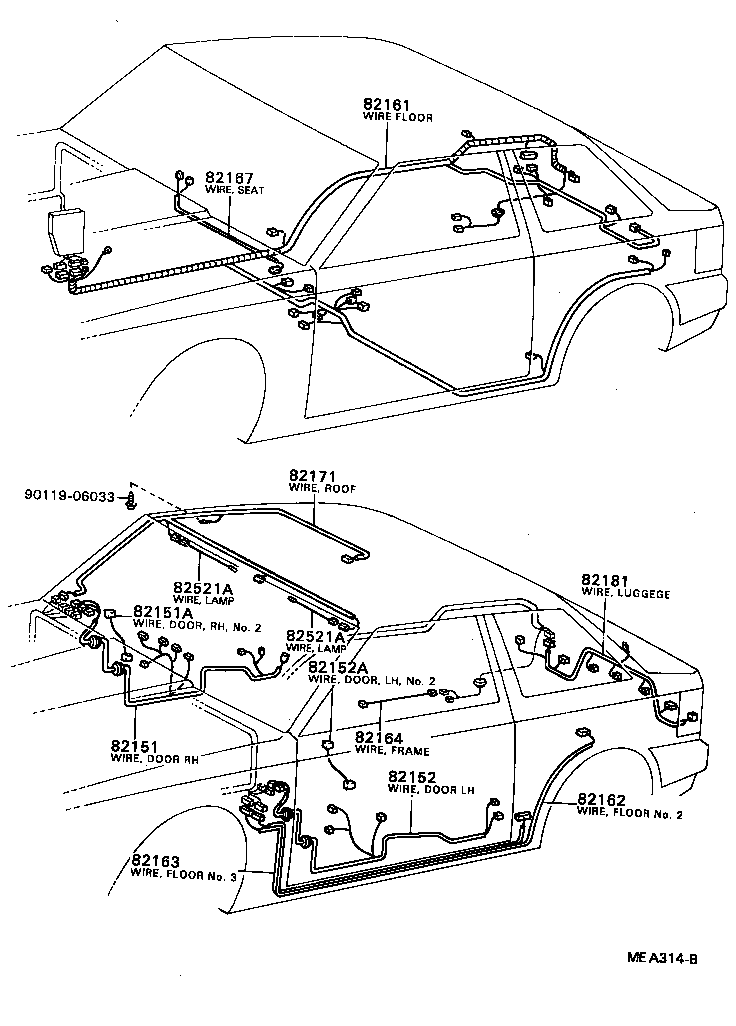

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82241C Wire, Relay
82374 Wire, Washer
82375A Wire, Wiper Motor
82521A Wire, Vanity Lamp
82670 Block Assy, Junction, NO.1
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2

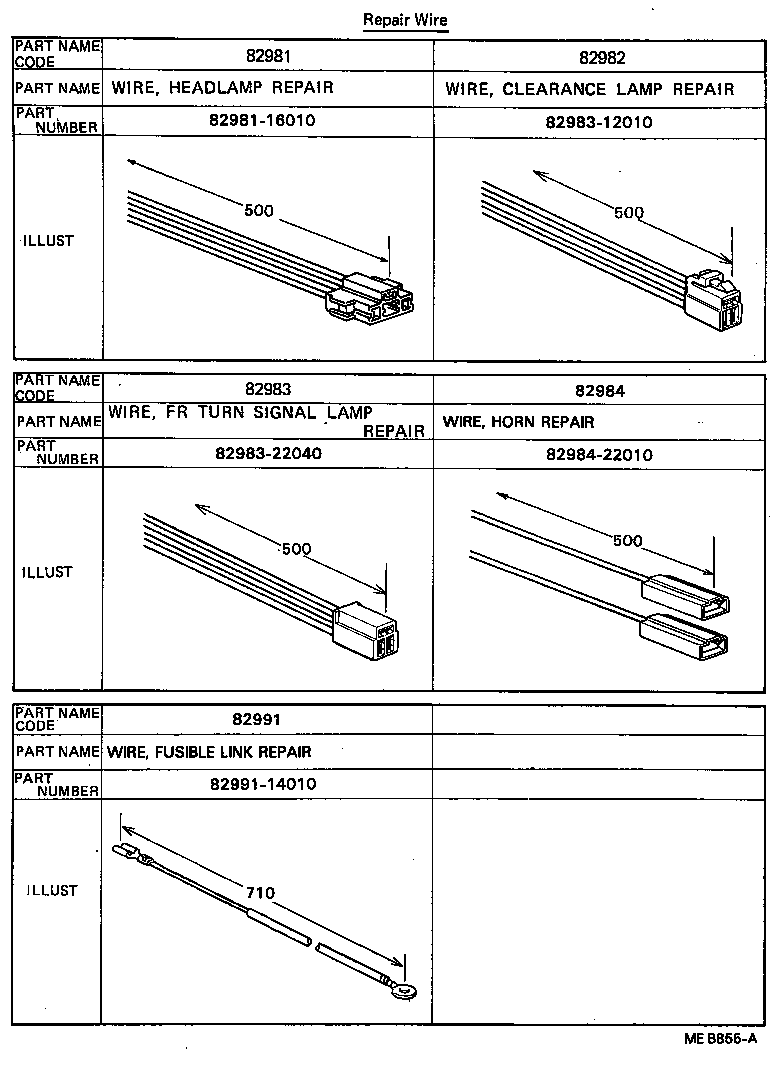

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
