Toyota Soarer
1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan
Discontinued model
Data version 1986-06

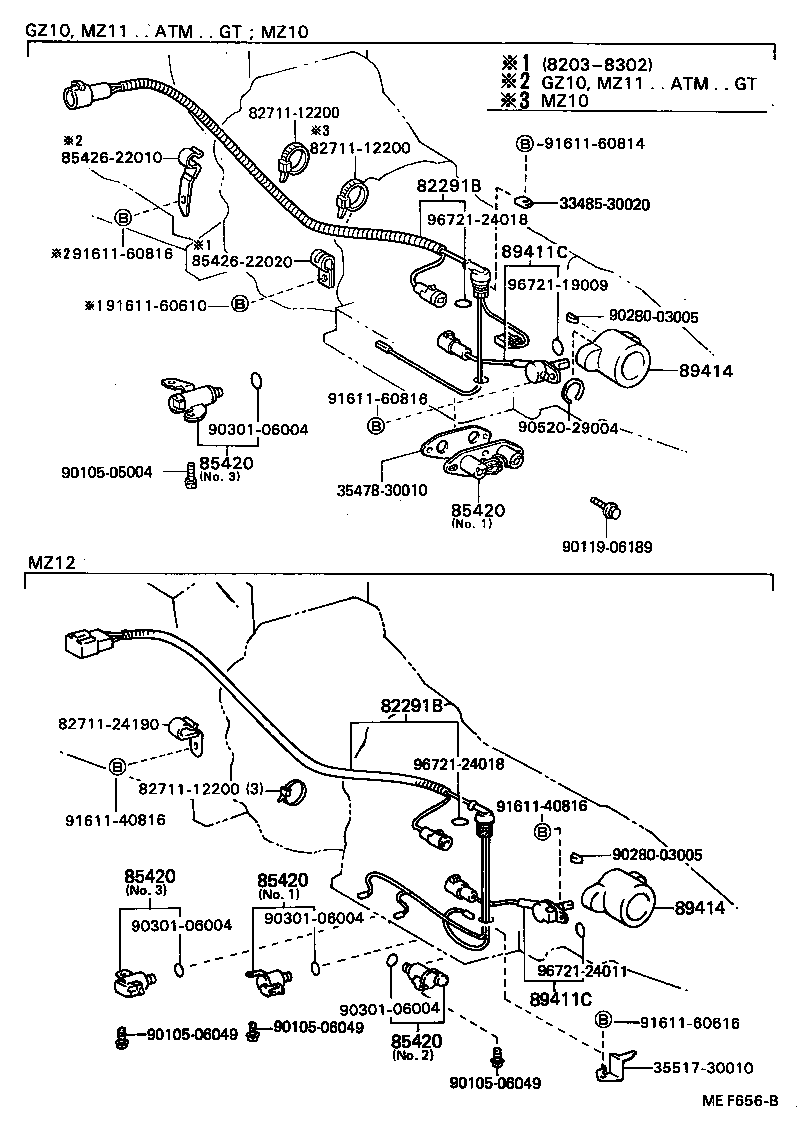

Electronic Controlled Transmission
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82291B | Wire, TO Solenoid (FOR TRANSMISSION) |
| 84722E | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89530 | Computer Assy, Transmission Control |
| 89539 | Bracket, Transmission Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
