Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 2 illustrations

Illustrations

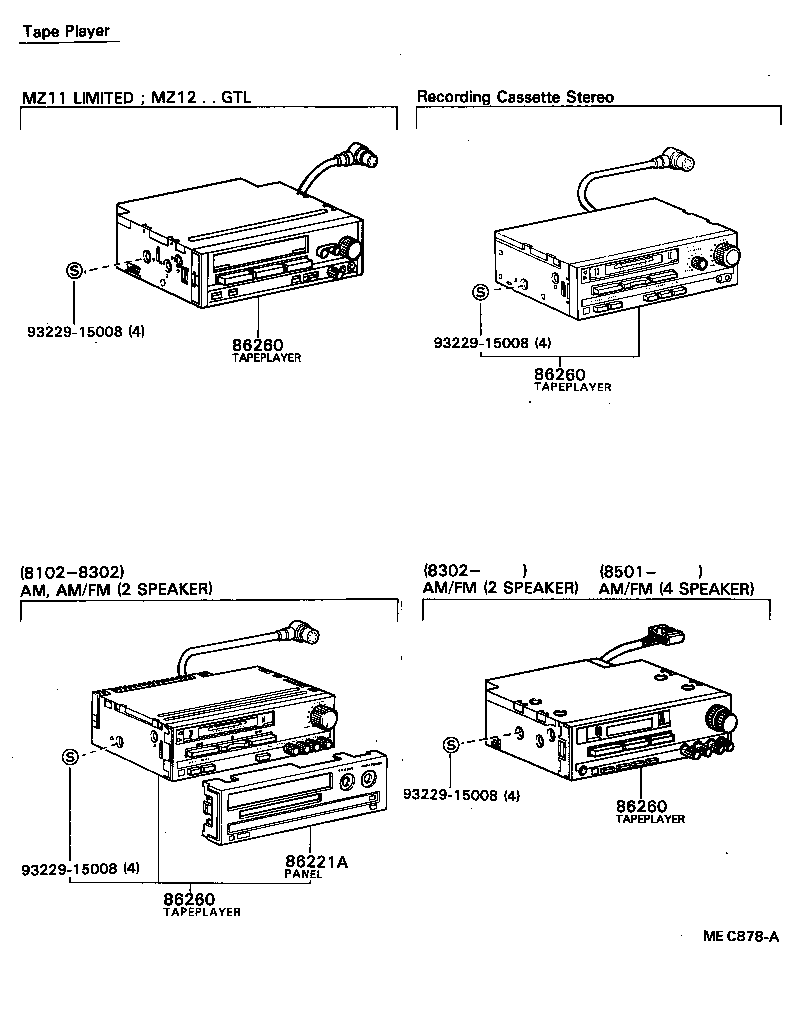

Figure MEA336E MEA336E 1981-02 → — Figure MEC878A MEC878A 1981-02 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86012 Parts Set, Radio Setting
86120 Receiver Assy, Radio
86203C Wire, Tape Player
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86260 Tape Player Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
