Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

7 part groups · 3 illustrations

Illustrations

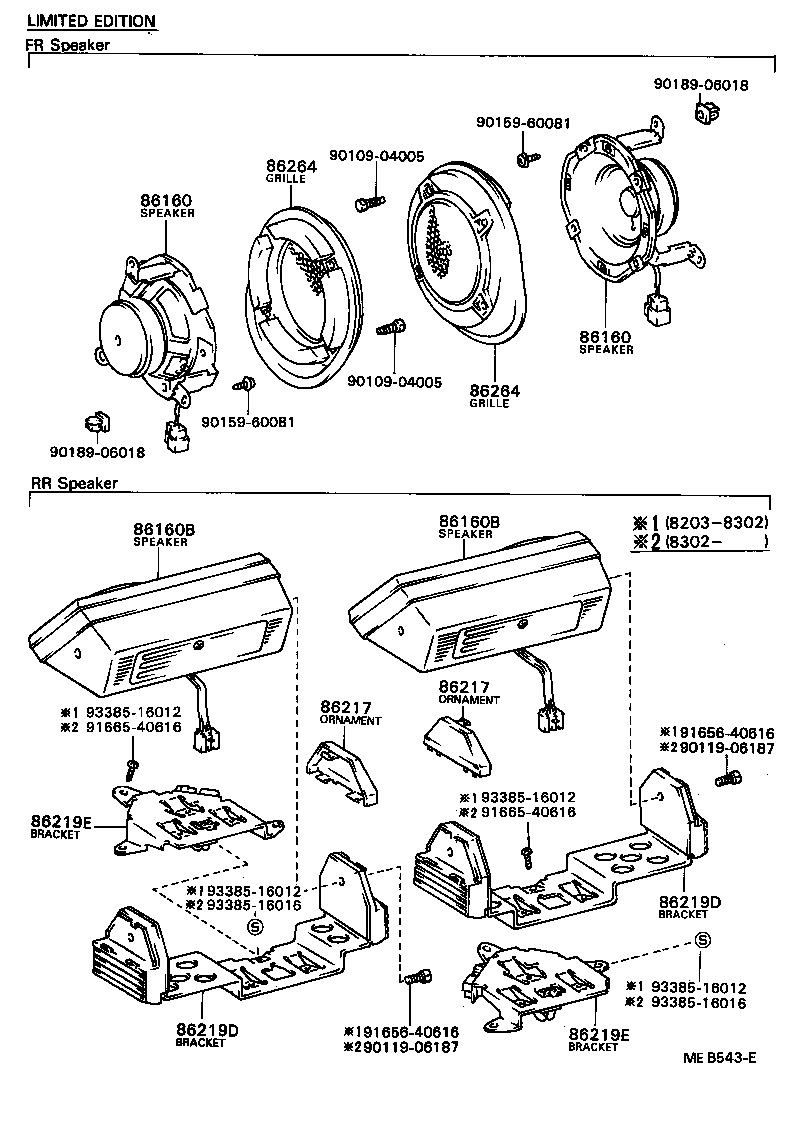

Figure MEA337B MEA337B 1981-02 → — Figure MEB543E MEB543E 1982-03 → 1985-01 Figure MEB543E MEB543E 1985-01 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160C Speaker Set, Rear
86217 Ornament, Speaker Box
86219D Bracket, Speaker, Rear NO.1
86219E Bracket, Speaker, Rear NO.2
86264 Grille, Speaker, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
