Factory parts data · Europe

Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 2 illustrations

Illustrations

Figure MEA340B

MEA340B 1981-02 → —

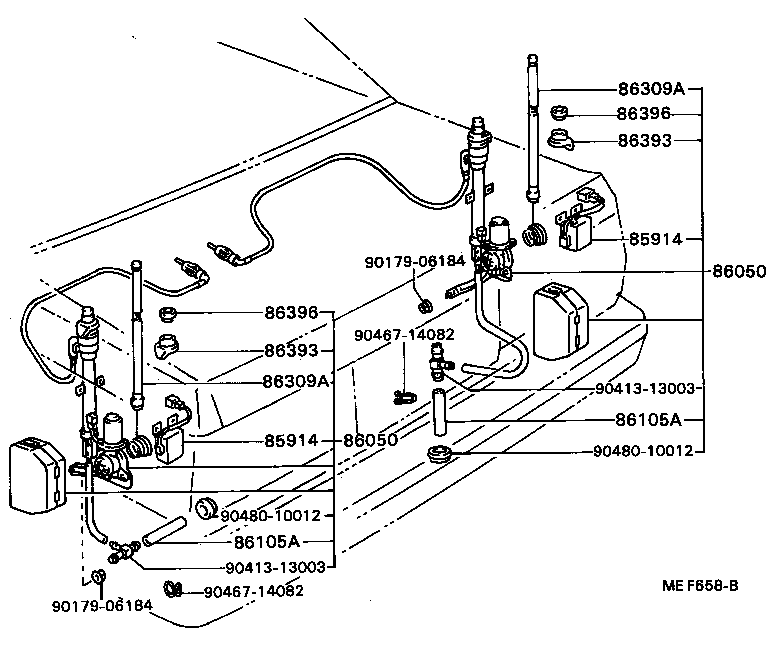

Figure MEF658B

MEF658B 1985-01 → —

Part groups

PNC	Description
85914	Relay, Motor Antenna Control
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86105A	Hose Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86309A	Pole Sub-assy, Motor Antenna
86393	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
