Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

3 part groups · 4 illustrations

Illustrations

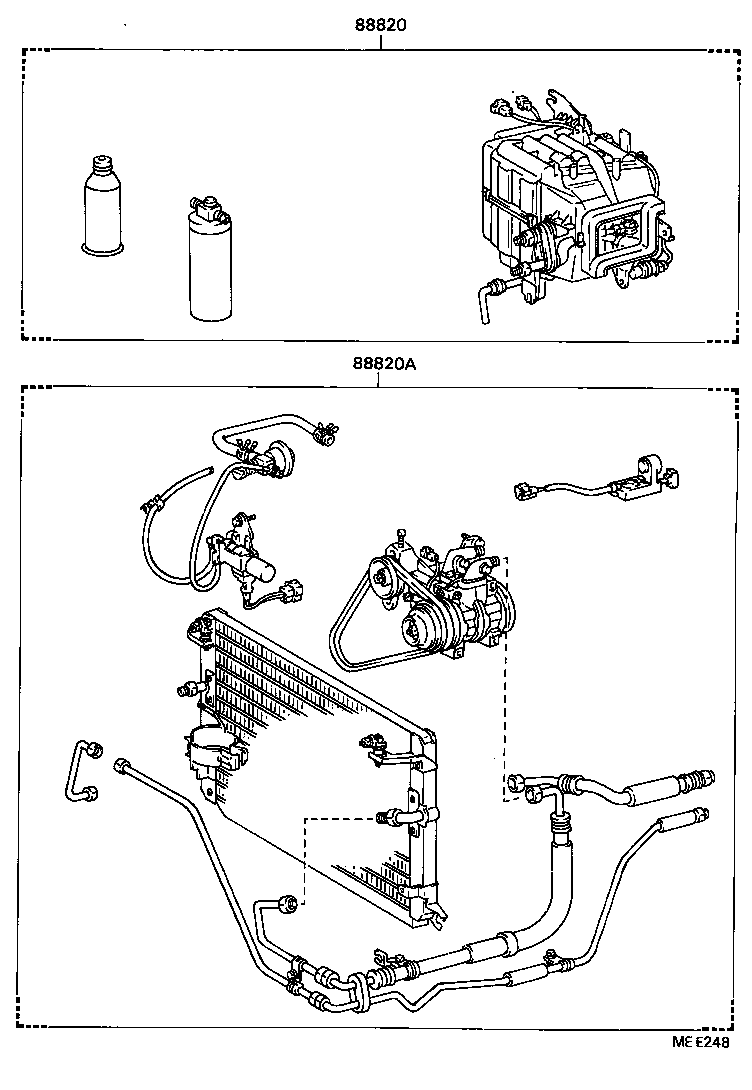

Figure MEA610 MEA610 1981-02 → 1983-08 Figure MEA610 MEA610 1981-07 → 1984-01 Figure MEE248 MEE248 1983-08 → — Figure MEE248 MEE248 1984-01 → —

Part groups

PNCDescription
88300 Cooler & Accessory Assy
88820 Air Conditioner & Accessory Sub-assy, NO.1
88820A Air Conditioner & Accessory Sub-assy, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
