Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 2 illustrations

Illustrations

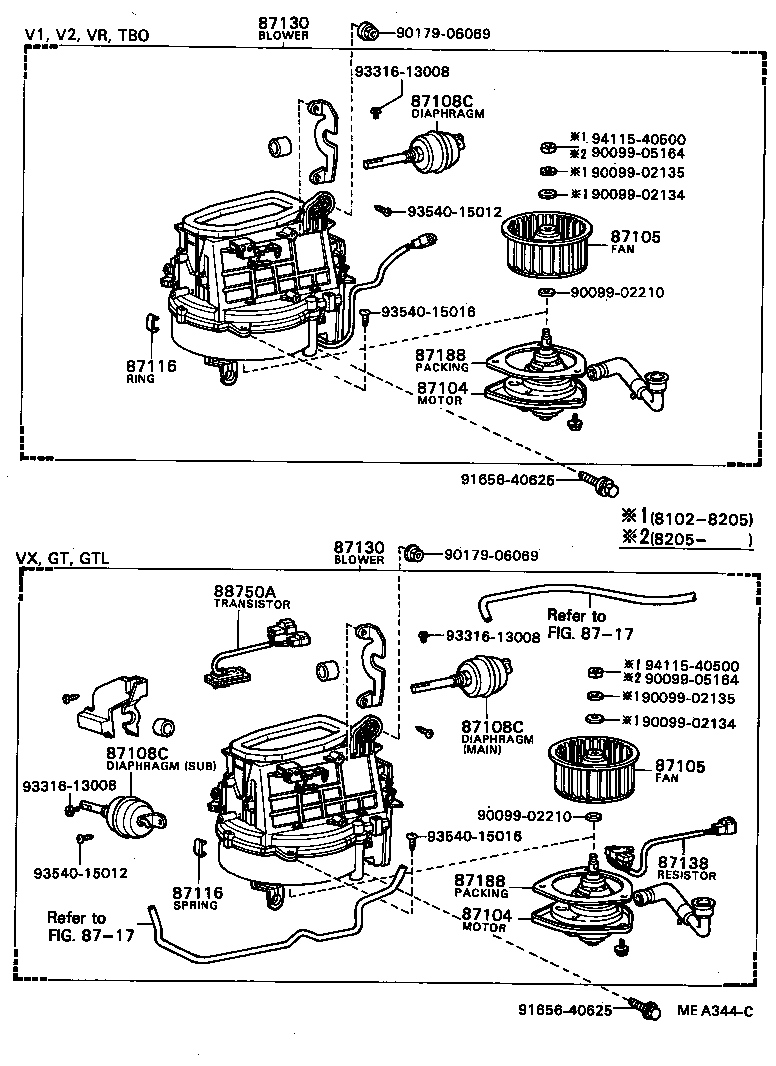

Figure MEA343A MEA343A 1981-02 → — Figure MEA344C MEA344C 1981-02 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87108C Diaphragm Sub-assy, Heater Blower Damper
87108D Diaphragm Sub-assy, Heater Radiator Damper
87116 Spring, Heater Case Fastening
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87188 Packing, Heater Blower Motor
87660 Servo Assy, Air Conditioner
88750A Transistor Assy, Blower Resistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
