Toyota Soarer
1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan
Discontinued model
Data version 1986-06
Heating & Air Conditioning - Cooler Unit

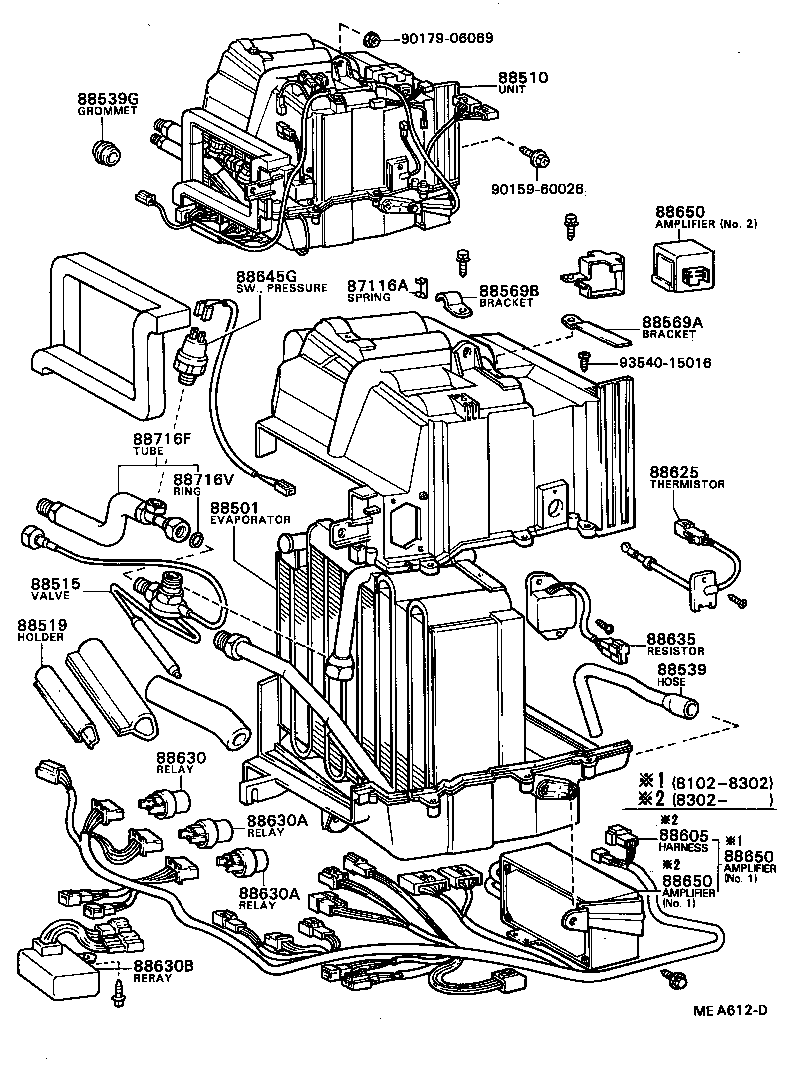

25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88519 | Holder, Remote Bulb |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88569 | Clamp (FOR COOLER RELAY) |
| 88569A | Clamp, NO.1(FOR COOLER WIRING HARNESS) |
| 88569B | Clamp, NO.2(FOR COOLER WIRING HARNESS) |
| 88578A | Packing, Cooler Stabilizer Amplifier |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88610 | Switch Assy, Cooler Control |
| 88611B | Plate, Cooler Control Switch |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88630B | Relay Assy, Cooler |
| 88635 | Resistor, Cooler Unit Blower |
| 88645G | Switch, Pressure |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88688A | Bracket, Cooler Stabilizer Amplifier |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88716V | Ring, O(FOR COOLER UNIT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
