Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 3 illustrations

Illustrations

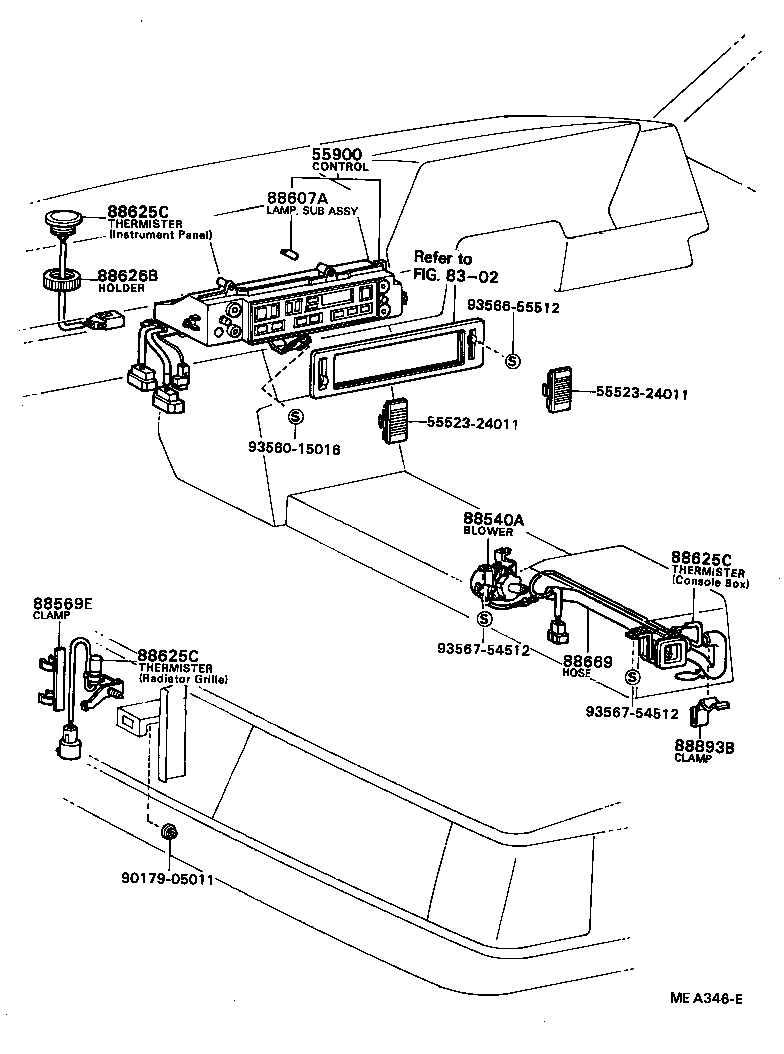

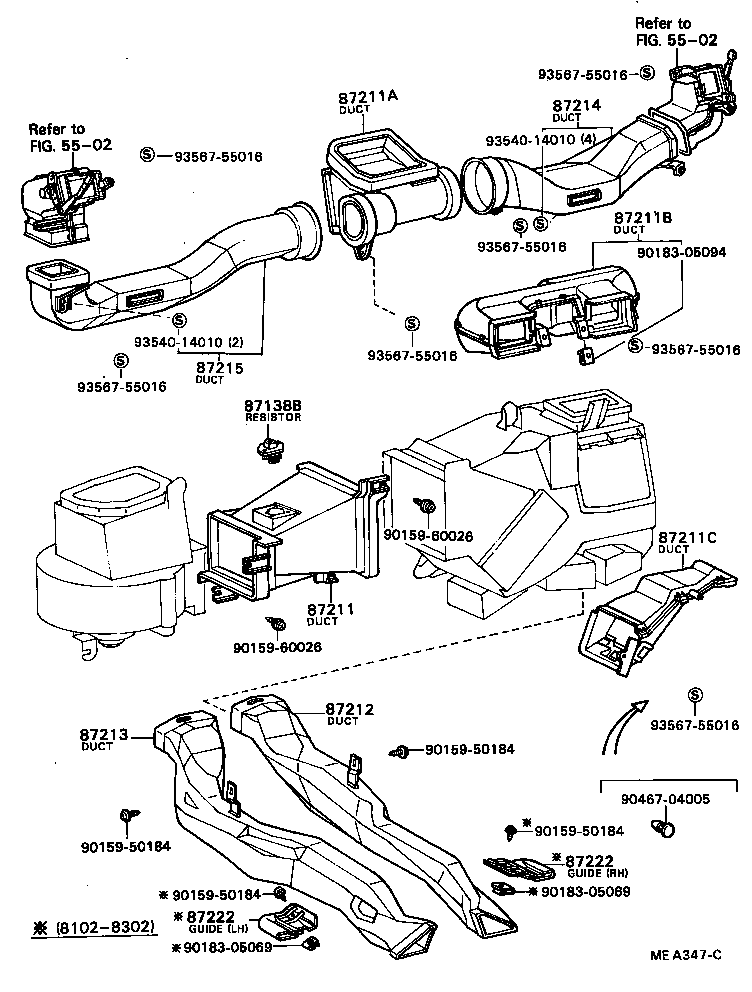

Figure MEA345B MEA345B 1981-02 → — Figure MEA346E MEA346E 1981-02 → — Figure MEA347C MEA347C 1981-02 → —

Part groups

PNCDescription
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87222 Guide, Air Duct, Rear
88540A Blower Assy, Cooler
88569E Clamp (FOR COOLER THERMISTOR)
88607A Lamp Sub-assy, Indicator
88625C Thermistor, Cooler
88626B Holder, Thermistor
88669 Hose, Cooler Air
88681A Switch, Heater Control Vacuum, NO.1
88893B Clamp (FOR COOLER AIR HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
