Toyota Soarer
1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan
Discontinued model
Data version 1988-05

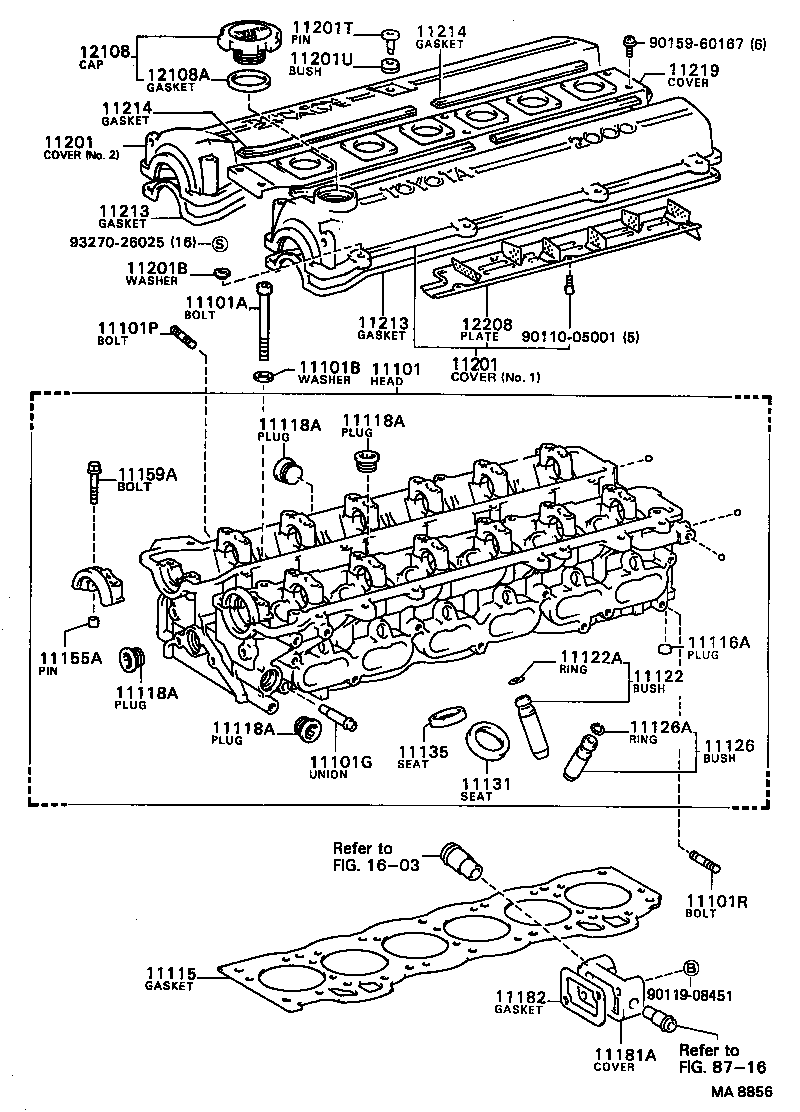

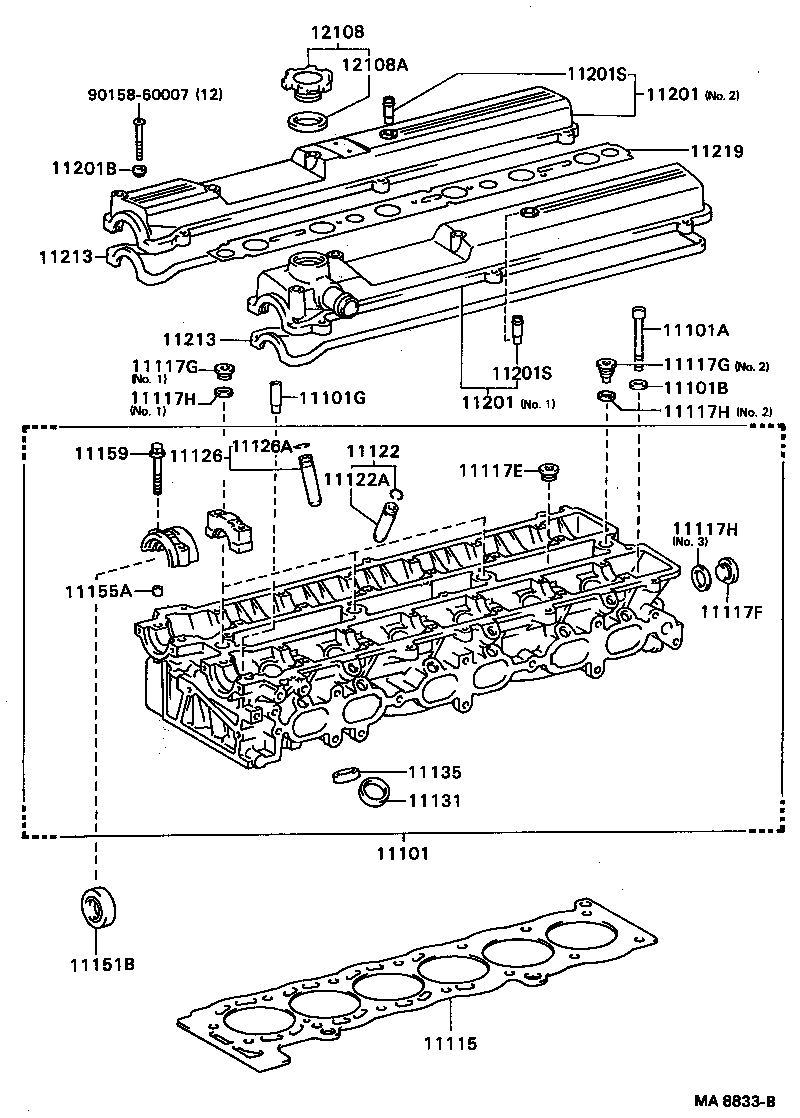

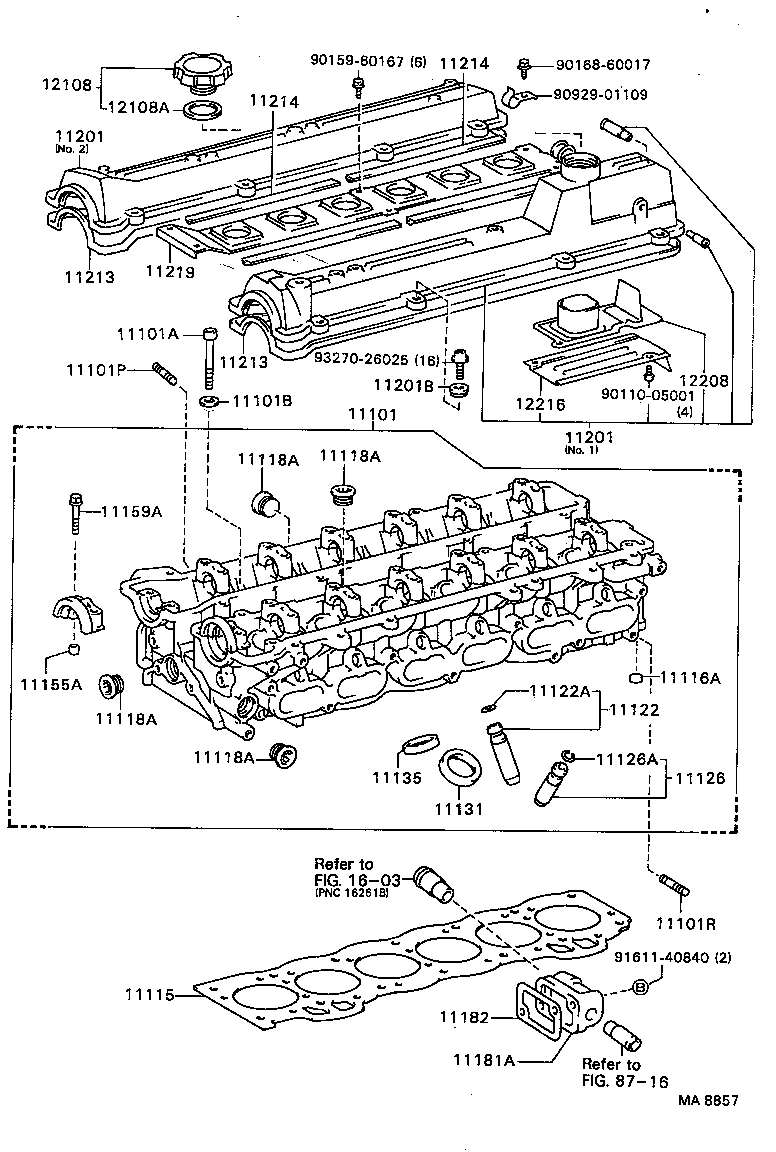

Cylinder Head
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101G | Union(FOR CYLINDER HEAD) |
| 11101P | Bolt, Stud(FOR DISTRIBUTOR) |
| 11101R | Bolt, Stud(FOR FUEL PIPE) |
| 11103 | Housing Sub-assy, Camshaft |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11116A | Plug, Tight, NO.1 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117G | Plug, W/Head Straight Screw, NO.3 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11118A | Plug, Straight, NO.1 |
| 11118B | Plug, Straight, NO.2 |
| 11118C | Plug, Straight, NO.3 |
| 11118G | Pin, Slotted Spring, NO.1 |
| 11118H | Pin, Slotted Spring, NO.2 |
| 11122 | Bush, Intake Valve Guide |
| 11122A | Ring, Shaft Snap (FOR VALVE GUIDE BUSH) |
| 11126 | Bush, Exhaust Valve Guide |
| 11126A | Ring, Shaft Snap(FOR VALVE GUIDE BUSH) |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151B | Seal, Oil(FOR CAMSHAFT SETTING) |
| 11153 | Bolt, Stud(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER) |
| 11155 | Bolt, Stud(FOR HEAD TO CAMSHAFT HOUSING) |
| 11155A | Pin, Ring W/Head |
| 11159 | Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11181A | Cover, Cylinder Head, Rear |
| 11182 | Gasket, Cylinder Head Rear Plate |
| 11187 | Cover, Camshaft Housing, Rear |
| 11189 | Gasket, Camshaft Housing Rear Cover |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201F | Union(FOR POSITIVE CRANKCASE VENTILATION) |
| 11201S | Tube, Air |
| 11201T | Pin(FOR CYLINDER HEAD COVER) |
| 11201U | Bush(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11219 | Cover, Cylinder Head, NO.3 |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12208 | Plate Sub-assy, Ventilation Baffle |
| 12216 | Plate, Ventilation Baffle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
