Toyota Soarer
1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan
Discontinued model
Data version 1988-05

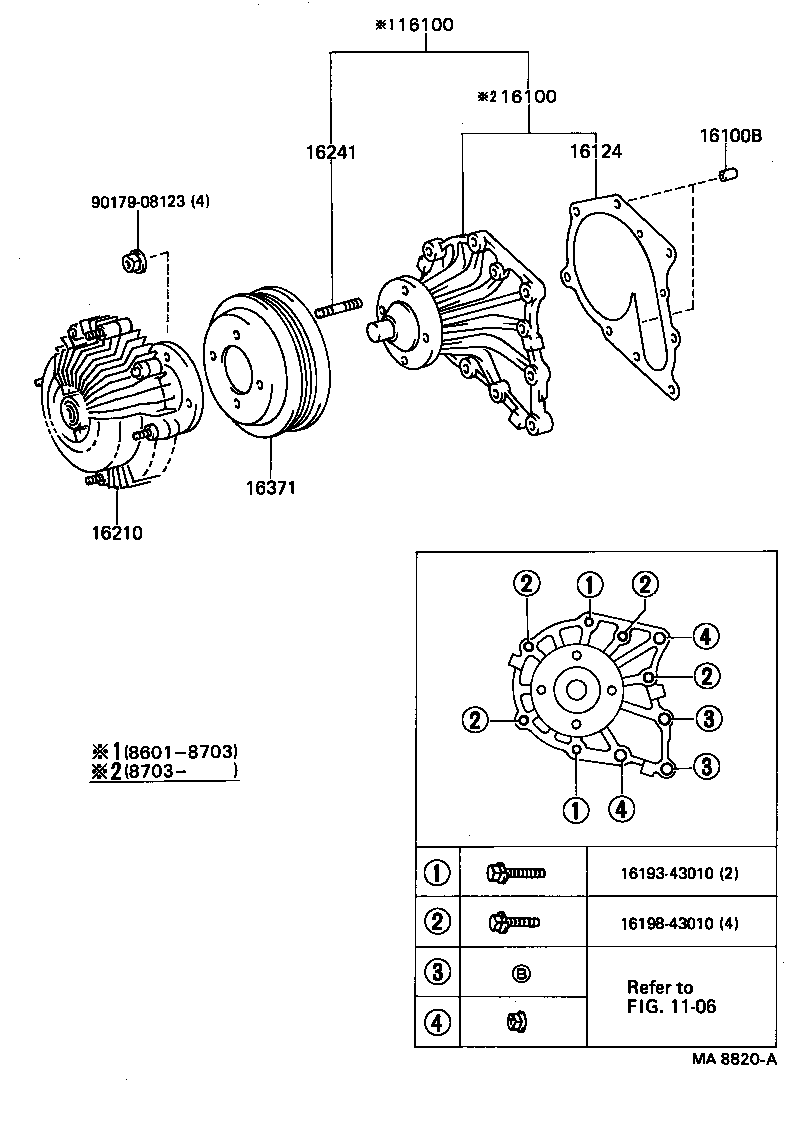

Water Pump
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16124 | Gasket, Water Pump Cover |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16210 | Coupling Assy, Fluid |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16258 | Gasket(FOR HEATER RETURN) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
