Toyota Soarer

1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 7 illustrations

Illustrations

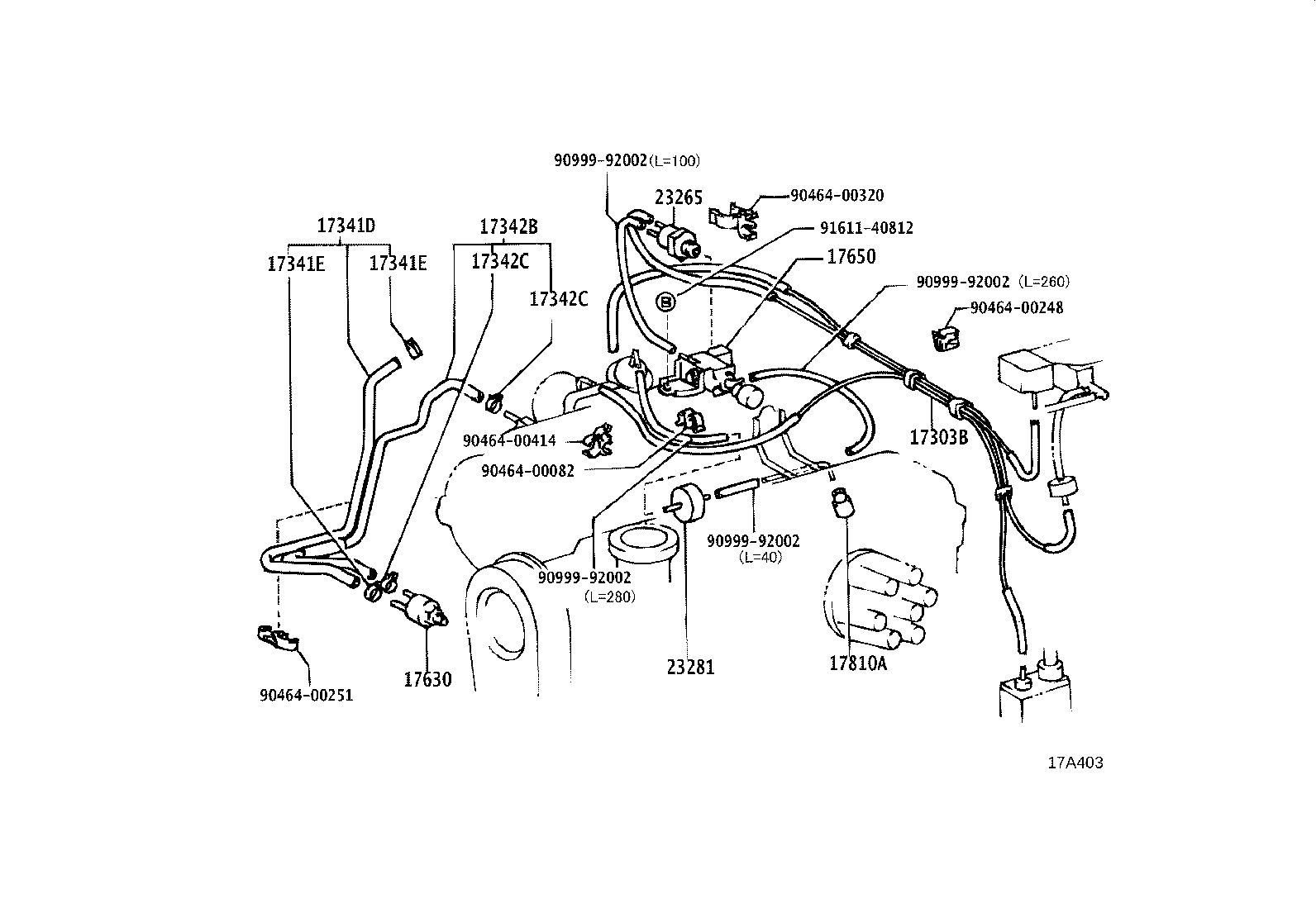

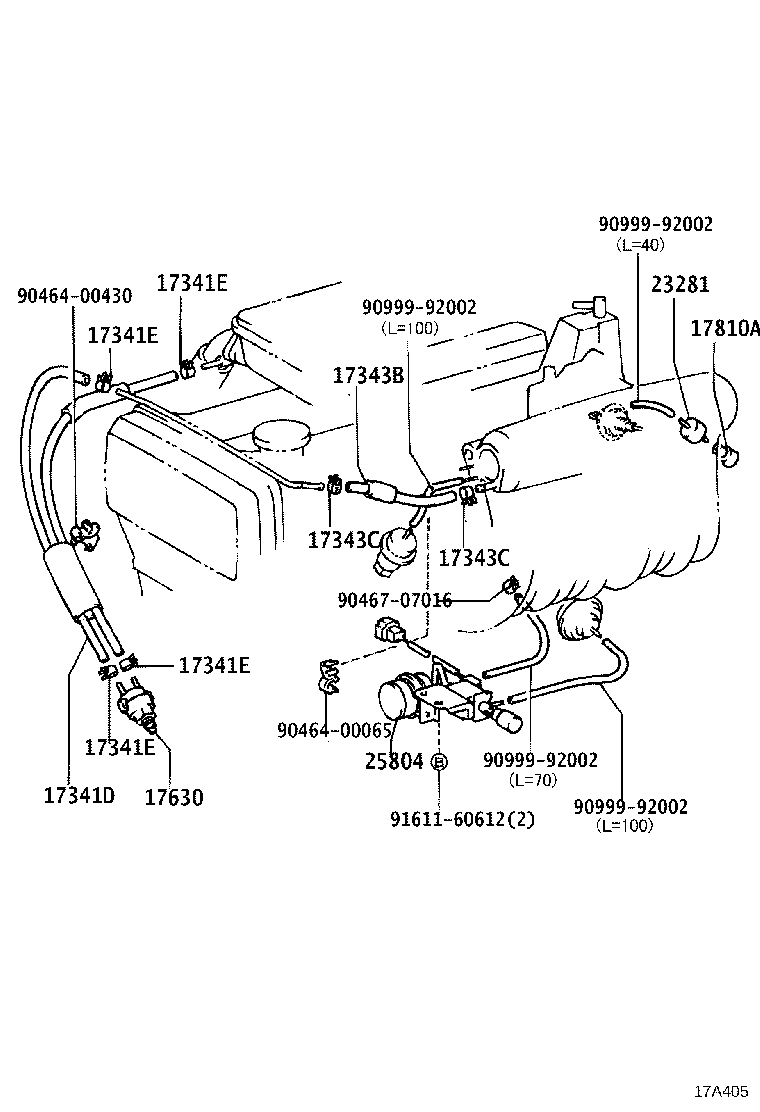

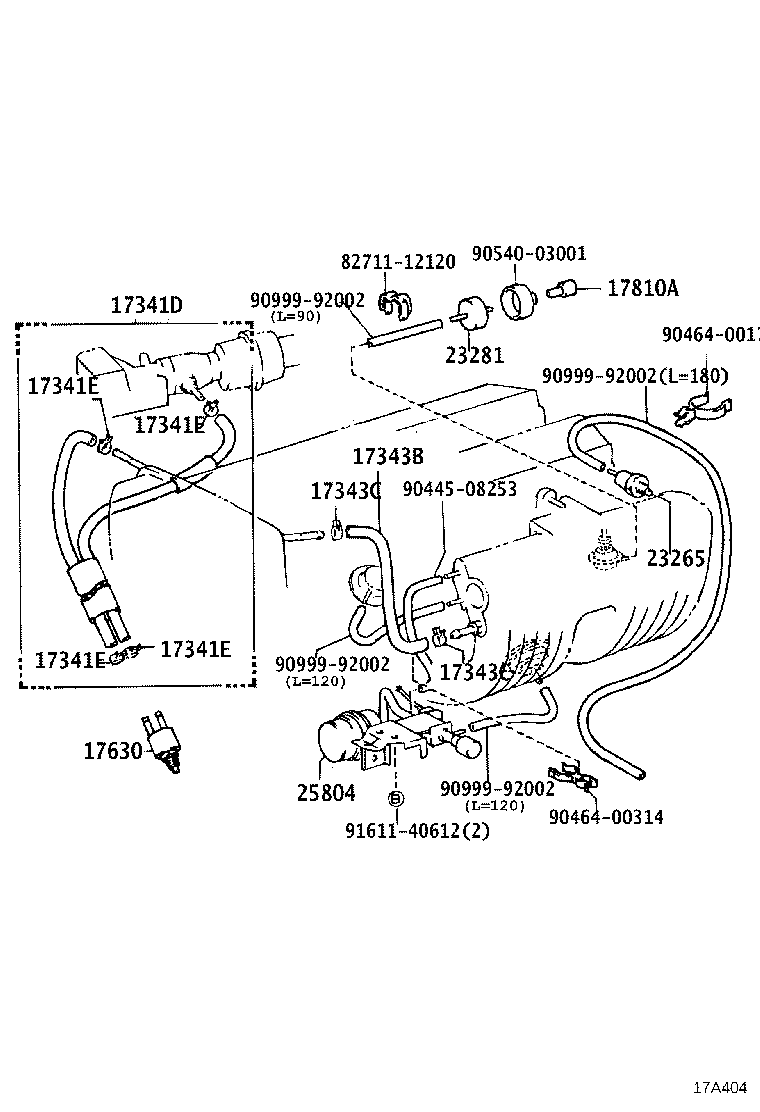

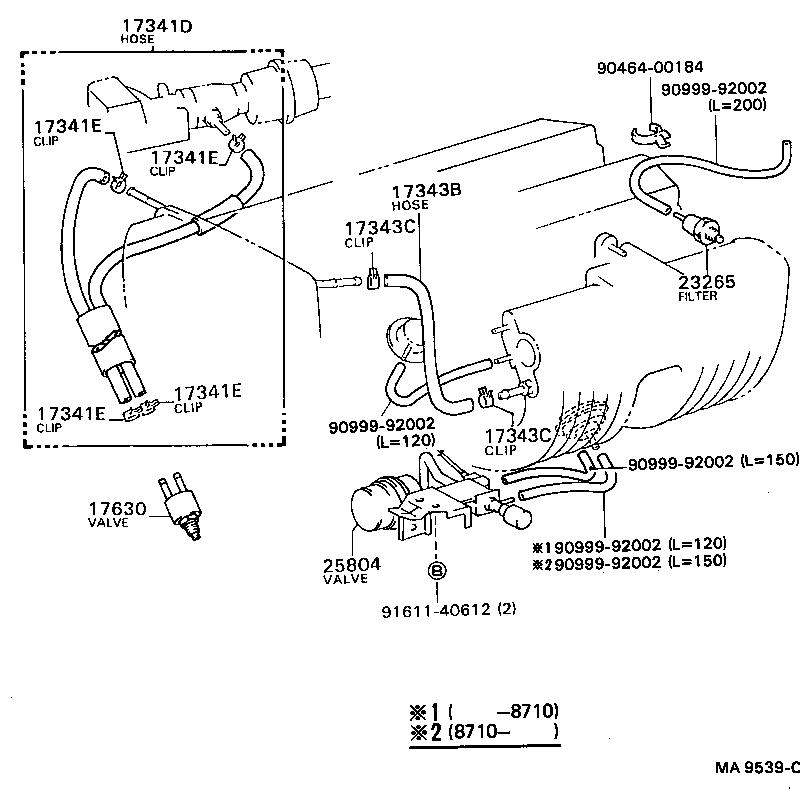

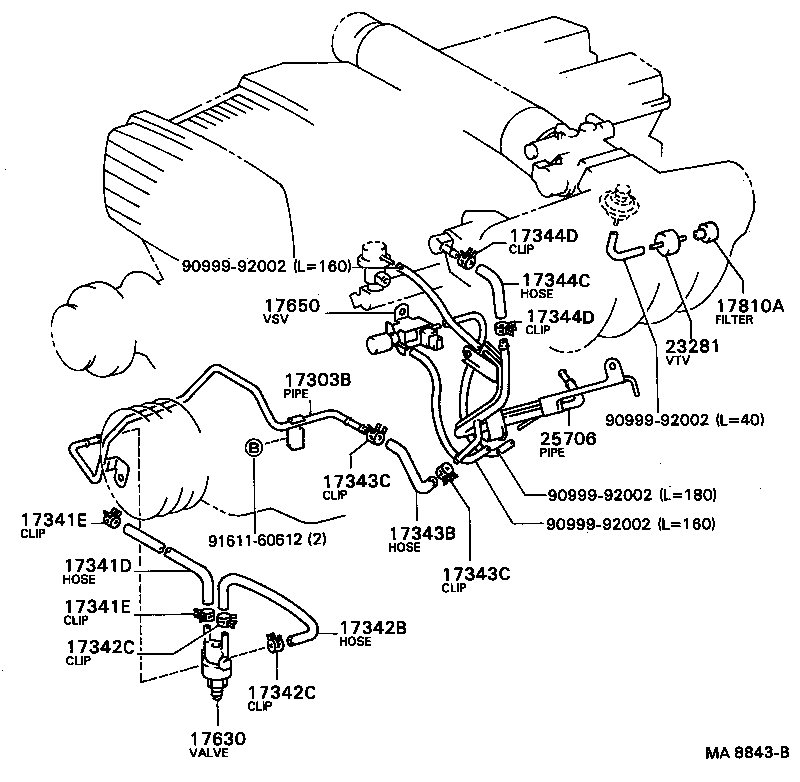

Figure MA9503A MA9503A 1986-01 → — Figure 17A403 17A403 1986-01 → — Figure 17A404 17A404 1986-01 → 1987-01 Figure MA9539C MA9539C 1987-01 → — Figure 17A405 17A405 1986-01 → — Figure MA9503A MA9503A 1986-01 → — Figure MA8843B MA8843B 1986-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
