Toyota Soarer
1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan
Discontinued model
Data version 1988-05

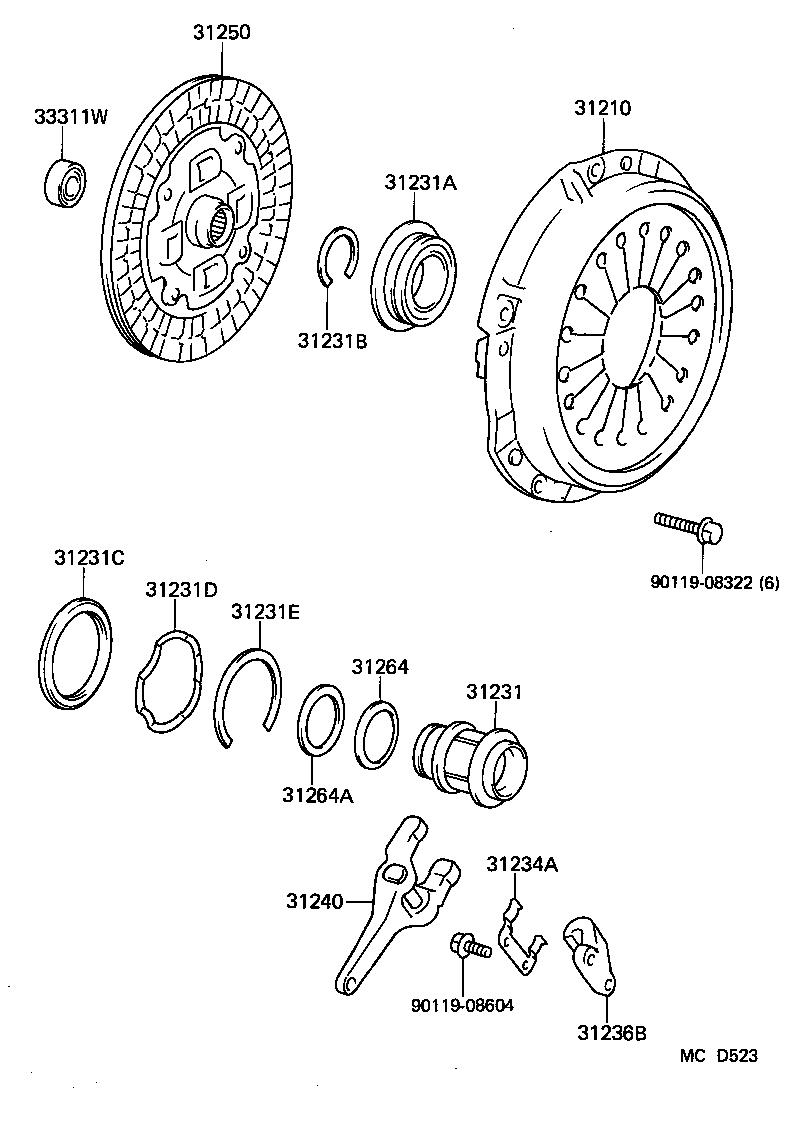

Clutch & Release Fork
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31210 | Cover Assy, Clutch |
| 31231 | Hub, Clutch Release Bearing |
| 31231A | Bearing, Ball(FOR CLUTCH RELEASE HUB) |
| 31231B | Ring, Snap(FOR CLUTCH RELEASE HUB) |
| 31231C | Washer, Plate(FOR CLUTCH RELEASE BEARING) |
| 31231D | Washer, Wave(FOR CLUTCH RELEASE BEARING) |
| 31231E | Ring, Shaft Snap(FOR CLUTCH RELEASE BEARING) |
| 31232 | Clip OR Spring, Release Bearing Hub |
| 31234A | Spring, Release Fork Support |
| 31236B | Support, Release Fork |
| 31240 | Fork Assy, Clutch Release |
| 31250 | Disc Assy, Clutch |
| 31264 | Spring, Clutch Thrust Cone |
| 31264A | Washer, Plate(FOR CLUTCH THRUST CONE SPRING) |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
