Toyota Soarer

1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 5 illustrations

Illustrations

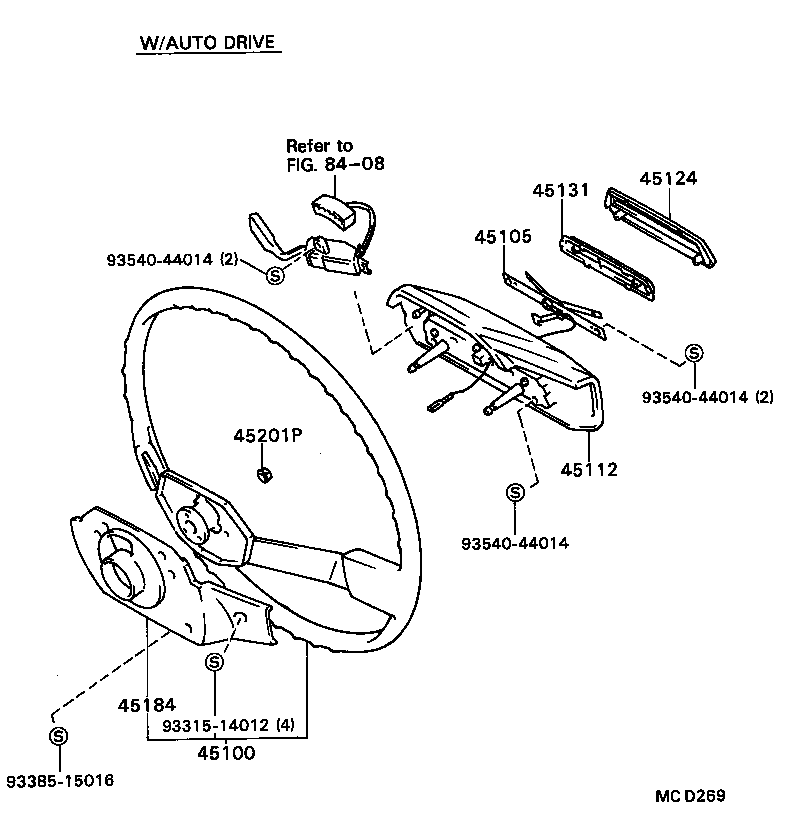

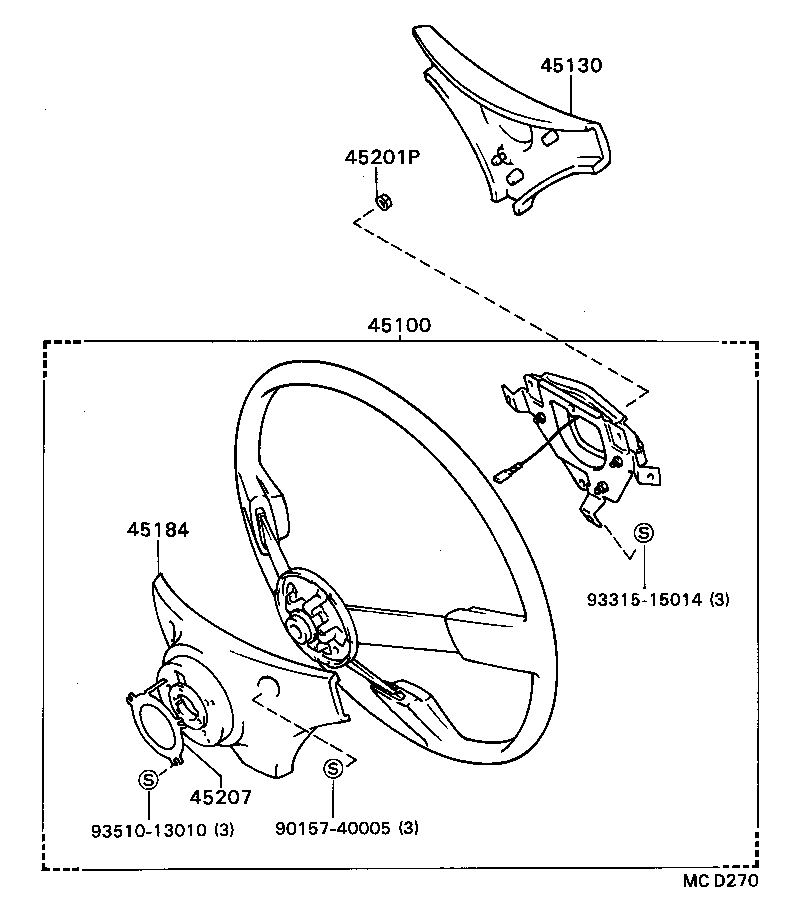

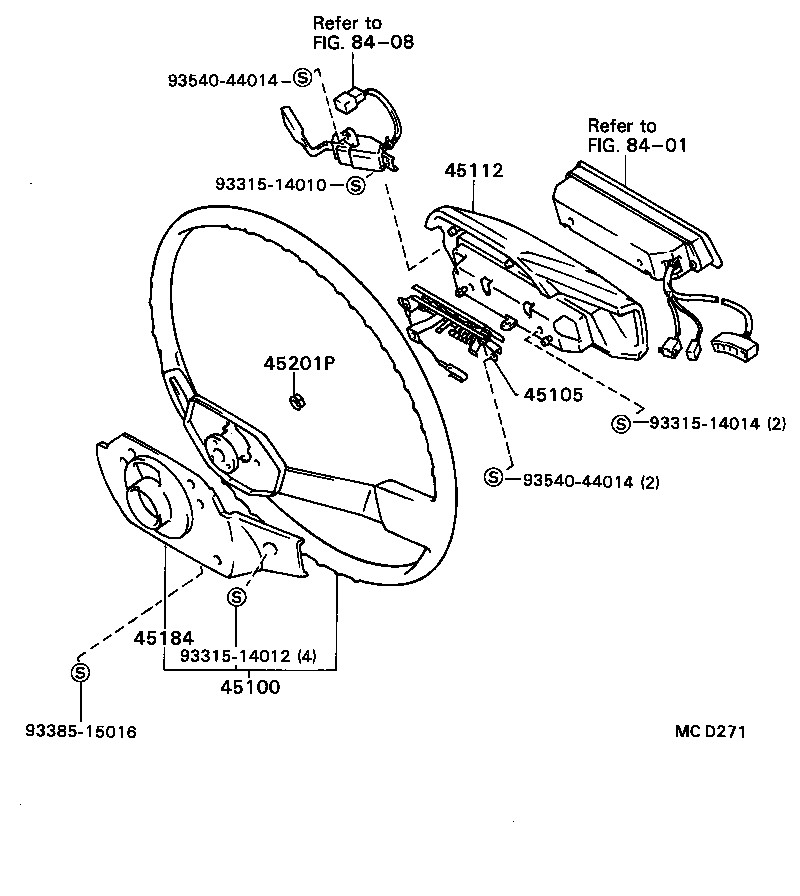

Figure MCD268 MCD268 1986-01 → — Figure MCD269 MCD269 1986-01 → — Figure MCD270 MCD270 1986-01 → — Figure MCD271 MCD271 1986-01 → — Figure MCD271 MCD271 1987-01 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45112 Pad, Steering Wheel
45124 Ornament, Steering Wheel Mark
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
