Toyota Soarer
1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan
Discontinued model
Data version 1988-05
Switch & Relay & Computer
86 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|

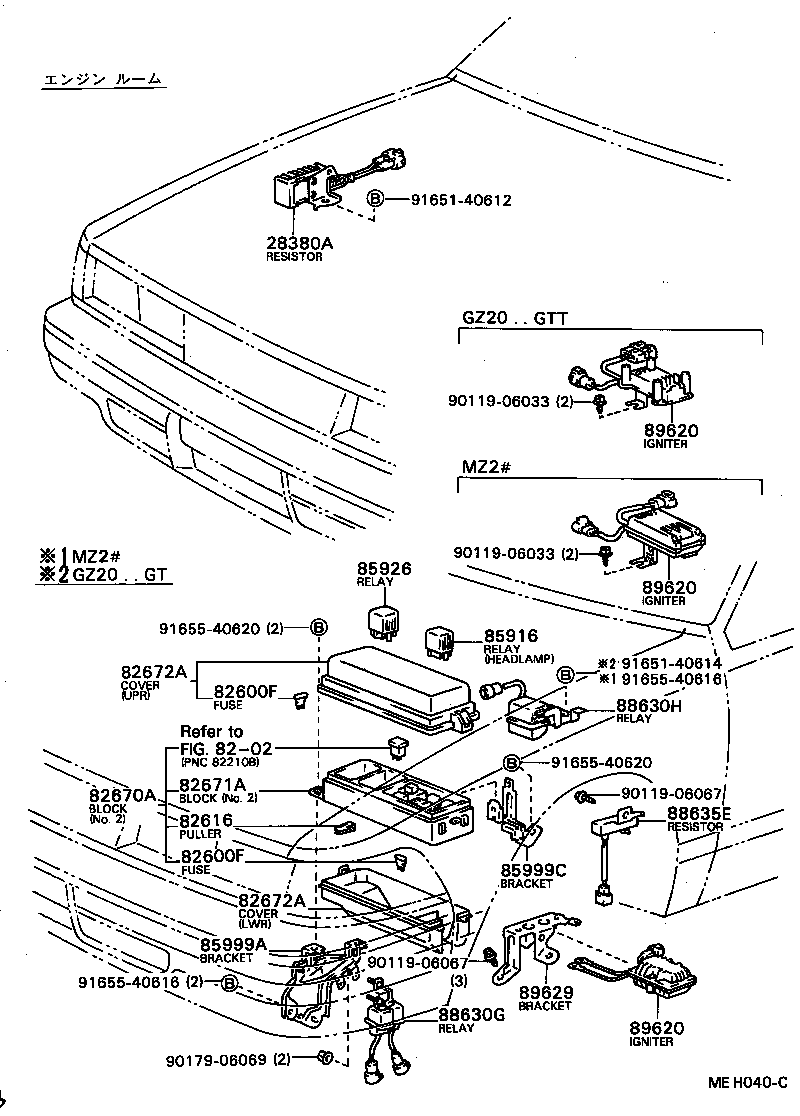

| 28380A | Resister, Fuel Pump |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82616 | Puller, Fuse |

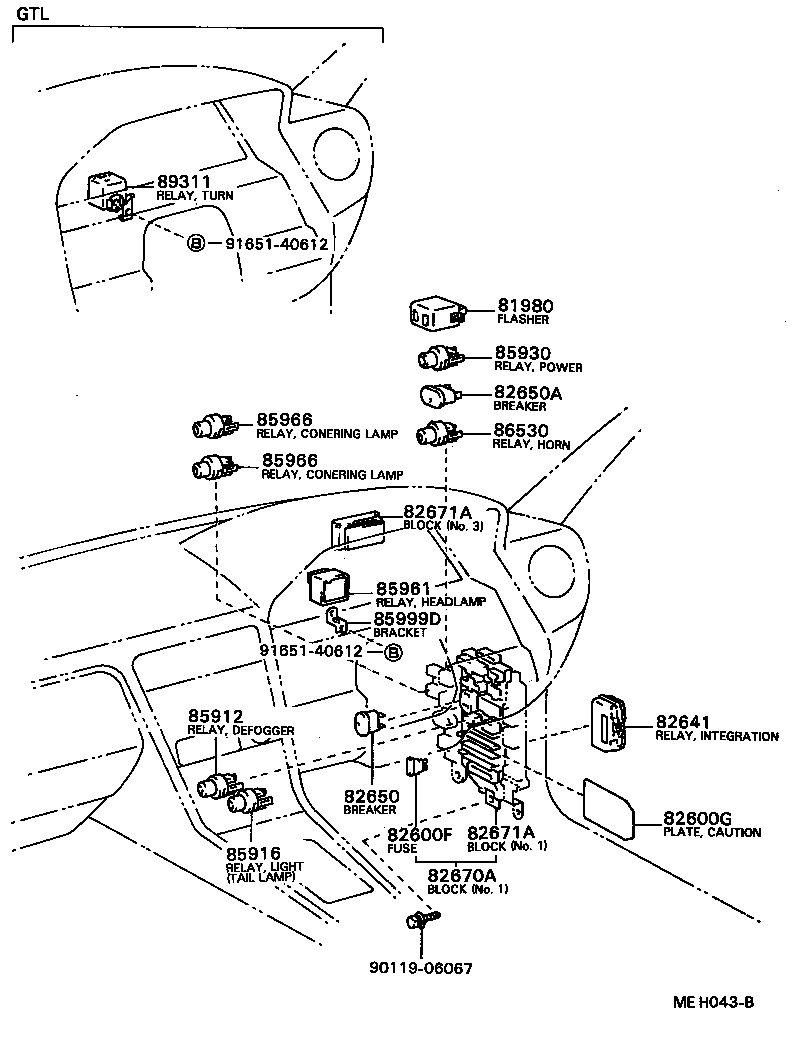

| 82641 | Relay, Integration NO.1 |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82650A | Breaker Assy, Wiring Circuit, NO.2 |
| 82650B | Breaker Assy, Wiring Circuit, NO.3 |
| 82670A | Block Assy, Junction, NO.1 |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84242 | Switch, Glove Box Lamp |
| 84244 | Switch, Steering Pad |
| 84245 | Modulator, Steering Pad Switch |

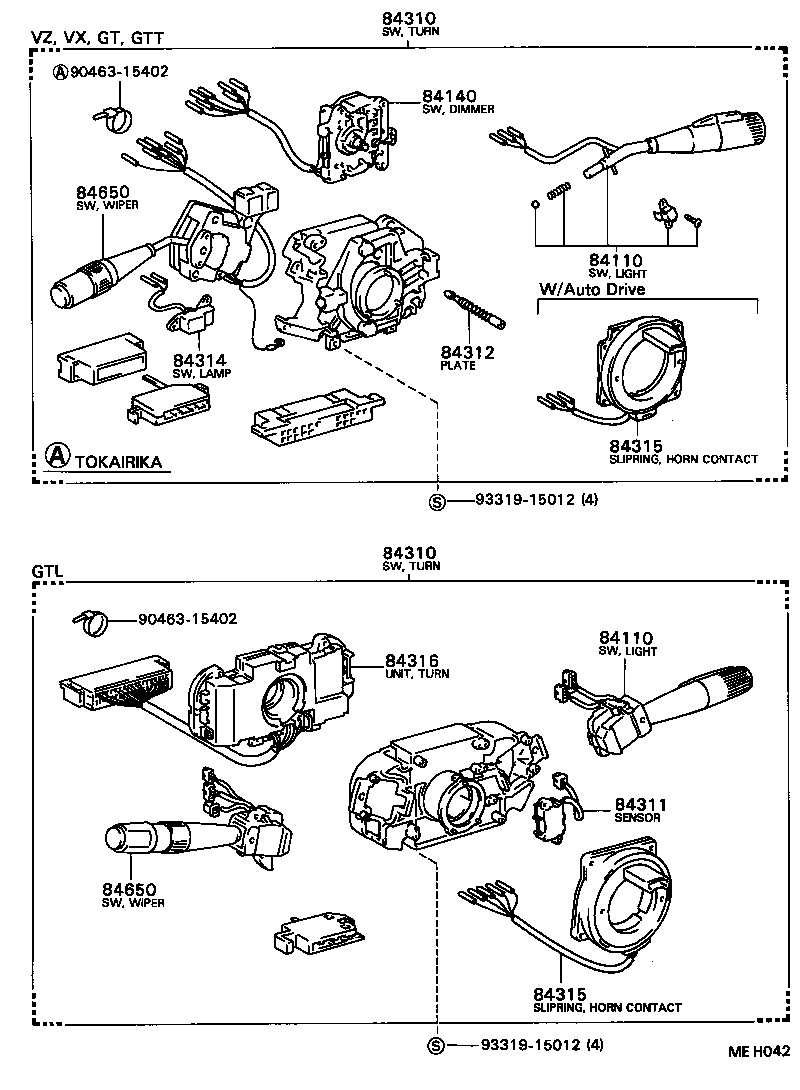

| 84310 | Switch Assy, Turn Signal |
| 84311 | Sensor, Turn Signal Cancel |
| 84312 | Plate, Horn Contact |
| 84314 | Switch, Cornering Lamp |
| 84315 | Slipring, Horn Contact |
| 84316 | Unit, Turn Signal |

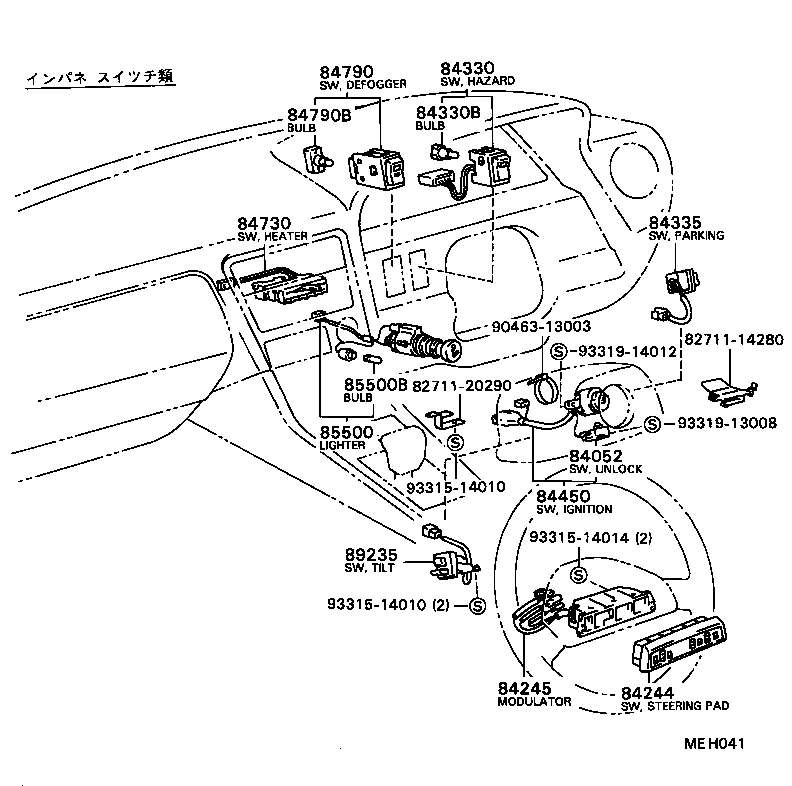

| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84335 | Switch Assy, Parking Lamp |

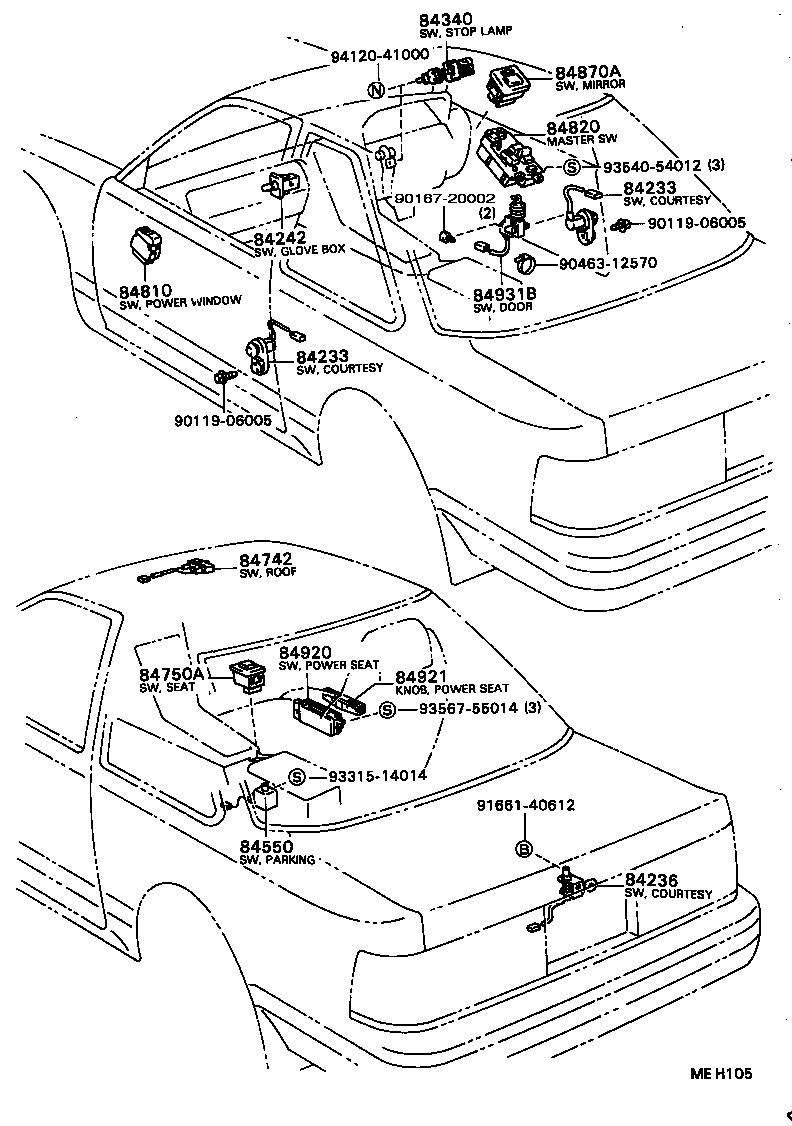

| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84742 | Switch, Slide Roof Limit |
| 84750A | Switch Assy, Seat |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84921 | Knob, Power Seat Switch |
| 84931B | Switch, Door Control |
| 85460A | Solenoid Assy, Lap Belt |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916 | Relay, Light Control |

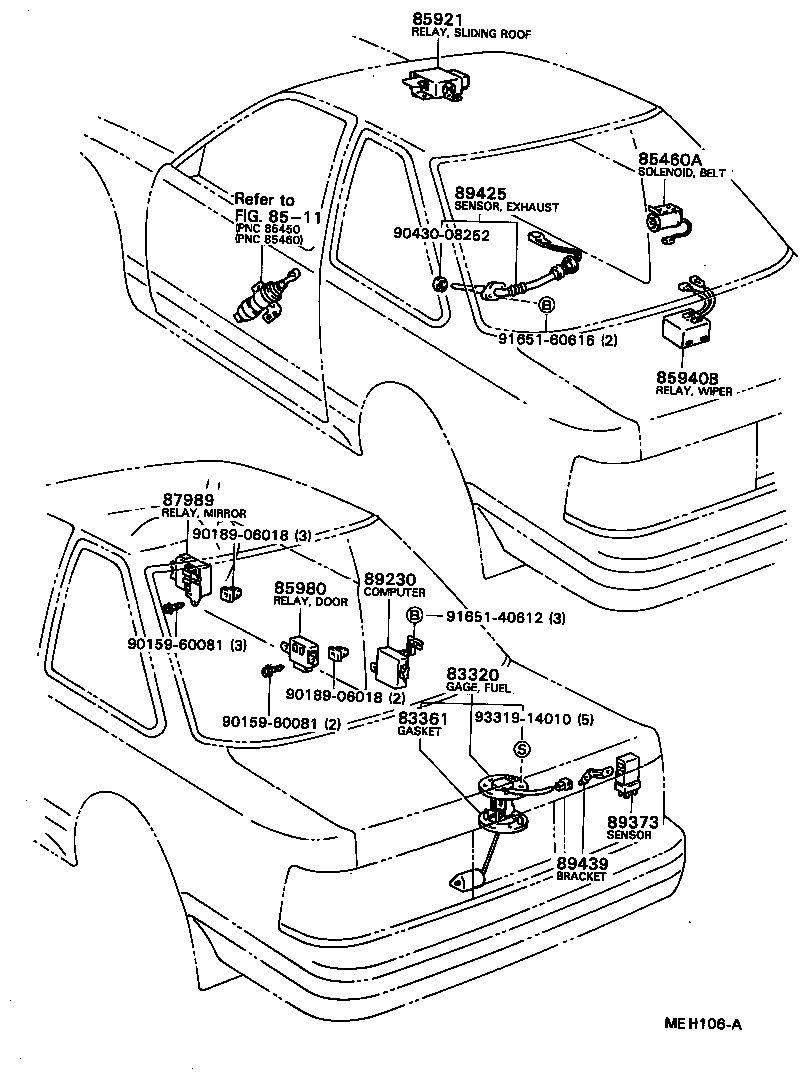

| 85921 | Relay, Sliding Roof Control |
| 85926 | Relay, Headlamp Dimmer |
| 85930 | Relay Assy, Power Window |
| 85940 | Relay Assy, Windshield Wiper |
| 85940B | Relay Assy, Rear Wiper |
| 85961 | Relay, Headlamp Retainer |
| 85966 | Relay,Cornering Lamp Control |
| 85980 | Relay Assy, Door Control |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 85999D | Bracket, Relay, NO.4 |
| 86530 | Relay Assy, Horn |
| 87989 | Relay, Mirror Control |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 88635E | Resistor, Cooler |
| 89230 | Computer Assy, Tilt Steering |
| 89235 | Switch, Tilt Steering |
| 89311 | Relay, Turn Signal |
| 89373 | Sensor, Lamp Failure Indicator |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89429 | Sensor, Oil Temperature |
| 89439 | Bracket, Sensor |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89650 | Computer Assy, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
