Toyota Soarer

1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

13 part groups · 5 illustrations

Illustrations

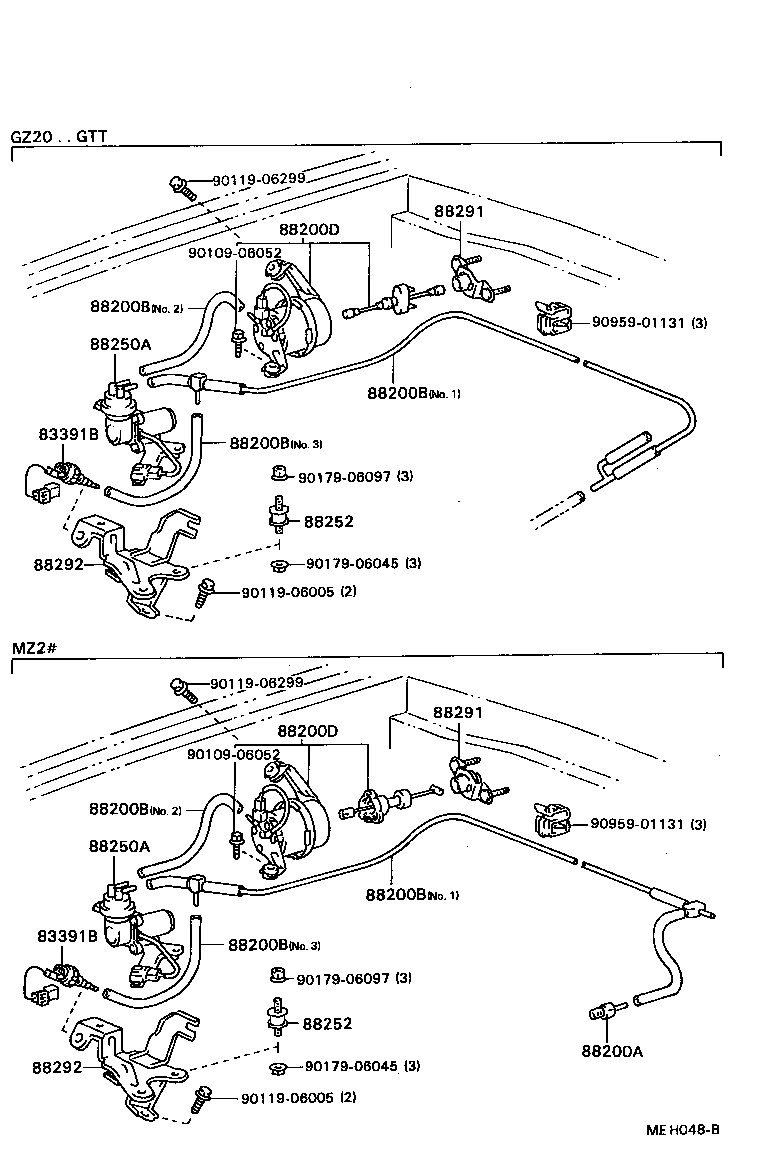

Figure MEH047C MEH047C 1986-01 → — Figure MEH048B MEH048B 1986-01 → — Figure MEH048B MEH048B 1987-01 → — Figure MEH092A MEH092A 1986-01 → — Figure MEH092A MEH092A 1987-01 → —

Part groups

PNCDescription
83391B Switch, Auto Drive Vacuum
84630 Switch Assy, Cruise Control Main
88200A Union OR Way, Cruise Control Vacuum
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88235 Switch Assy, Cruise Control(AUTO DRIVE) Release
88240 Computer Assy, Cruise Control
88250A Pump Assy, Cruise Control
88252 Cushion, Vacuum Pump
88290A Bellcrank Assy, Cruise Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
88292 Bracket, Cruise Control(AUTO DRIVE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
