Toyota Soarer
1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan
Discontinued model
Data version 1988-05
Electronic Controlled Transmission

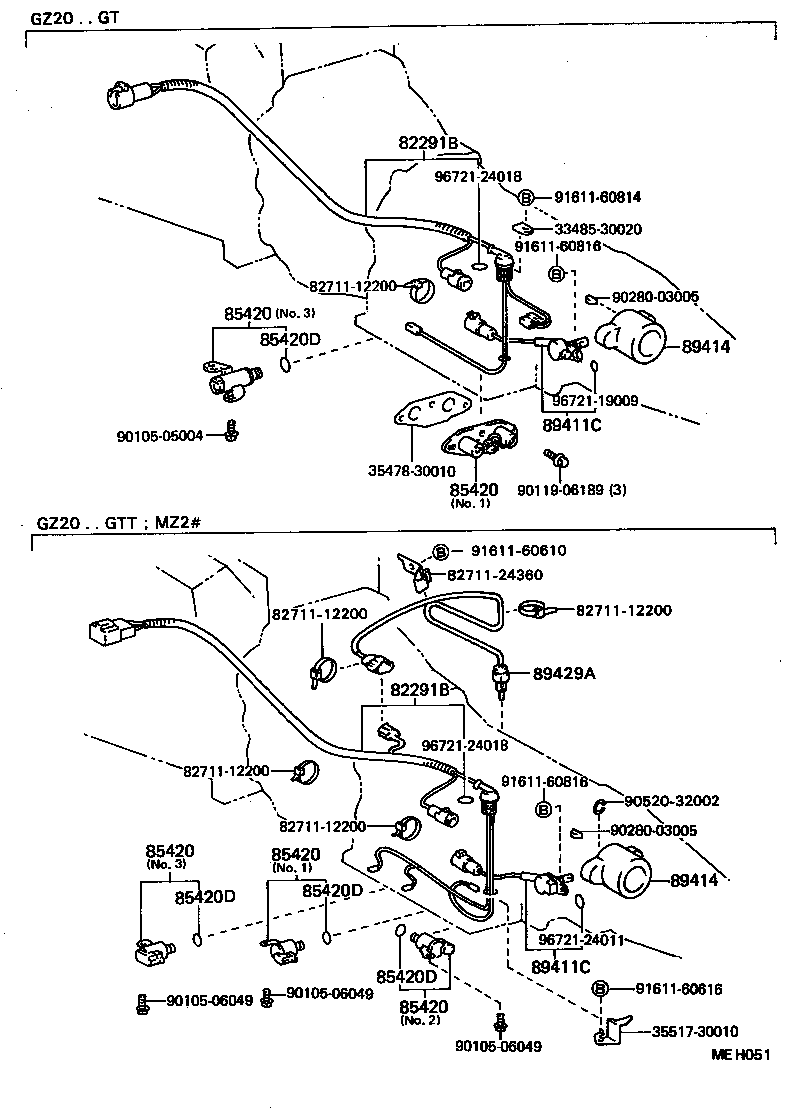

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82291B | Wire, TO Solenoid (FOR TRANSMISSION) |
| 84720 | Switch Assy, Pattern Select |
| 84722E | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89429A | Sensor, Temperature |
| 89530 | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
