Toyota Soarer

1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

15 part groups · 2 illustrations

Illustrations

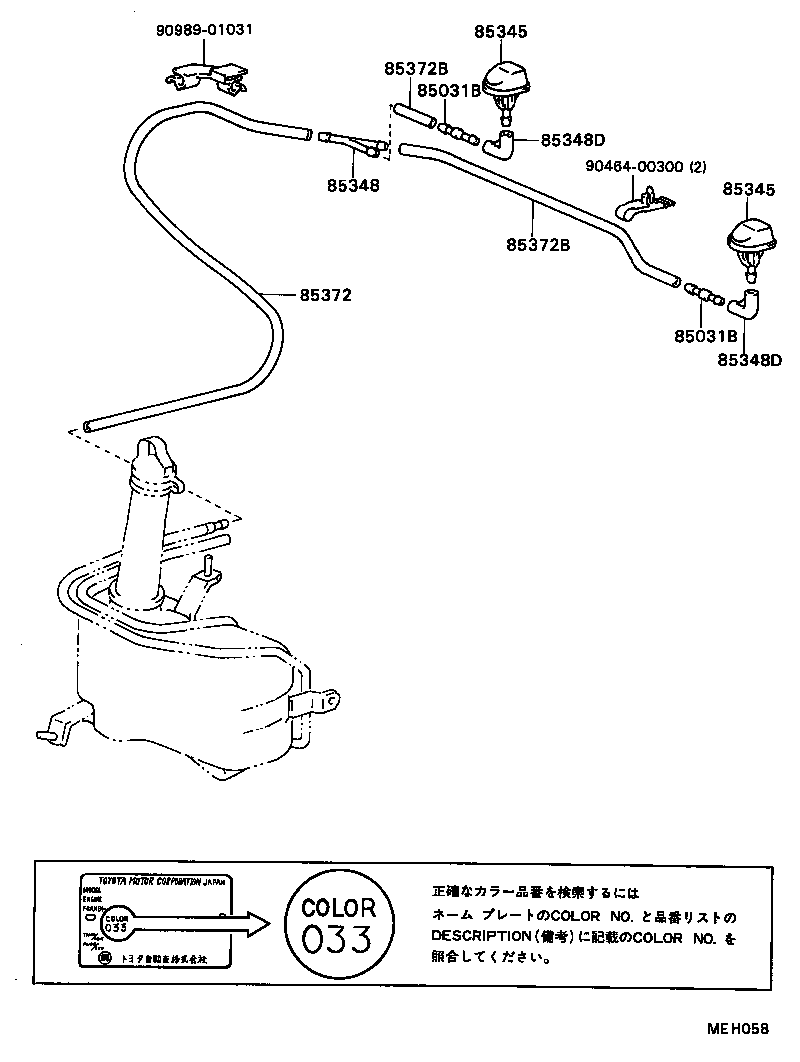

Figure MEH057 MEH057 1986-01 → — Figure MEH058 MEH058 1986-01 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85331 Jar Sub-assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85349 Joint, Windshield Washer Hose, NO.1
85361A Bracket, Windshield Washer, NO.1
85361B Bracket, Windshield Washer, NO.2
85361F Bracket, Windshield Washer, NO.3
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
