Toyota Soarer

1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

7 part groups · 2 illustrations

Illustrations

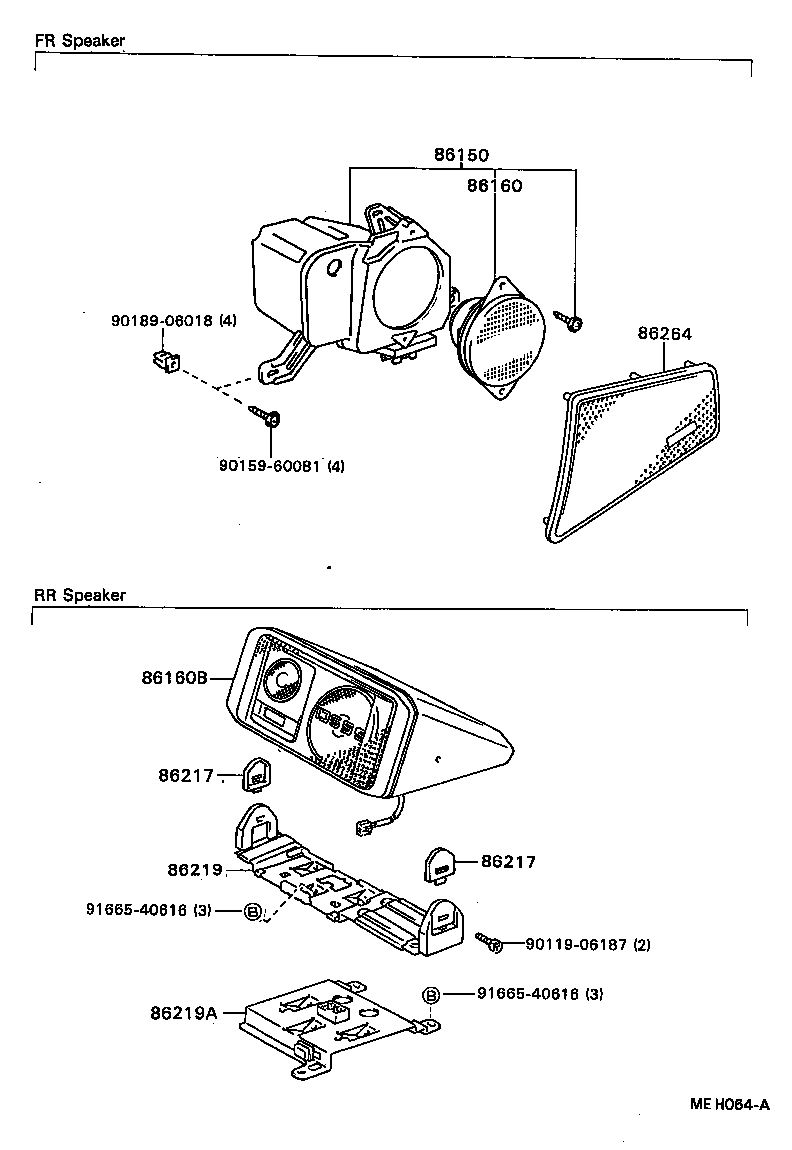

Figure MEH063A MEH063A 1986-01 → — Figure MEH064A MEH064A 1986-01 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86217 Ornament, Speaker Box
86219 Bracket, Stereo Component Speaker, NO.1
86219A Bracket, Stereo Component Speaker, NO.2
86264 Grille, Speaker, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
