Toyota Soarer

1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 3 illustrations

Illustrations

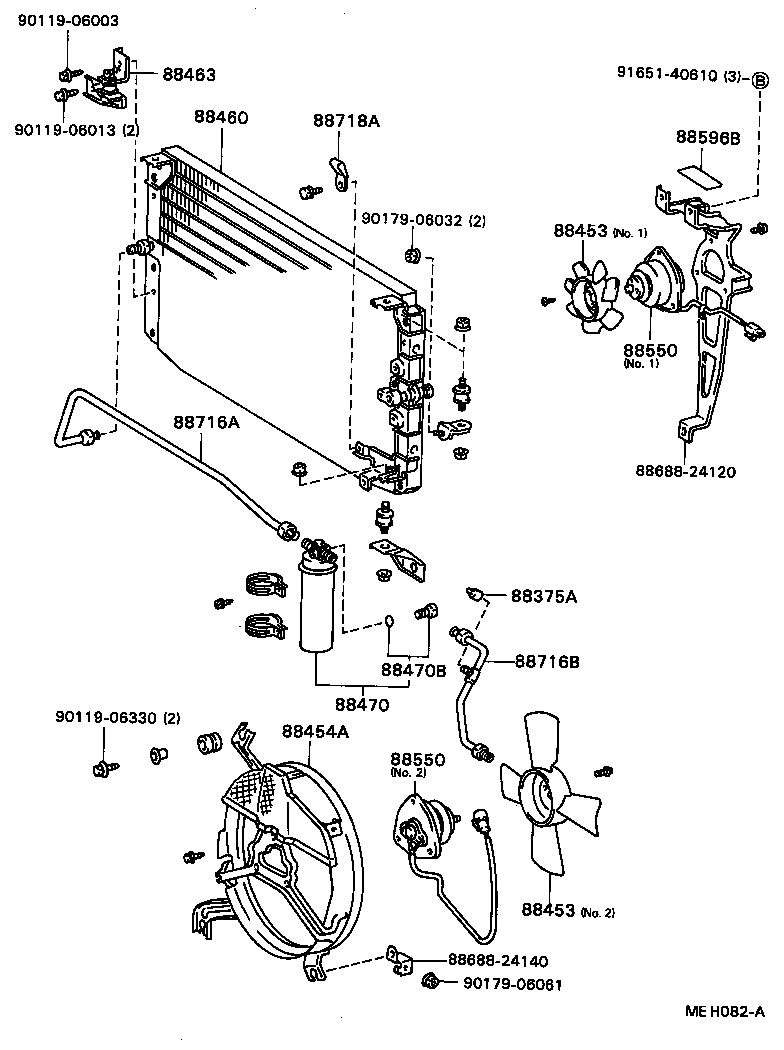

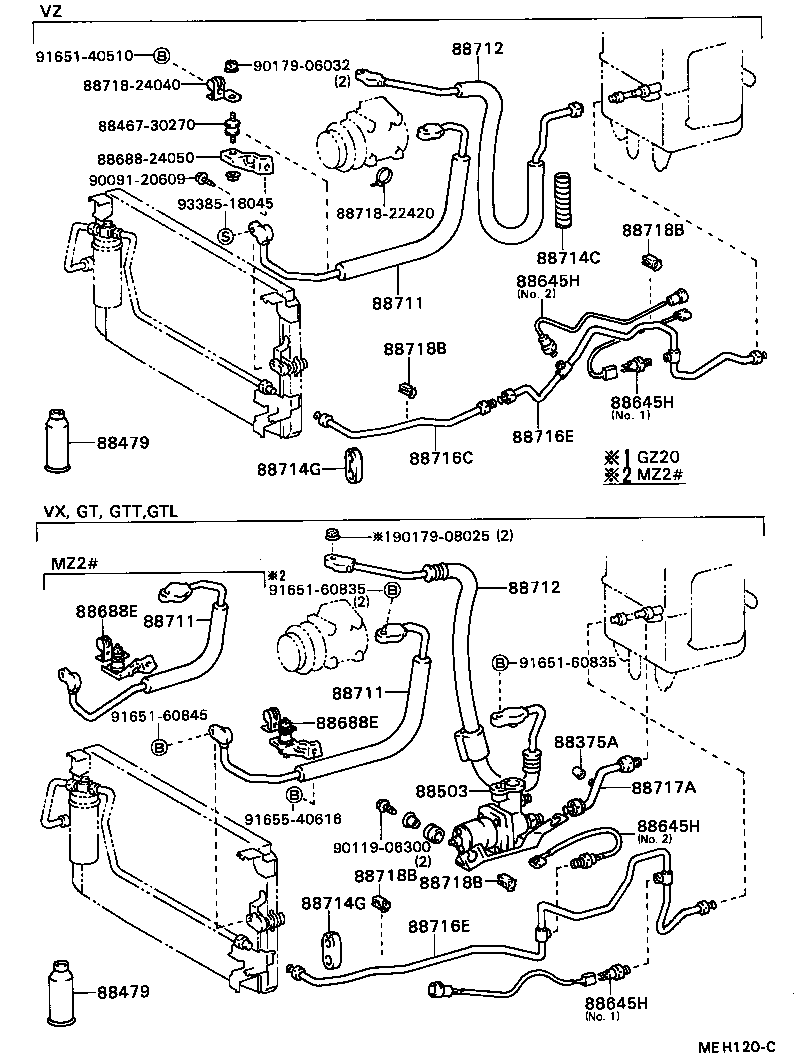

Figure MEH081A MEH081A 1986-01 → — Figure MEH082A MEH082A 1986-01 → — Figure MEH120C MEH120C 1986-01 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88596B Plate, Caution, NO.1
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88714G Insulator, Cooler Refrigerant Pipe, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
