Toyota Soarer

1986-01 → 1988-01 · chassis GZ20,MZ2# · catalogue 321120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

11 part groups · 3 illustrations

Illustrations

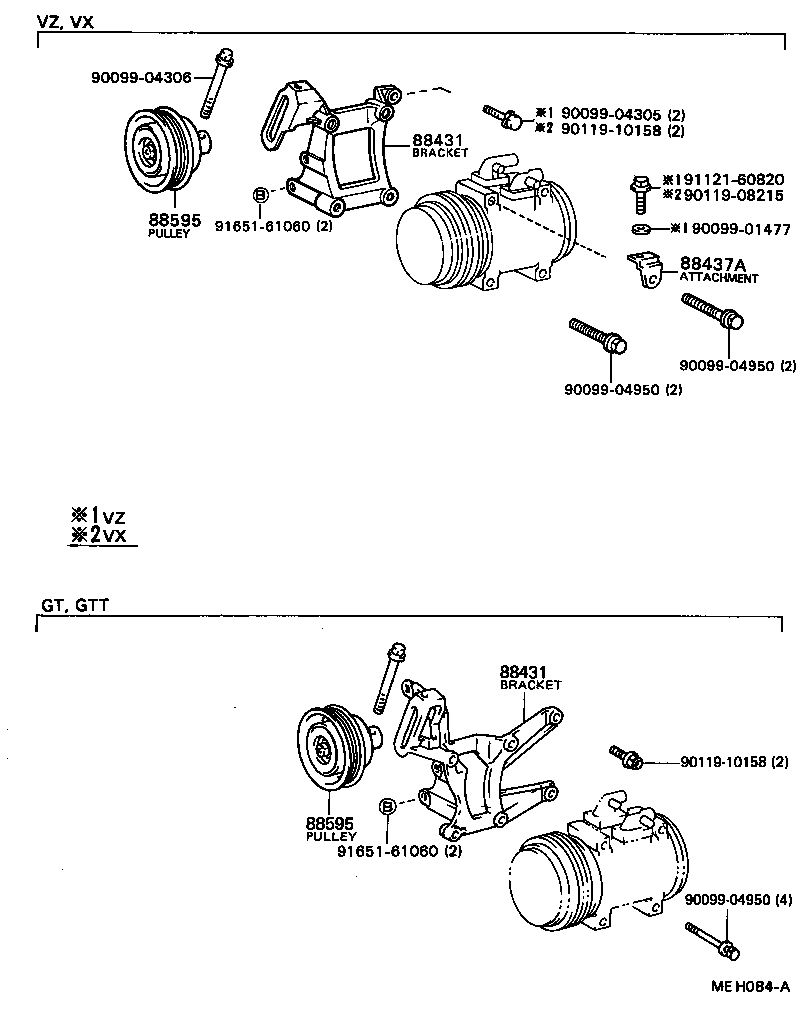

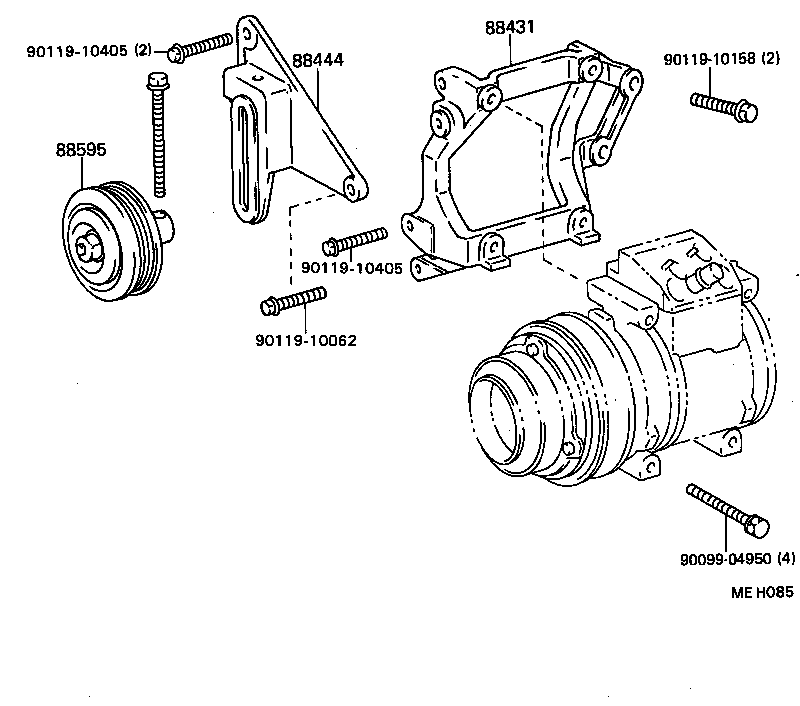

Figure MEH083D MEH083D 1986-01 → — Figure MEH084A MEH084A 1986-01 → — Figure MEH085 MEH085 1986-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88437A Attachment, Compressor
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88596A Plate, Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
