Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

29 part groups · 4 illustrations

Illustrations

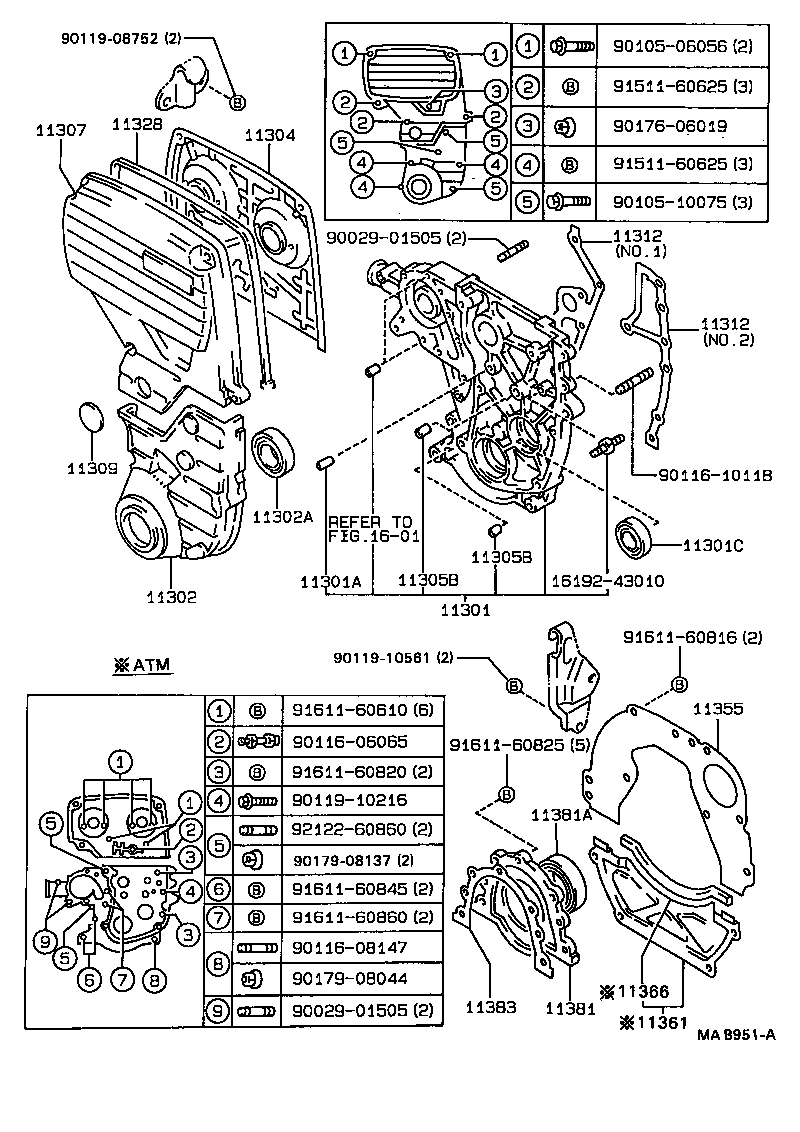

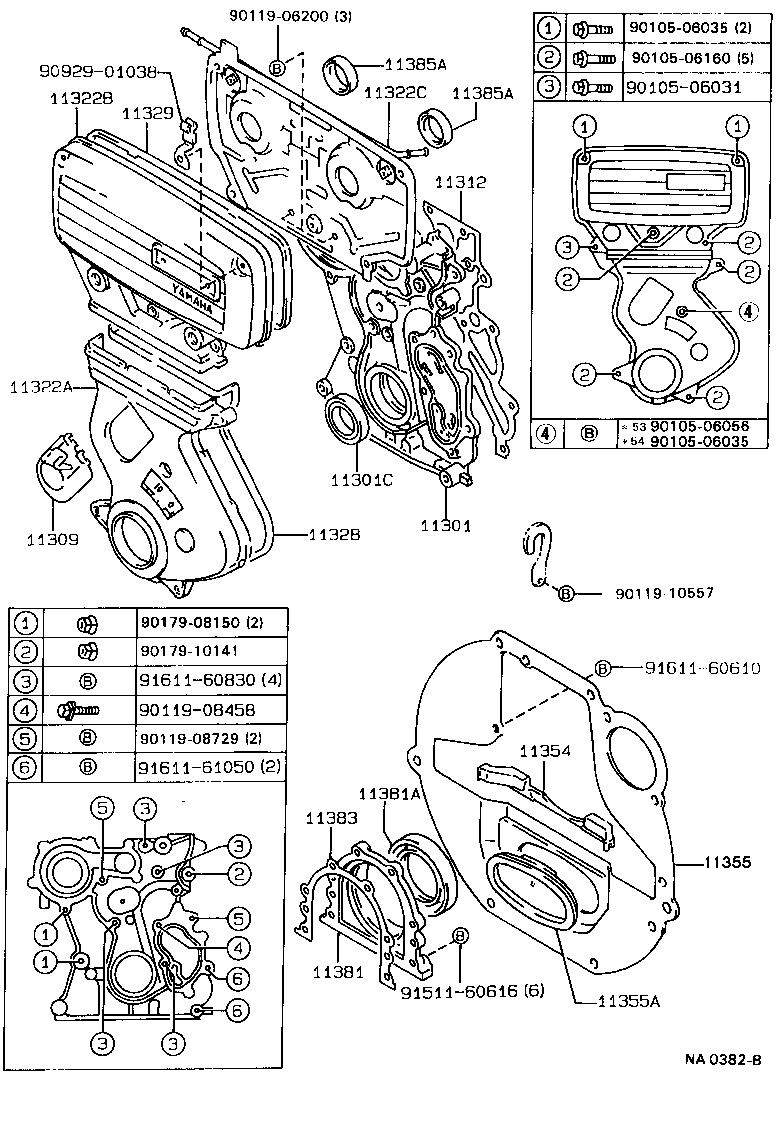

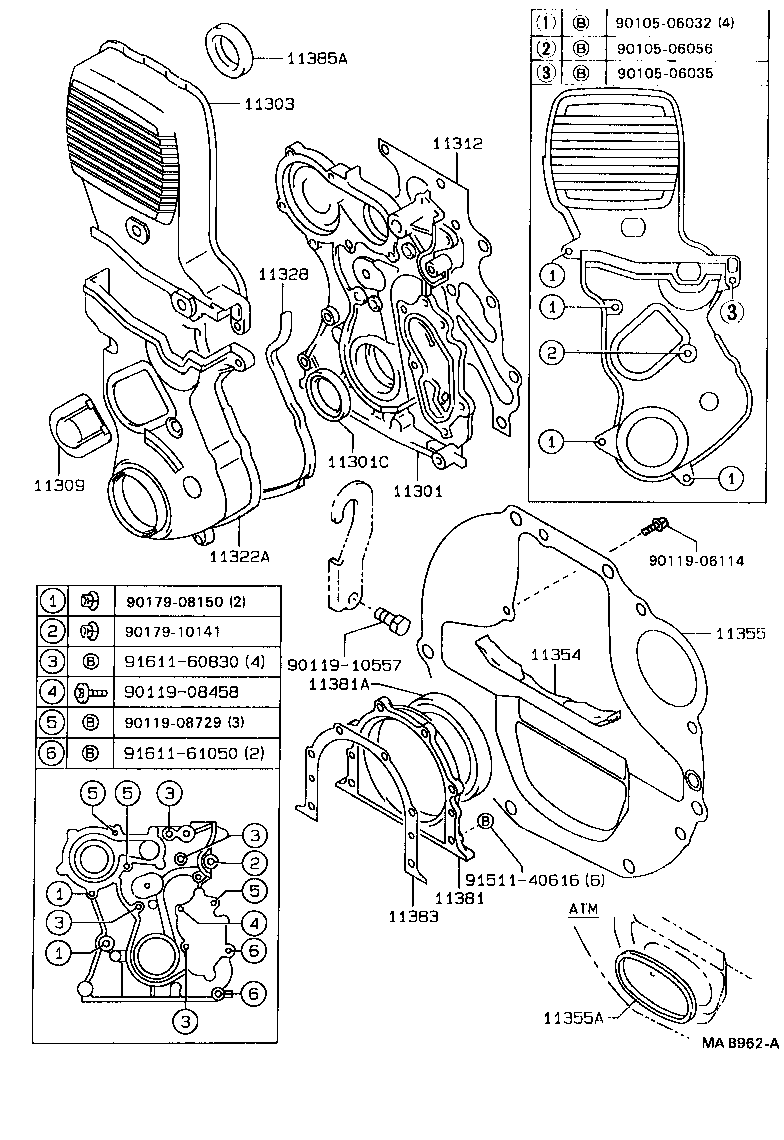

Figure NA0381A NA0381A 1988-01 → — Figure MAB962A MAB962A 1989-01 → — Figure NA0382B NA0382B 1988-01 → — Figure MAB951A MAB951A 1988-01 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11309 Cover Sub-assy, Timing Belt, NO.4
11312 Gasket, Front End Plate
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11338 Gasket, Timing Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11361 Cover, Flywheel Housing Under
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11385A Seal, Oil(FOR CAMSHAFT)
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
