Toyota Soarer
1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan
Discontinued model
Data version 1991-10
Camshaft & Valve

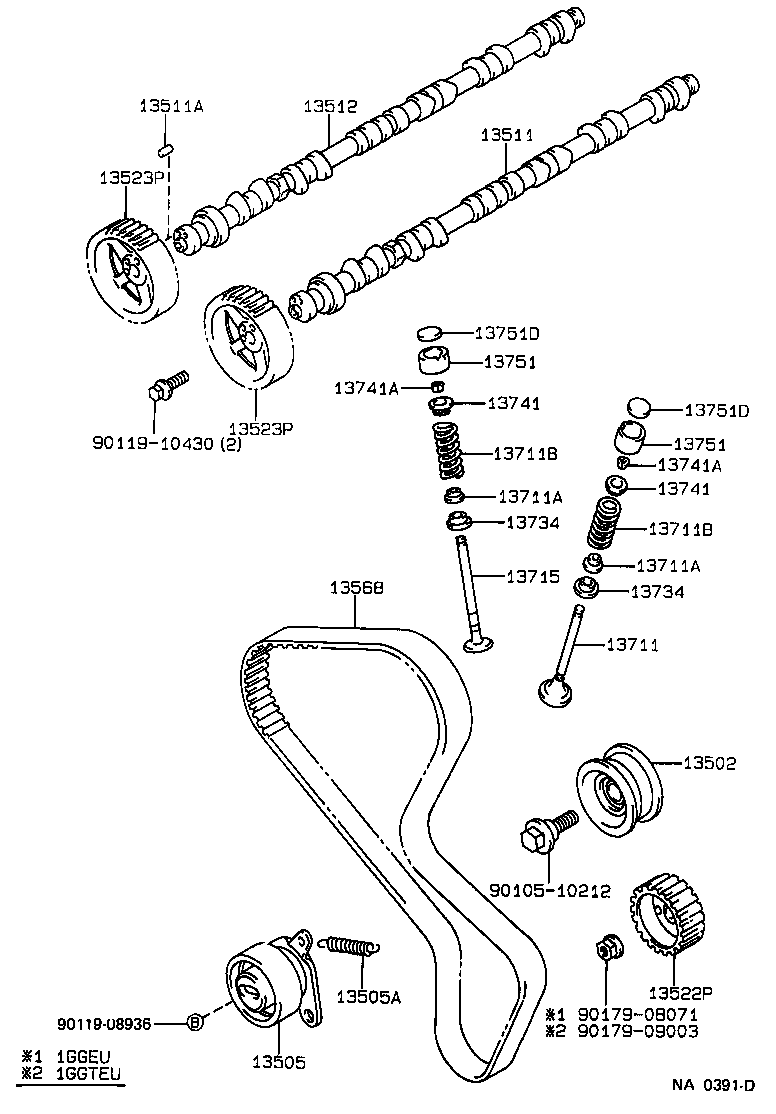

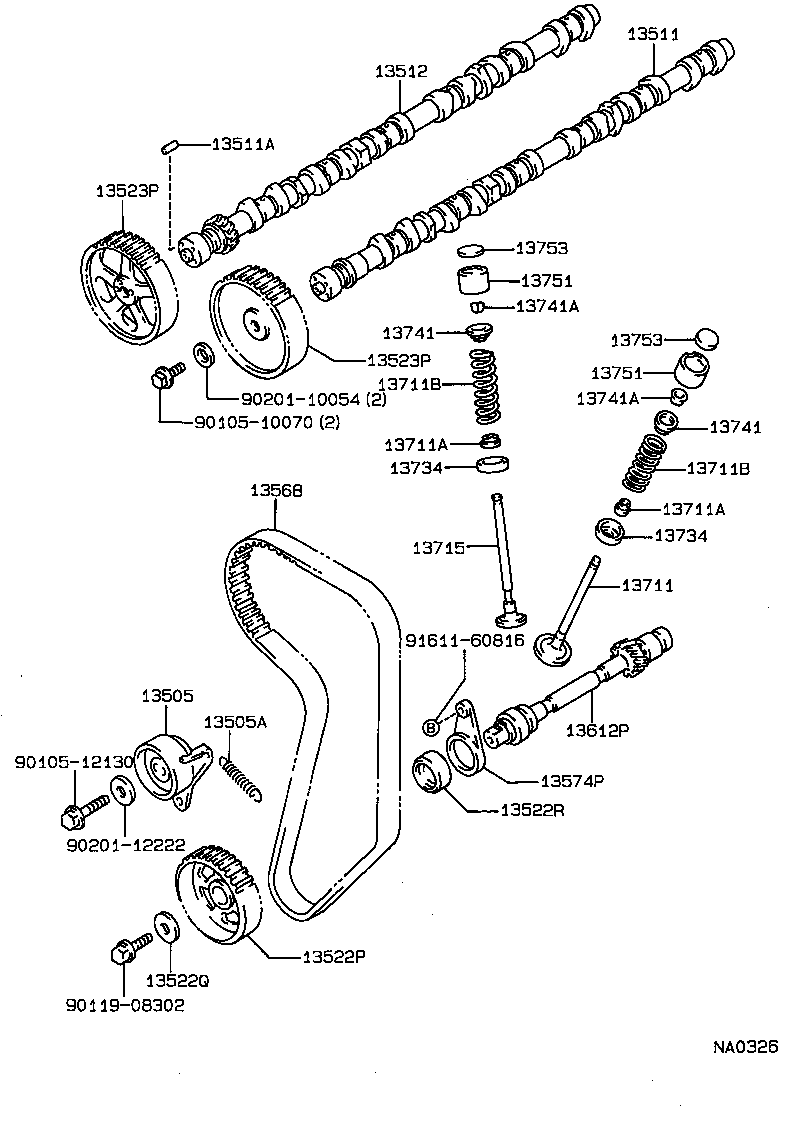

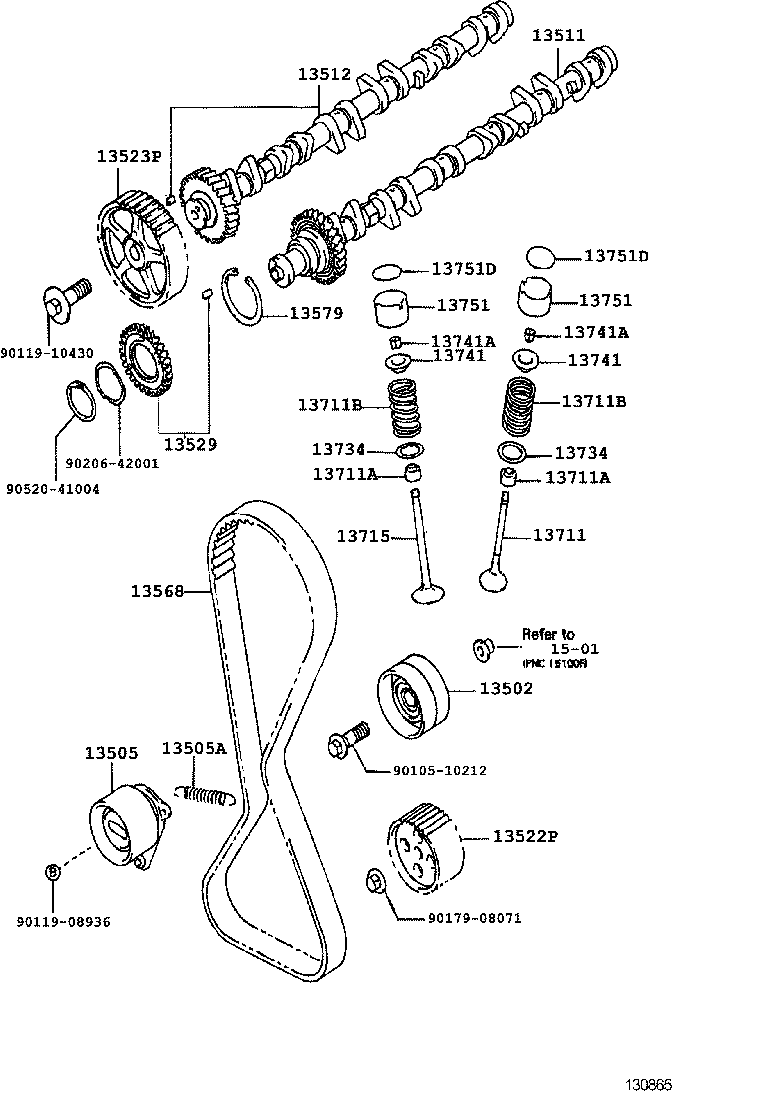

31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 13502 | Idler Sub-assy, Timing Belt, NO.2 |
| 13505 | Idler Sub-assy, Timing Belt, NO.1 |
| 13505A | Spring, Tension(FOR IDLER) |
| 13511 | Camshaft |
| 13511A | Pin, Straight(FOR CAMSHAFT KNOCK) |
| 13512 | Camshaft, NO.2 |
| 13522P | Pulley, Pump Drive Shaft |
| 13522Q | Washer, Plate(FOR PUMP DRIVE SHAFT PULLEY) |
| 13522R | Collar(FOR PUMP DRIVE SHAFT PULLEY) |
| 13523P | Pulley, Camshaft Timing |
| 13529 | Gear, Camshaft Sub |
| 13568 | Belt, Timing |
| 13574P | Plate, Pump Drive Shaft Thrust |
| 13579 | Washer, Camshaft Timing Gear Bolt |
| 13612P | Shaft, Pump Drive |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711C | Spring, Compression(FOR OUTER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13750 | Adjuster Assy, Valve Lash |
| 13751 | Lifter, Valve |
| 13751D | Pad, Valve Adjusting |
| 13753 | Shim, Valve Adjusting |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 15707 | Pipe Sub-assy, Oil |
| 15707A | Bolt, Union(FOR OIL PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
