Toyota Soarer
1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan
Discontinued model
Data version 1991-10
Manifold
68 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

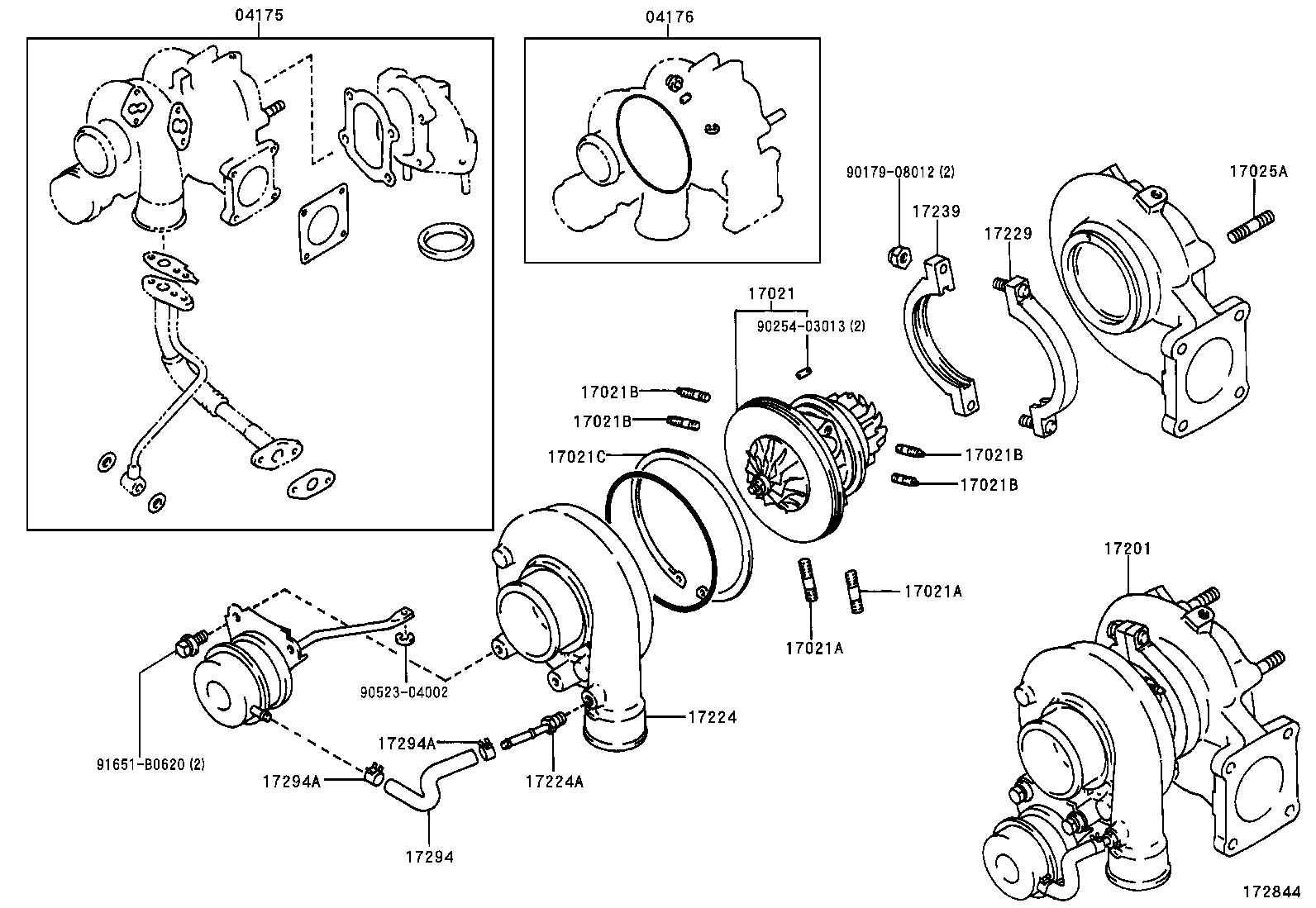

| 04175 | Gasket Kit, Turbocharger |
| 04176 | Seal Kit, Turbocharger |

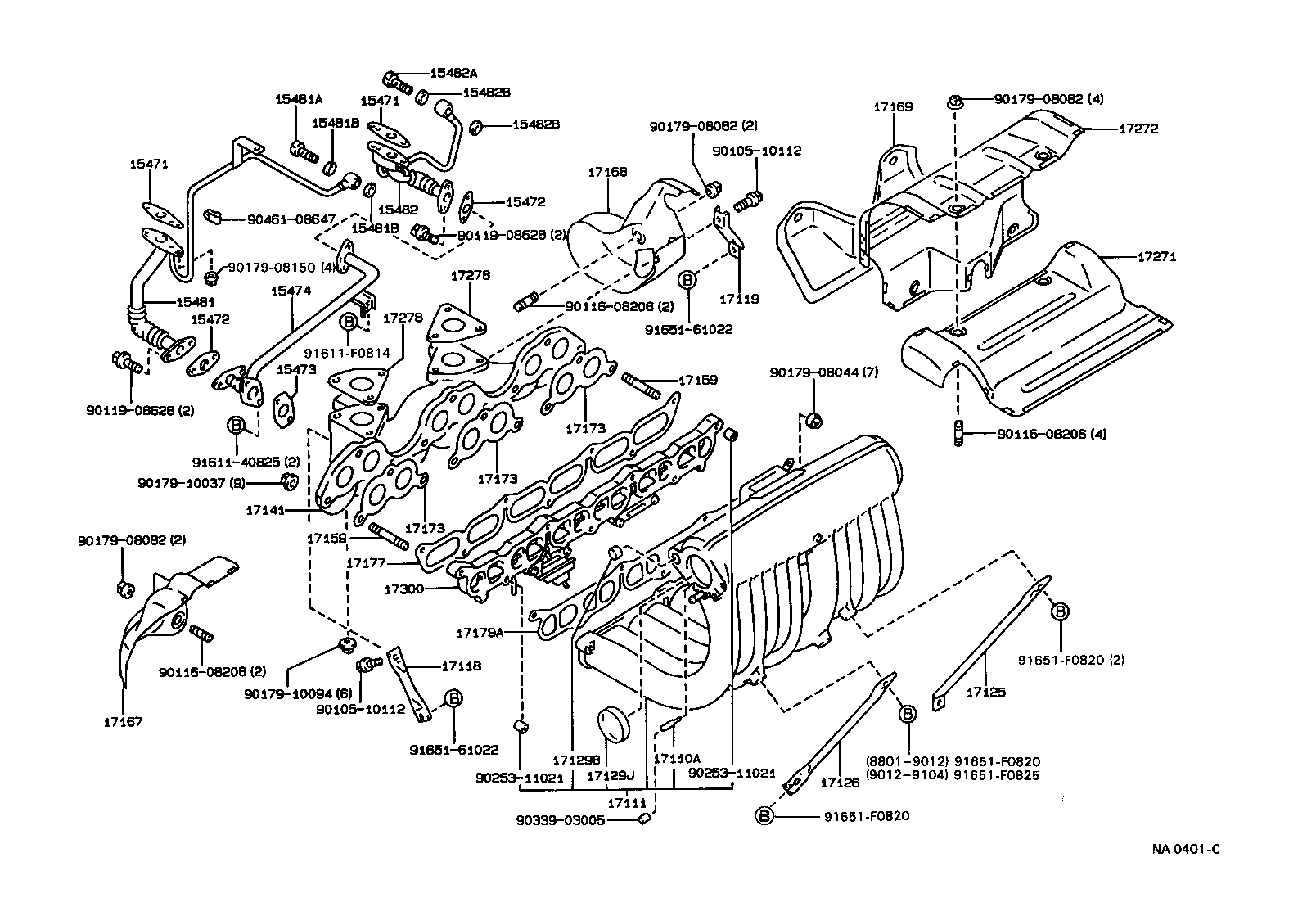

| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15473 | Gasket, Turbo Oil Outlet, NO.2 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15481 | Pipe, Turbo Oil, NO.1 |
| 15481A | Bolt, Union, NO.1 |
| 15481B | Gasket(FOR UNION BOLT NO.1) |
| 15482 | Pipe, Turbo Oil, NO.2 |
| 15482A | Bolt, Union, NO.2 |
| 15482B | Gasket(FOR UNION BOLT NO.2) |
| 16347 | Gasket, Water By-pass |
| 17021 | Housing Sub-assy, Bearing |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17021C | Ring, Hole Snap(FOR BEARING HOUSING) |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17110A | Union, Vacuum Hose |

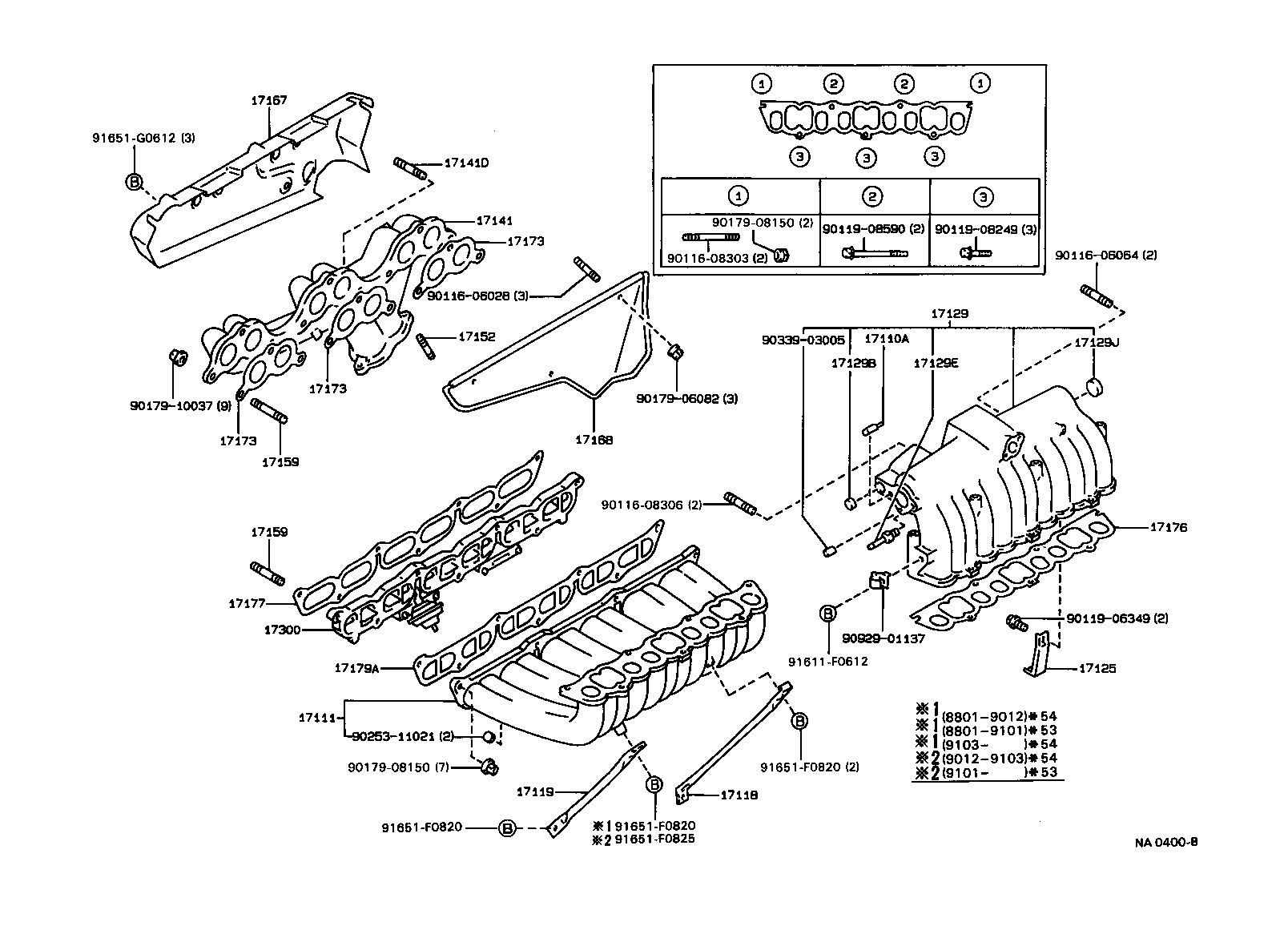

| 17111 | Manifold, Intake |
| 17111G | Union(FOR INTAKE MANIFOLD WATER) |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17129B | Plug |
| 17129D | Union, NO.2 |
| 17129E | Union, NO.3 |
| 17129F | Plug, Intake Manifold Suction Hole |
| 17129G | Tube, Egr Inlet |
| 17129H | Union, NO.4 |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17129M | Bolt, Stud(FOR COLD START INJECTOR) |

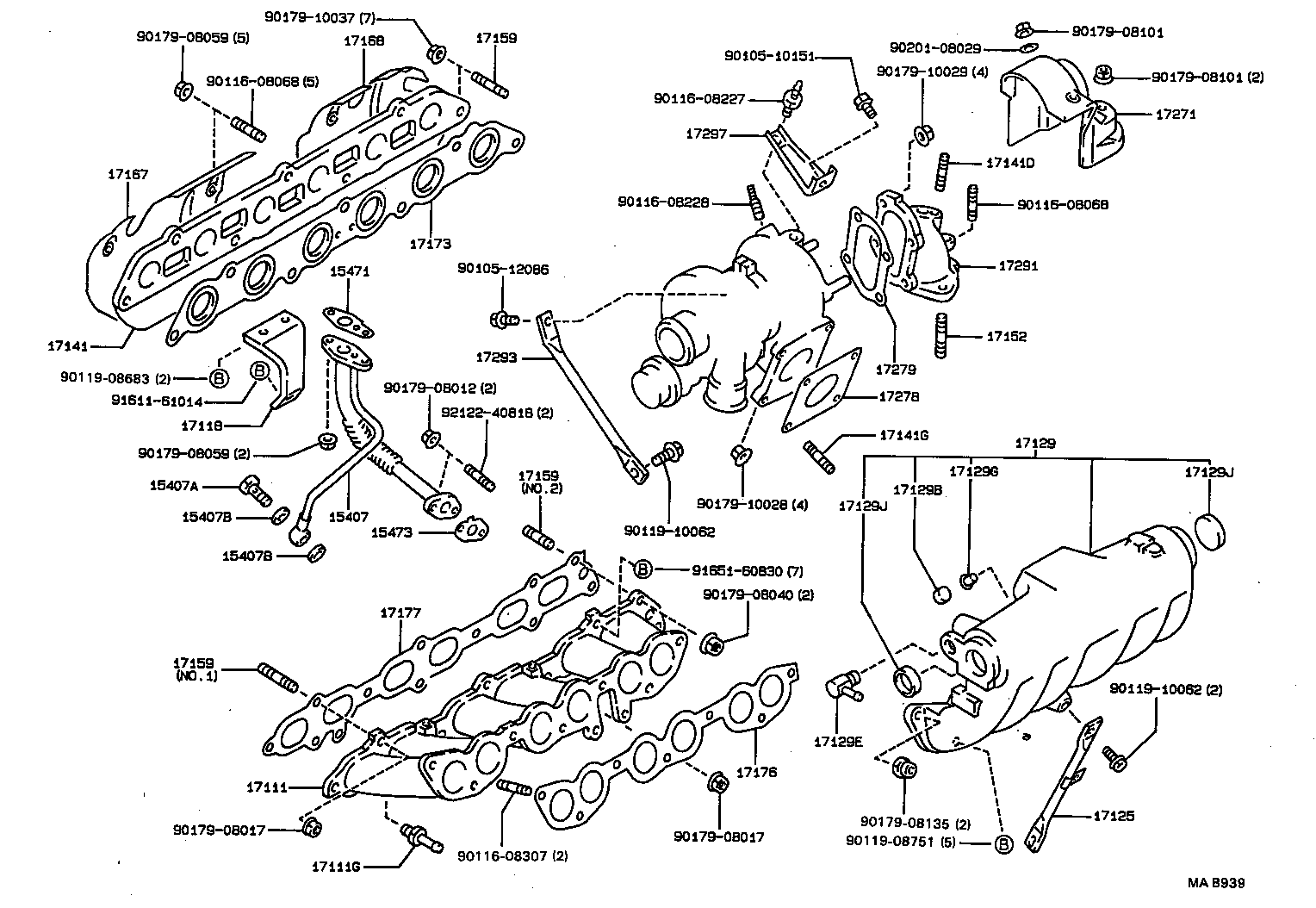

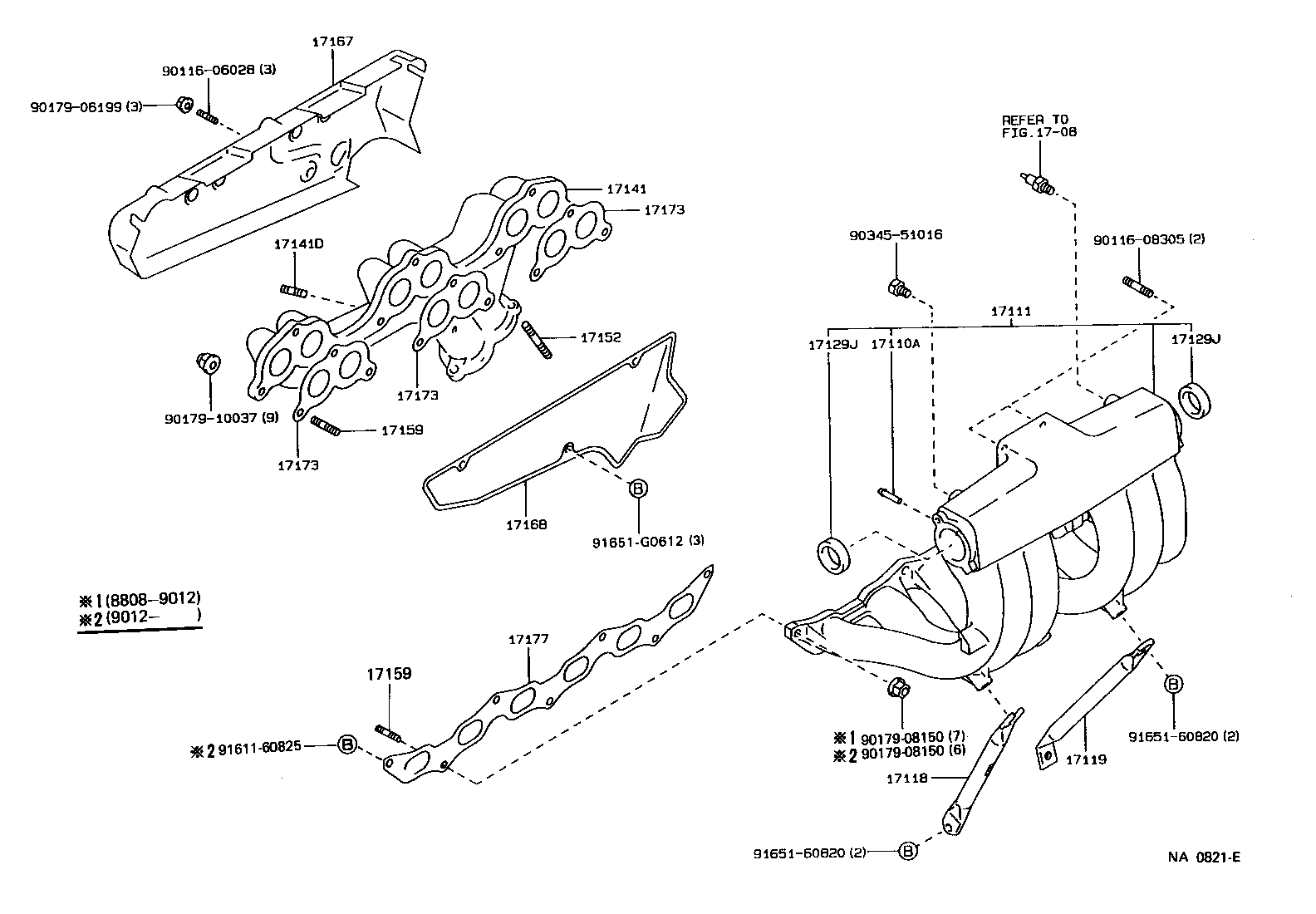

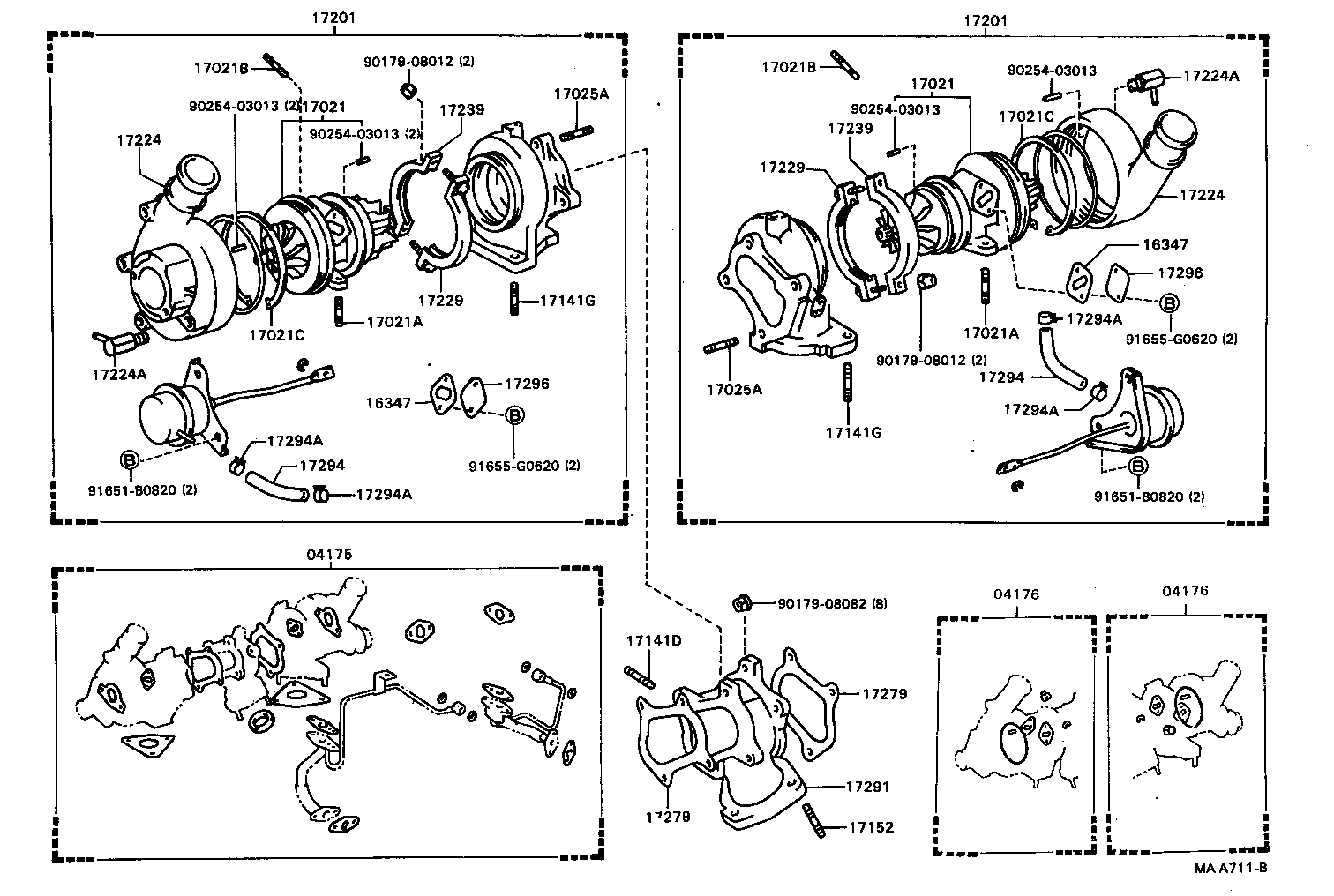

| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17187 | Gasket, Heat Insulator, NO.1 |
| 17188 | Gasket, Heat Insulator, NO.2 |
| 17201 | Turbocharger Sub-assy |
| 17224 | Housing, Compressor |
| 17224A | Union(FOR COMPRESSOR HOUSING) |
| 17229 | Band, V |
| 17239 | Clamp, V, NO.2 |
| 17271 | Insulator, Turbo, NO.1 |
| 17272 | Insulator, Turbo, NO.2 |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17297 | Stay, Turbocharger, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
