Toyota Soarer
1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan
Discontinued model
Data version 1991-10

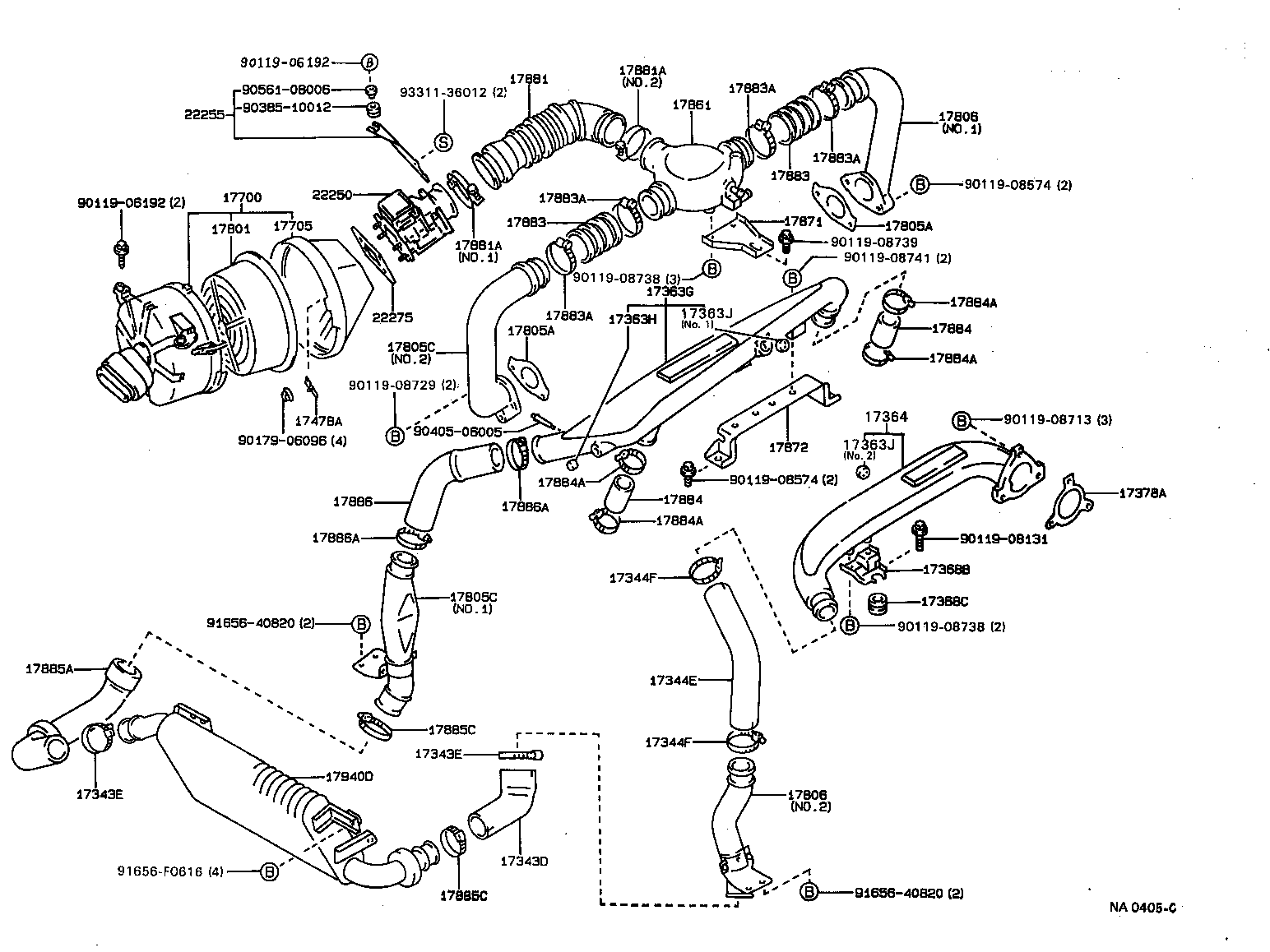

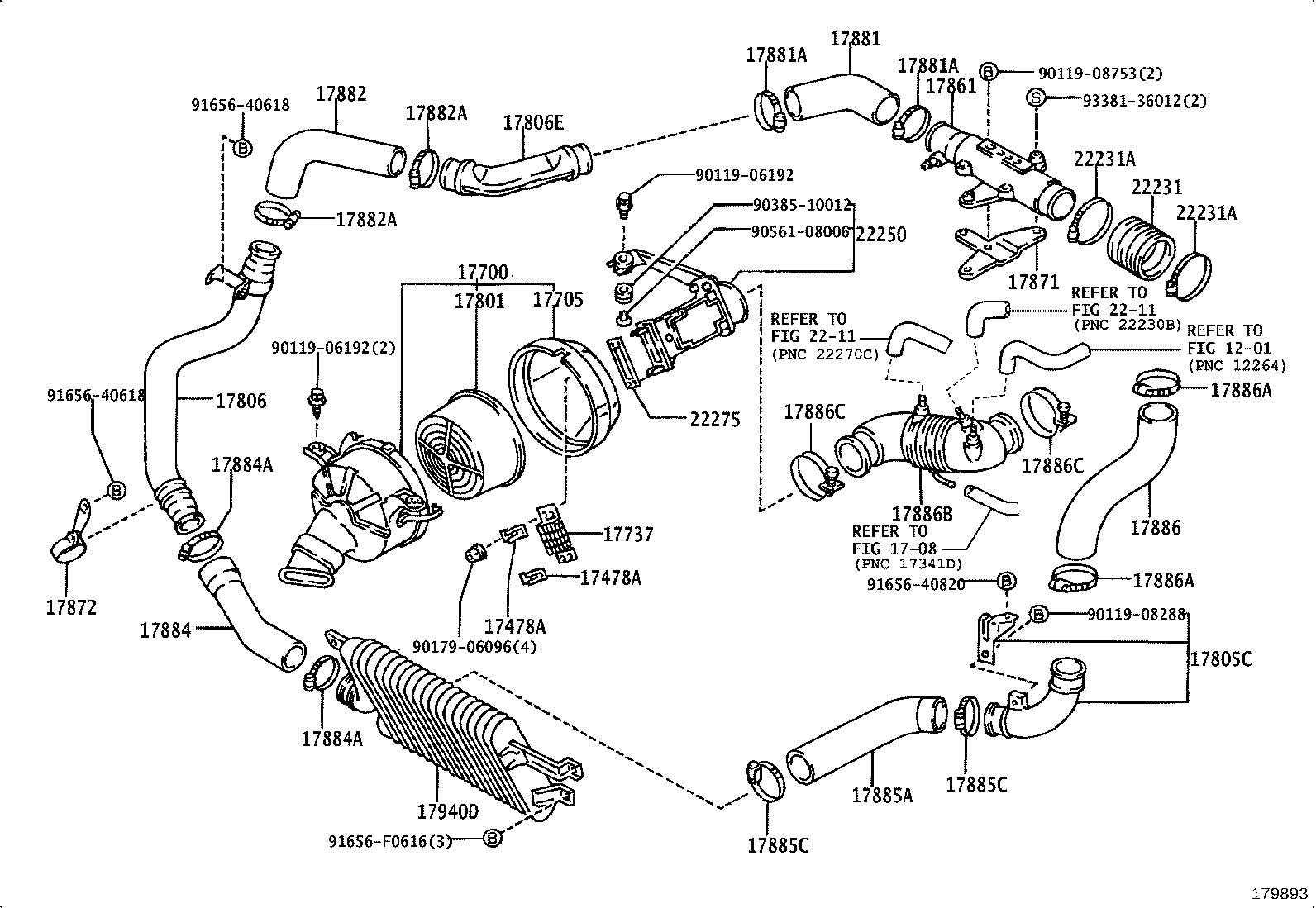

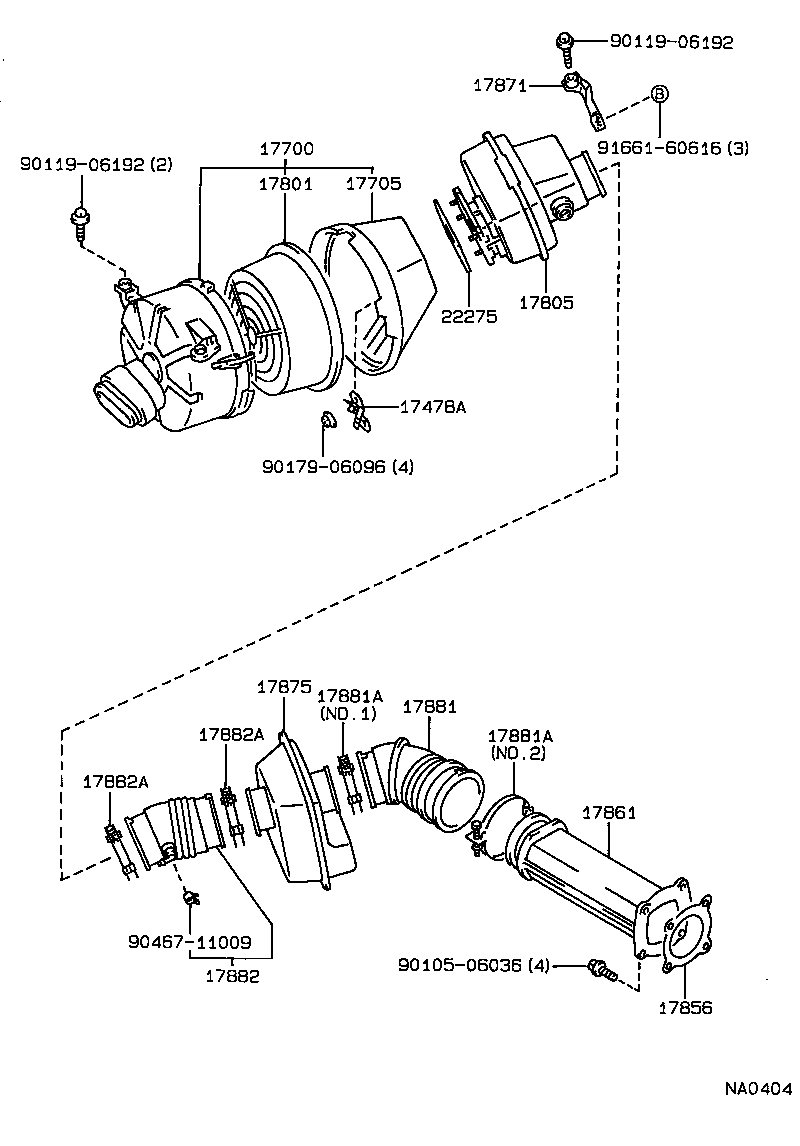

Air Cleaner
46 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17344E | Hose, Air, NO.4 |
| 17344F | Clamp, Hose(FOR AIR HOSE, NO.4) |
| 17363G | Tube, Air, NO.3 |
| 17363H | Plug, Tight, NO.1(FOR AIR TUBE, NO3) |
| 17363J | Plug, Tight, NO.2(FOR AIR TUBE, NO.3) |
| 17364 | Tube, Air, NO.4 |
| 17368B | Support, Air Tube |
| 17368C | Bush(FOR AIR TUBE SUPPORT) |
| 17378A | Gasket, Air Tube, NO.3 |
| 17478A | Plate, Lock |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17737 | Cover, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805A | Gasket & Washer, Seal |
| 17805C | Pipe Sub-assy, Air Cleaner, NO.1 |
| 17806 | Pipe Sub-assy, Air Cleaner, NO.2 |
| 17806E | Pipe Sub-assy, Air Cleaner, NO.4 |
| 17856 | Gasket, Air Intake Flange |
| 17861 | Connector, Intake Air |
| 17871 | Stay, Air Connector |
| 17872 | Bracket, Intake Air Connector |
| 17875 | Pipe, Intake Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17884 | Hose, Air Cleaner, NO.4 |
| 17884A | Clamp(FOR AIR CLEANER HOSE, NO.4) |
| 17885A | Hose, Air Cleaner, NO.5 |
| 17885C | Clamp(FOR AIR CLEANER HOSE, NO.5) |
| 17886 | Hose, Air Cleaner, NO.6 |
| 17886A | Clamp(FOR AIR CLEANER HOSE, NO.6) |
| 17886B | Hose, Air Cleaner, NO.7 |
| 17886C | Clamp(FOR AIR CLEANER HOSE, NO.7) |
| 17940D | Intercooler Assy |
| 22231 | Hose, Throttle Body |
| 22231A | Clamp OR Clip(FOR THROTTLE BODY HOSE) |
| 22250 | Meter Assy, Intake Air Flow |
| 22255 | Bracket, Air Flow Meter |
| 22275 | Gasket, Air Flow Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
