Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

17 part groups · 4 illustrations

Illustrations

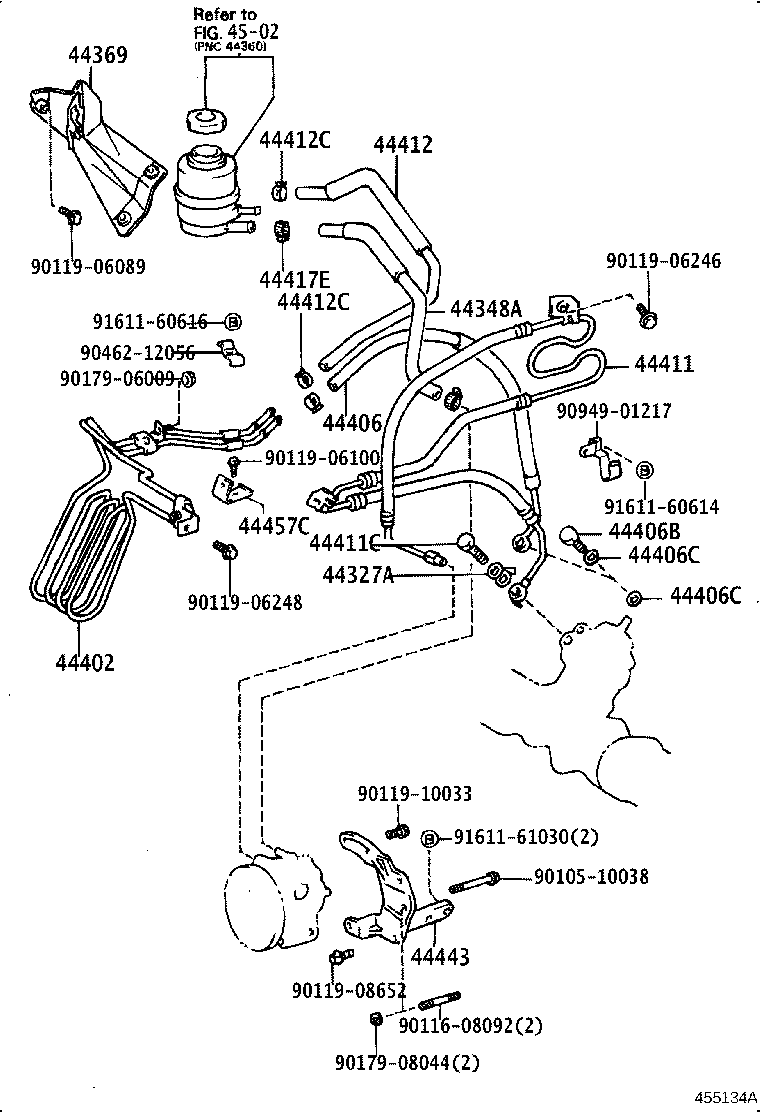

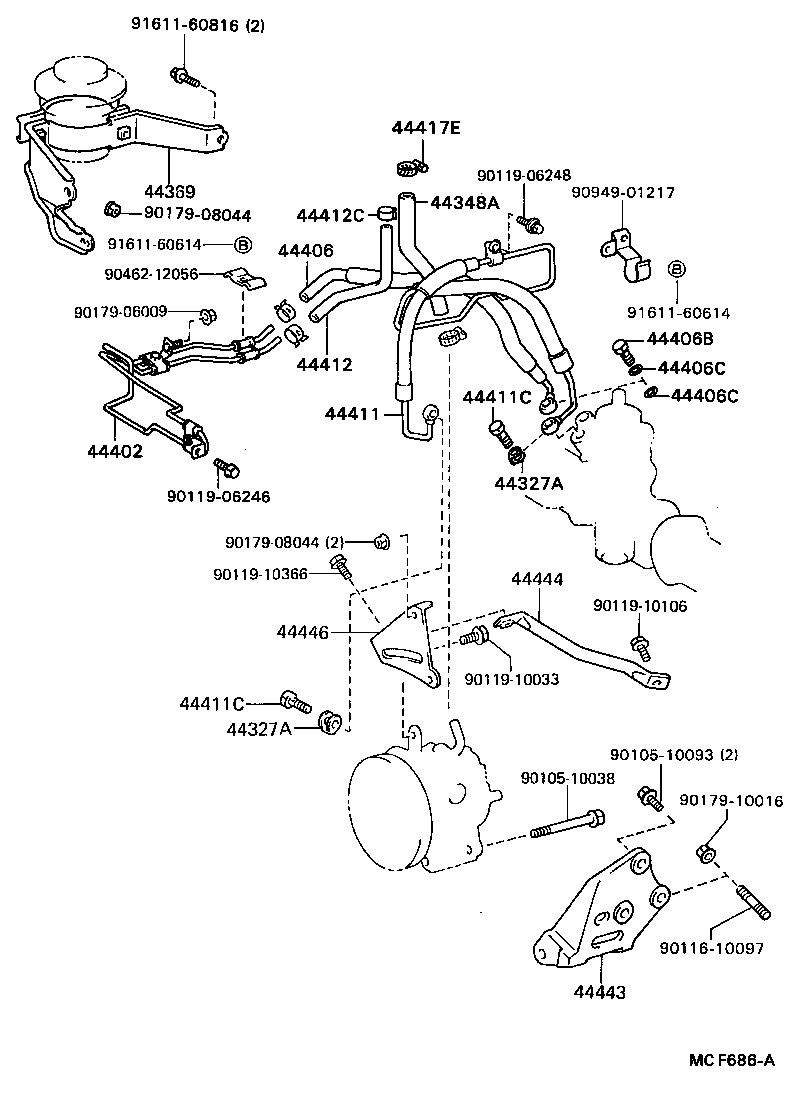

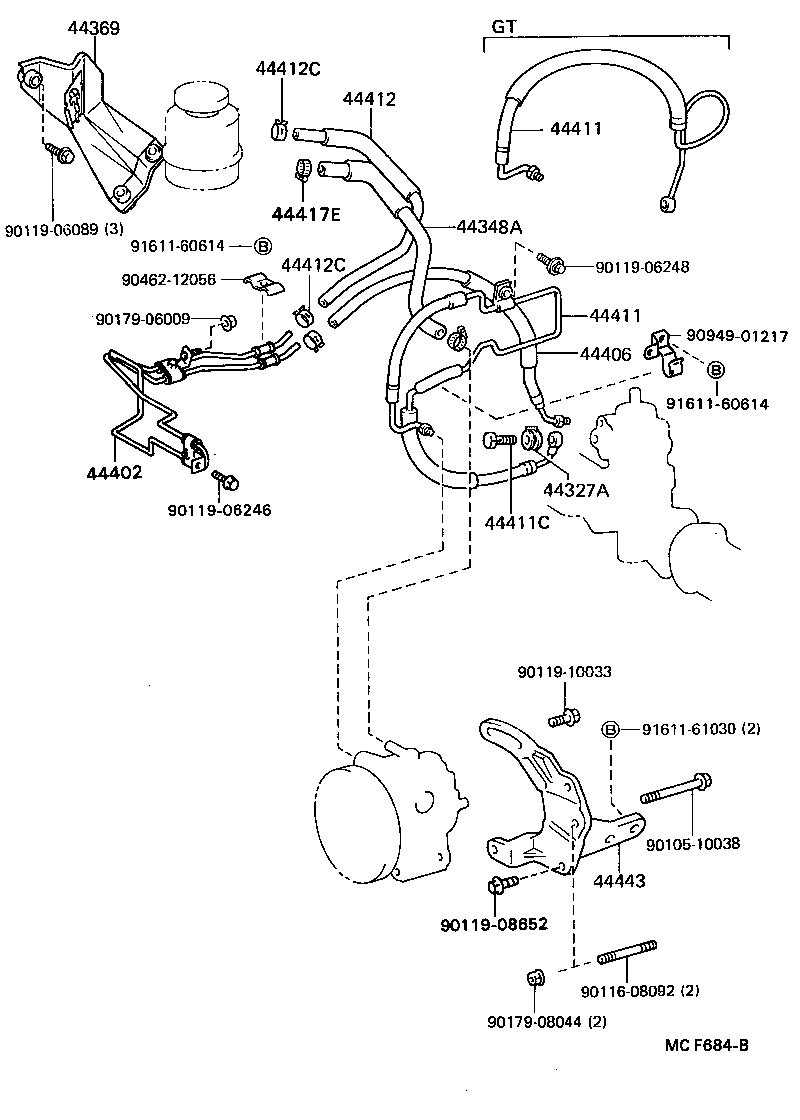

Figure MCF683A MCF683A 1988-01 → — Figure MCF684B MCF684B 1988-01 → — Figure 455134A 455134A 1988-01 → — Figure MCF686A MCF686A 1988-01 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44369 Bracket, Oil Reservoir, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44417E Clip, Hose(FOR RETURN TUBE TO RESERVOIR HOSE)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
