Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 5 illustrations

Illustrations

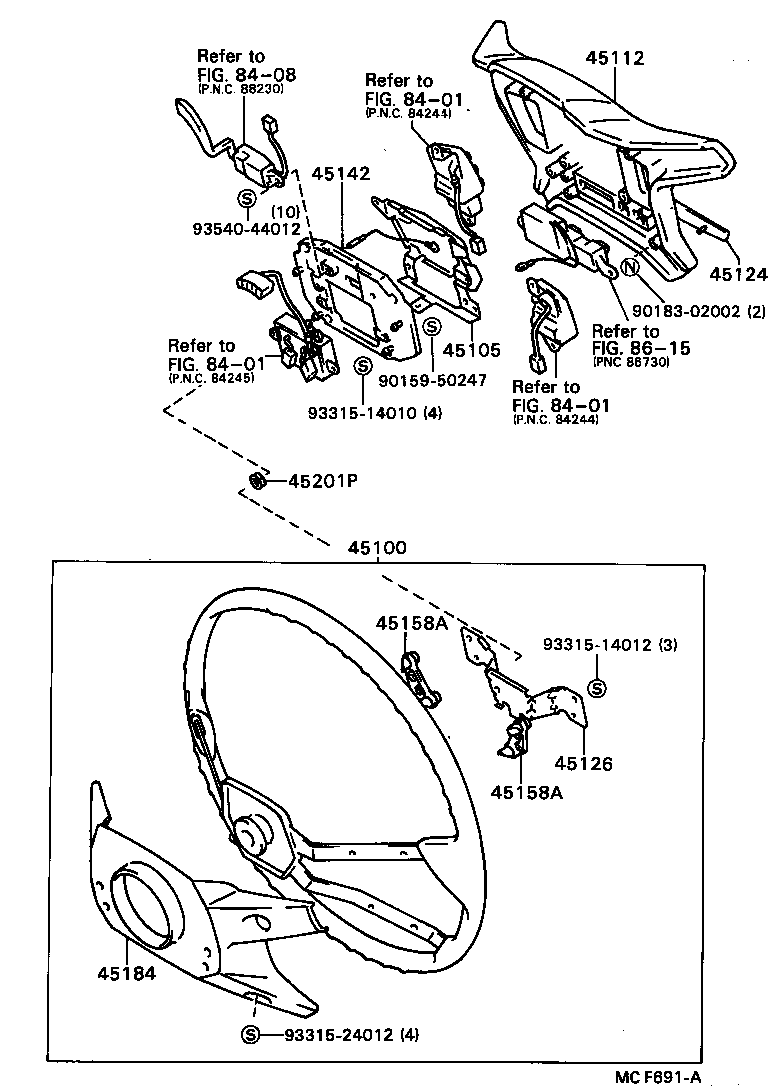

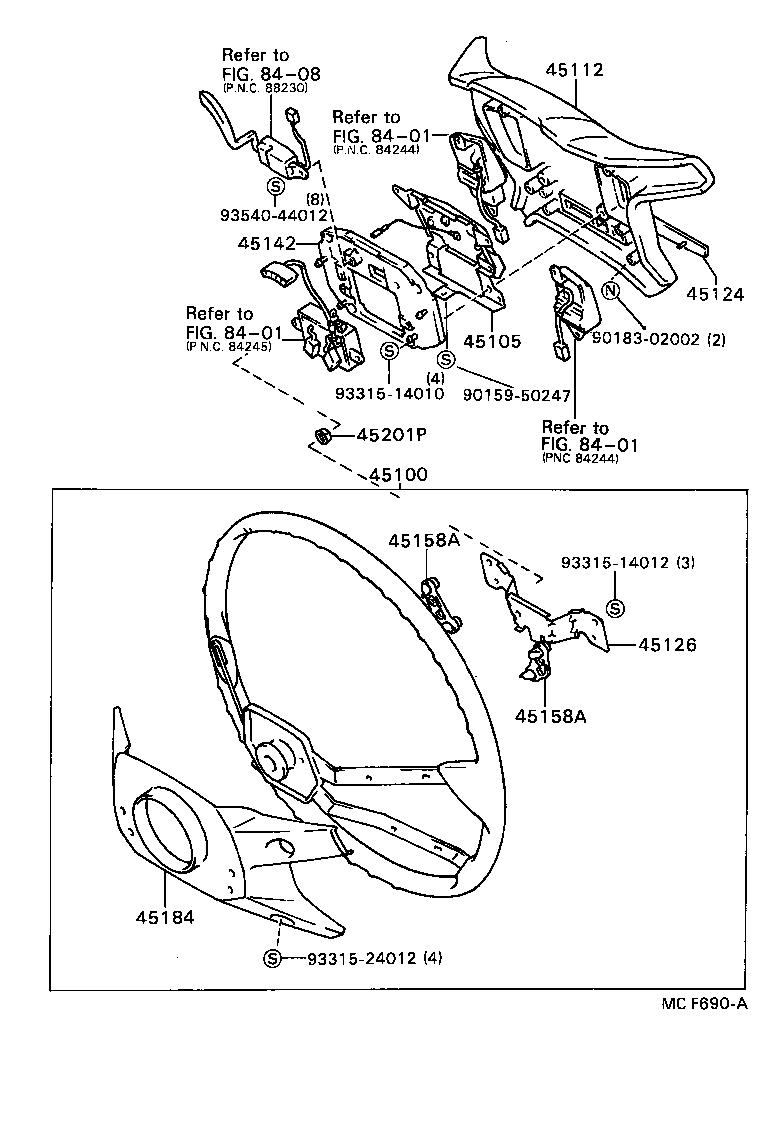

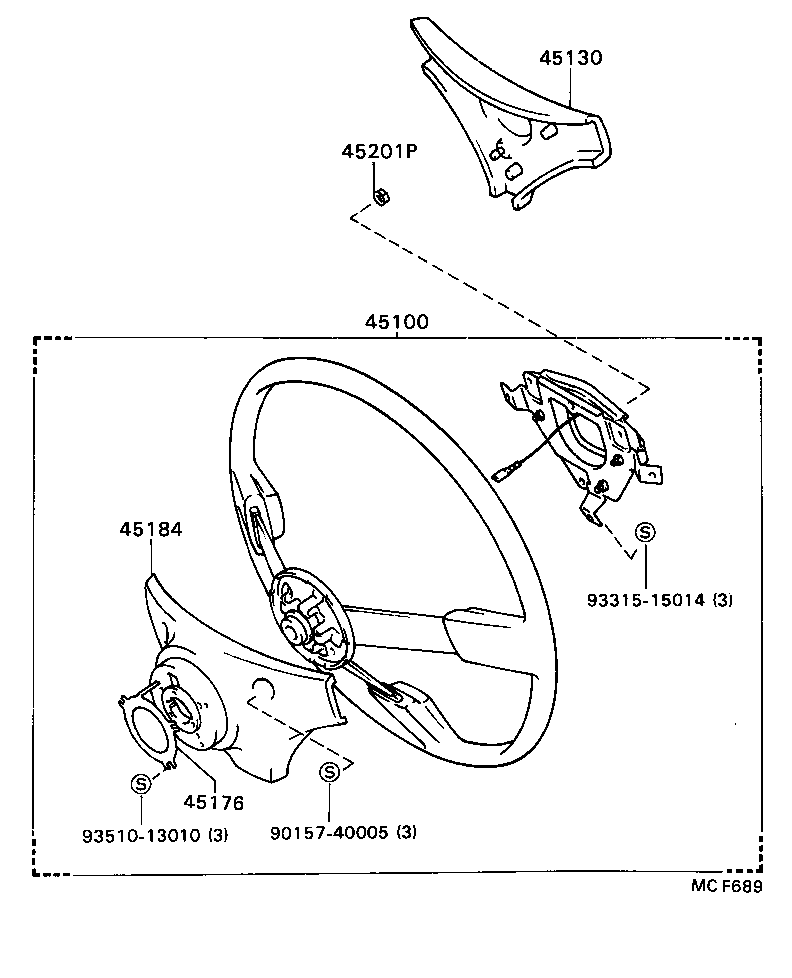

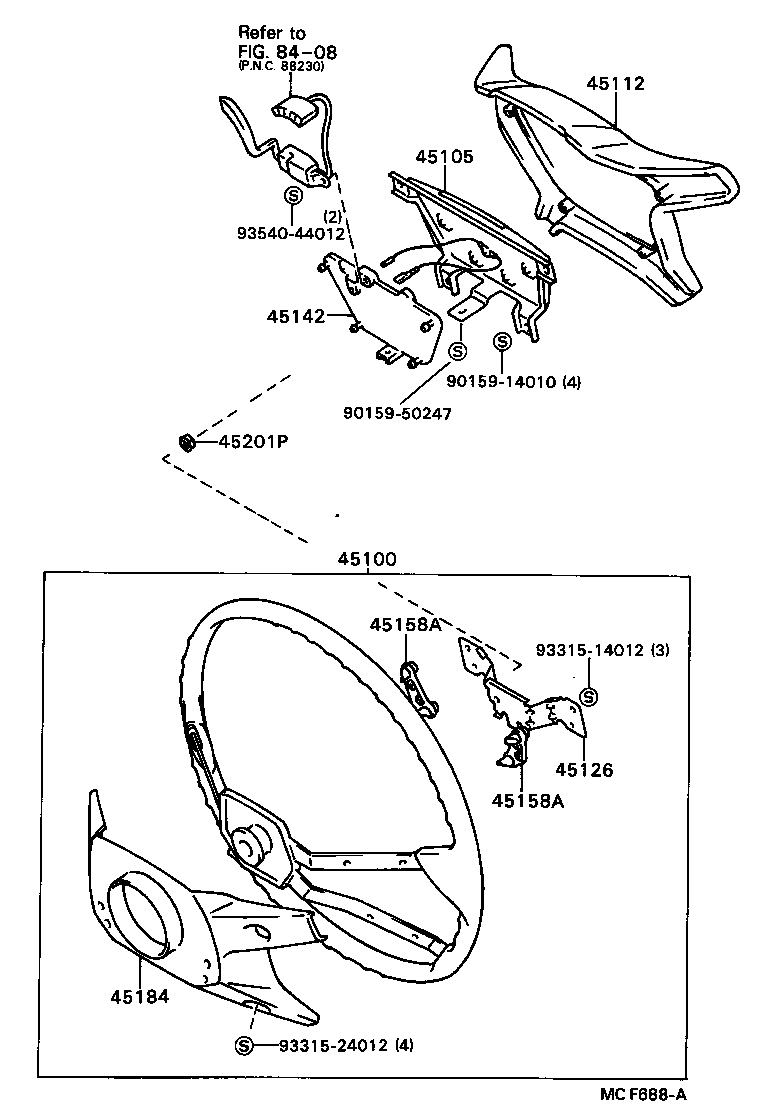

Figure MCF687B MCF687B 1988-01 → — Figure MCF688A MCF688A 1988-01 → — Figure MCF689 MCF689 1988-01 → — Figure MCF690A MCF690A 1988-01 → — Figure MCF691A MCF691A 1988-01 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45112 Pad, Steering Wheel
45124 Ornament, Steering Wheel Mark
45126 Plate, Steering Wheel Pad Set
45130 Button Assy, Horn
45142 Seat, Horn Button Contact, NO.1
45158A Socket, Horn Button Joint
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
