Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

26 part groups · 3 illustrations

Illustrations

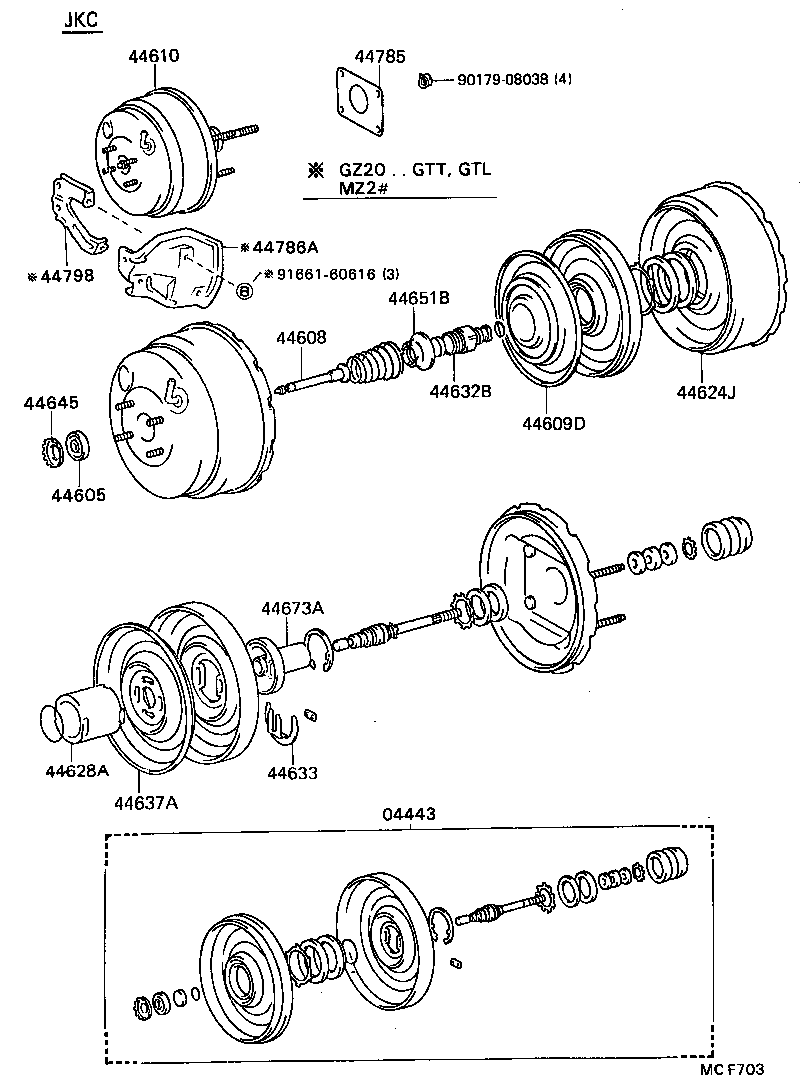

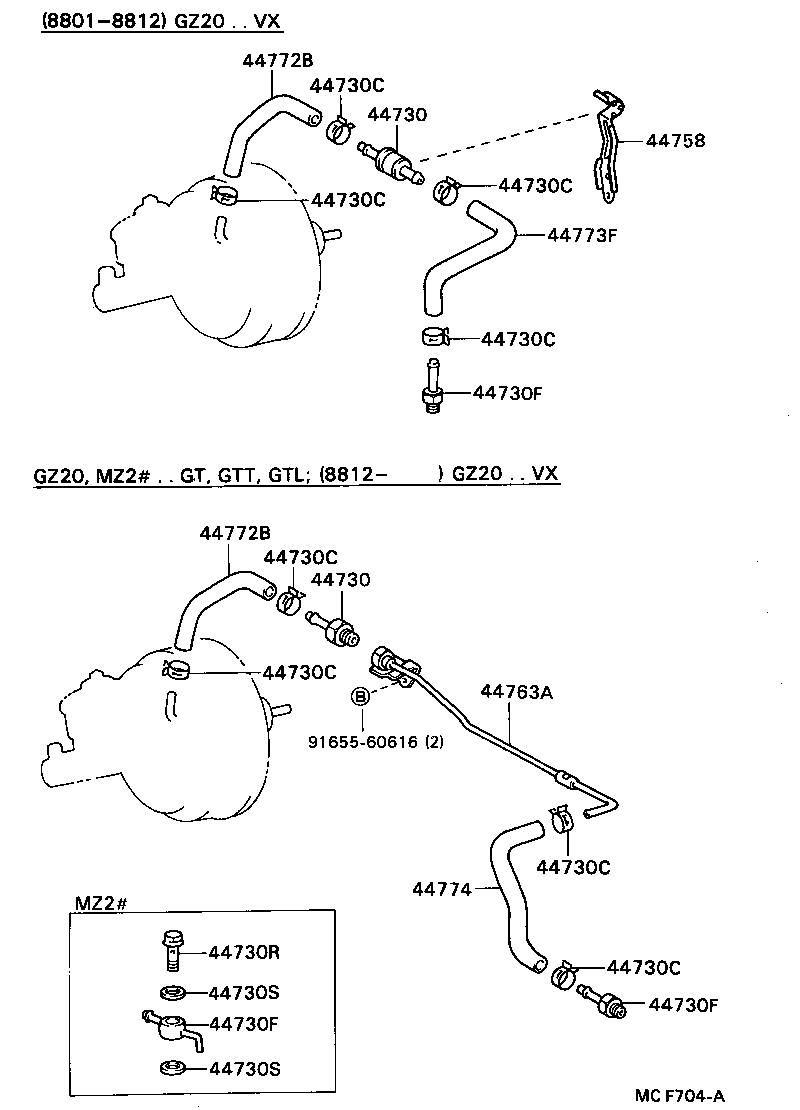

Figure MCF702 MCF702 1988-01 → — Figure MCF703 MCF703 1988-01 → — Figure MCF704A MCF704A 1988-01 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44609D Plate & Retainer Sub-assy, Booster
44610 Booster Assy, Brake
44624J Plate, Booster Center
44628A Body, Booster Center
44632B Hub, Booster Reaction Disk
44633 Key, Booster Valve Plunger
44637A Plate, Booster Diaphragm
44645 Retainer, Booster Push Rod Seal
44651B Nut, Booster
44673A Body, Booster Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44730S Gasket(FOR VACUUM HOSE UNION)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
44786A Insulator, Brake Booster Heat
44798 Bracket, Heat Insulator, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
