Toyota Soarer
1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan
Discontinued model
Data version 1991-10

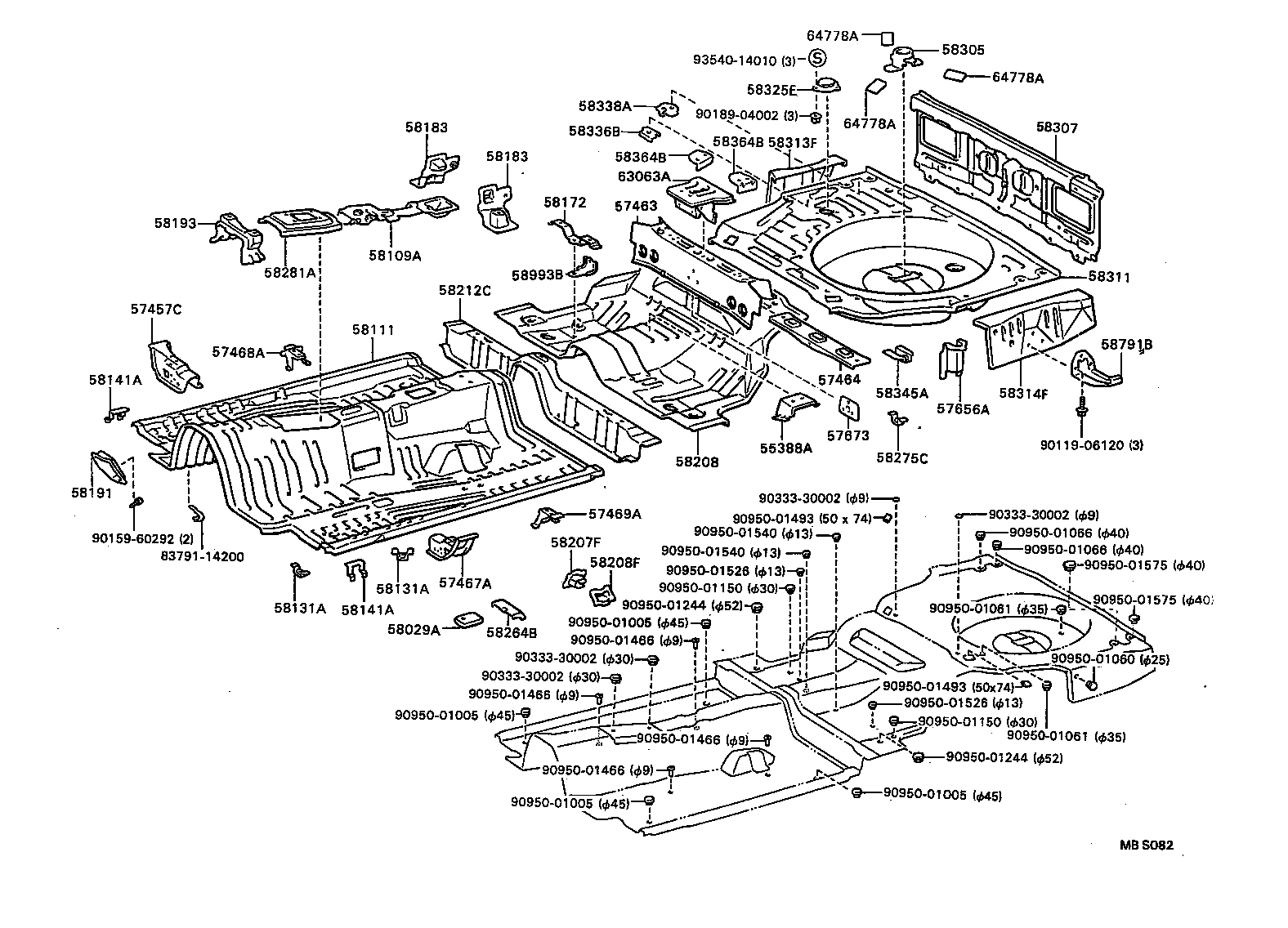

Floor Pan & Lower Back Panel
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55388A | Bracket, Console Mounting, RH |
| 57457C | Bracket, Front Seat Outside Mounting, Front RH |
| 57463 | Member, Center Floor Cross, NO.3 |
| 57464 | Strength, Center Floor Crossmember |
| 57467A | Bracket, Front Seat Outside Mounting, Front LH |
| 57468A | Bracket, Front Seat, Outside, Rear RH |
| 57469A | Bracket, Front Seat, Outside, Rear LH |
| 57656A | Bracket, Exhaust Pipe Mounting, NO.1 |
| 57673 | Bracket, Rear Seatback Hinge Mounting |
| 58029A | Bracket Sub-assy, Parking Brake Wire Clamp |
| 58109A | Retainer Sub-assy, Parking Brake |
| 58111 | Pan, Front Floor |
| 58131A | Bracket, Front Floor Heat Insulator, NO.1 |
| 58141A | Protector, Front Floor Service Hole, NO.1 |
| 58172 | Bracket, Computer Mounting, NO.3 |
| 58183 | Bracket, Front Seat Mounting, Inner |
| 58191 | Footrest, Front Floor |
| 58193 | Bracket, Instrument Panel Brace Mounting |
| 58207F | Clamp Sub-assy, Parking Brake Cable, RH |
| 58208 | Pan, Center Floor |
| 58208F | Clamp Sub-assy, Parking Brake Cable, LH |
| 58212C | Pan, Center Floor, Front |
| 58225A | Bracket, Center Mounting |
| 58264B | Bracket, Parking Brake Cable Guide |
| 58275C | Bracket, Wire Harness Protector |
| 58281A | Cover, Transmission Auxiliary |
| 58286 | Boot, Shift & Select Lever, NO.1 |
| 58293B | Carrier, Display Computer |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58315 | Extension, Rear Floor Panel |
| 58325E | Cover, Rear Floor Service Hole |
| 58336B | Reinforcement, Rear Floor Pan |
| 58338A | Reinforcement, Rear Floor Pan, NO.2 |
| 58345A | Bracket, Rear Floor Heat Insulator, NO.1 |
| 58364B | Bracket, Fuel Tank Support |
| 58791B | Carrier, Jack |
| 58993B | Bracket, Console Box Mounting, Rear |
| 63063A | Bracket Sub-assy, Head Gear, NO.1 |
| 64215A | Extension, Rear Floor TO Package Tray, RH |
| 64216A | Extension, Rear Floor TO Package Tray, LH |
| 64221 | Brace, Rear Seat Cushion Support |
| 64227 | Extension, Center Floor TO Brace |
| 64778A | Protector, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
