Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

24 part groups · 2 illustrations

Illustrations

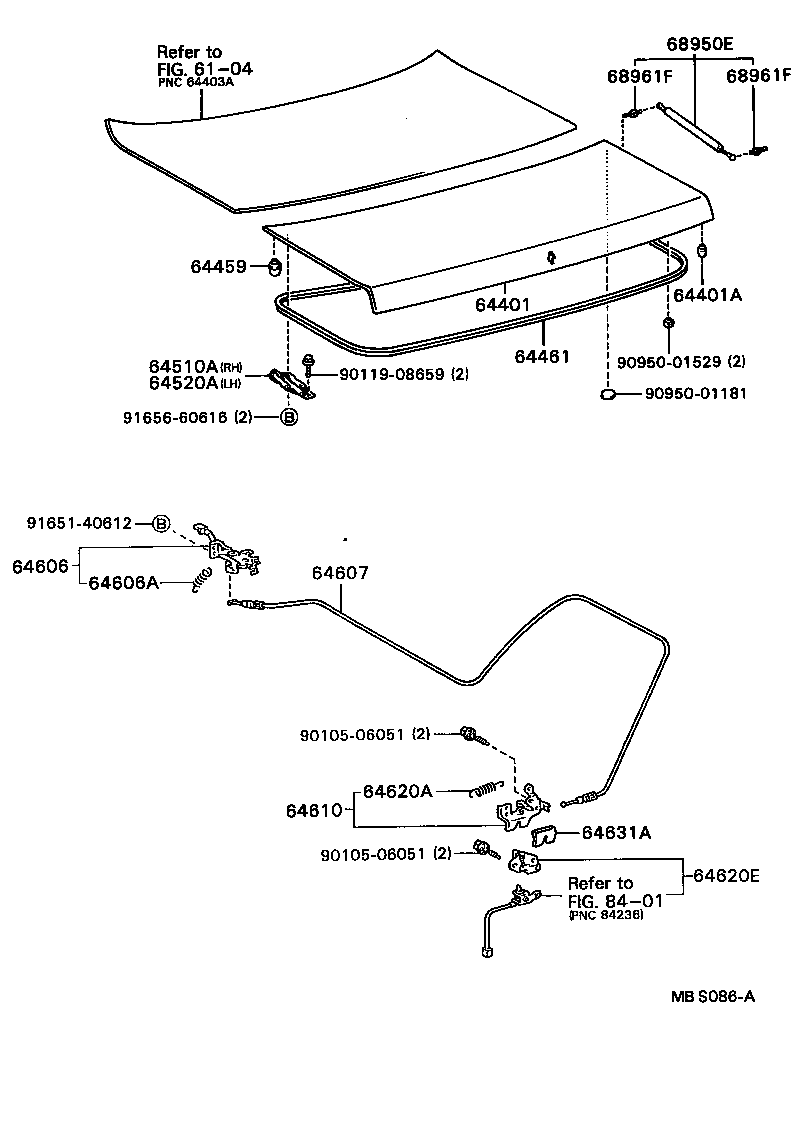

Figure MBM738A MBM738A 1988-01 → — Figure MBS086A MBS086A 1989-04 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64510A Hinge Assy, Luggage Compartment Door, RH
64511 Support, Luggage Compartment Door Hinge, RH
64512 Support, Luggage Compartment Door Hinge, LH
64520A Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64606 Lever Sub-assy, Luggage Door Lock Open
64606A Spring, Tension(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607 Cable Sub-assy, Luggage Door Lock Control
64607A Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607B Clamp, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610 Lock Assy, Luggage Compartment Door
64620A Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64620E Striker Assy, Luggage Compartment Door
64631A Protector, Luggage Door Lock
68950E Stay Assy, Luggage Door
68961F Bolt, Back Door Stay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
