Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10

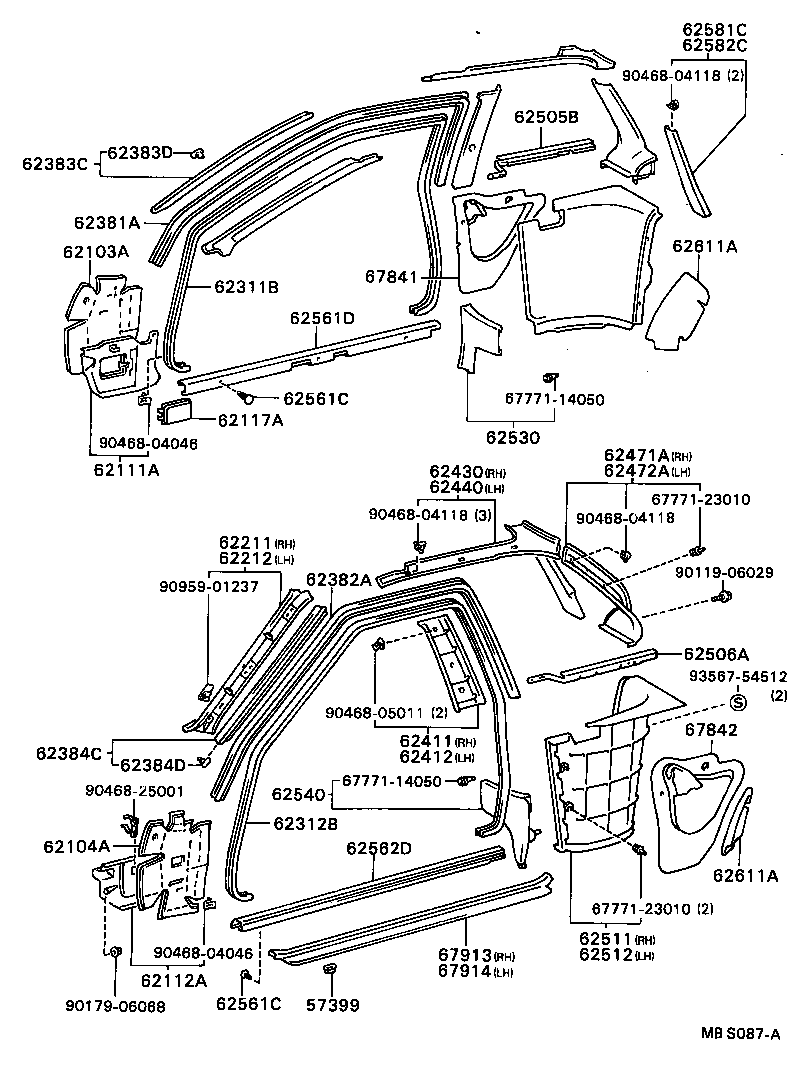

Inside Trim Board & Door Opening Trim Moulding

39 part groups · 2 illustrations

PNC	Description
57399	Cover, Front Step Hole
62103A	Insulator Sub-assy, Cowl Side, RH
62104A	Insulator Sub-assy, Cowl Side, LH
62111A	Trim Sub-assy, Cowl Side, RH
62112A	Trim Sub-assy, Cowl Side, LH
62117A	Cover, Cowl Side Trim Service Hole
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62311B	Weatherstrip, Front Door Opening Trim, RH
62312B	Weatherstrip, Front Door Opening Trim, LH
62381A	Weatherstrip, Roof Side Rail, RH
62382A	Weatherstrip, Roof Side Rail, LH
62383C	Weatherstrip, Roof Side Rail, NO.3 RH
62383D	Retainer, Roof Side Rail, RH
62384C	Weatherstrip, Roof Side Rail, NO.3 LH
62384D	Retainer, Roof Side Rail, LH
62411	Garnish, Center Pillar, RH
62412	Garnish, Center Pillar, LH
62430	Garnish Assy, Roof Side Rail, RH
62440	Garnish Assy, Roof Side Rail, LH
62471A	Garnish, Roof Side, Inner RH
62472A	Garnish, Roof Side, Inner LH
62505B	Moulding Sub-assy, Quarter Trim, RH
62506A	Moulding Sub-assy, Quarter Trim, LH
62511	Board, Quarter Inside Trim, RH
62511B	Clip (FOR QUARTER INSIDE TRIM BOARD)
62512	Board, Quarter Inside Trim, LH
62530	Panel Assy, Quarter Trim, Lower RH
62540	Panel Assy, Quarter Trim, Lower LH
62561C	Clip (FOR ROCKER PANEL INNER PROTECTOR)
62561D	Protector, Rocker Panel, Inner Front RH
62562D	Protector, Rocker Panel, Inner Front LH
62581C	Garnish, Rear Window Side, RH
62582C	Garnish, Rear Window Side, LH
62611A	Pad, Quarter Wheel House
67841	Cover, Quarter Service Hole, NO.1 RH
67842	Cover, Quarter Service Hole, NO.1 LH
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
