Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

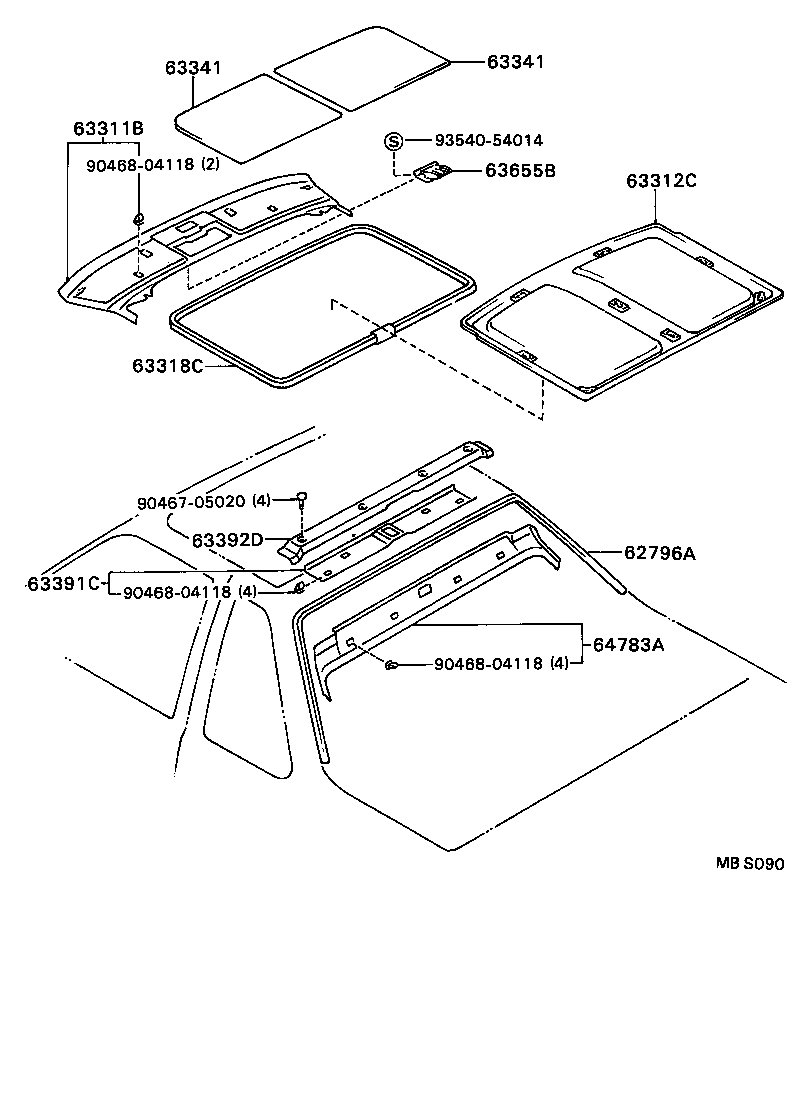

Figure MBM740 MBM740 1988-01 → 1991-04 Figure MBS090 MBS090 1989-04 → 1989-05

Part groups

PNCDescription
62796A Moulding, Side Rear Window
63306 Trim Sub-assy, Sunshade
63311B Headlining, Roof, Front
63312C Headlining, Roof, Rear
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63383C Retainer, Roof Headlining Trim, Rear
63391C Trim, Roof Headlining, NO.1
63392 Trim, Roof Headlining, Rear
63392D Trim, Roof Headlining, NO.2
63655B Handle, Removable Roof Holder
64783A Trim, Back Window Panel, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
