Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

20 part groups · 2 illustrations

Illustrations

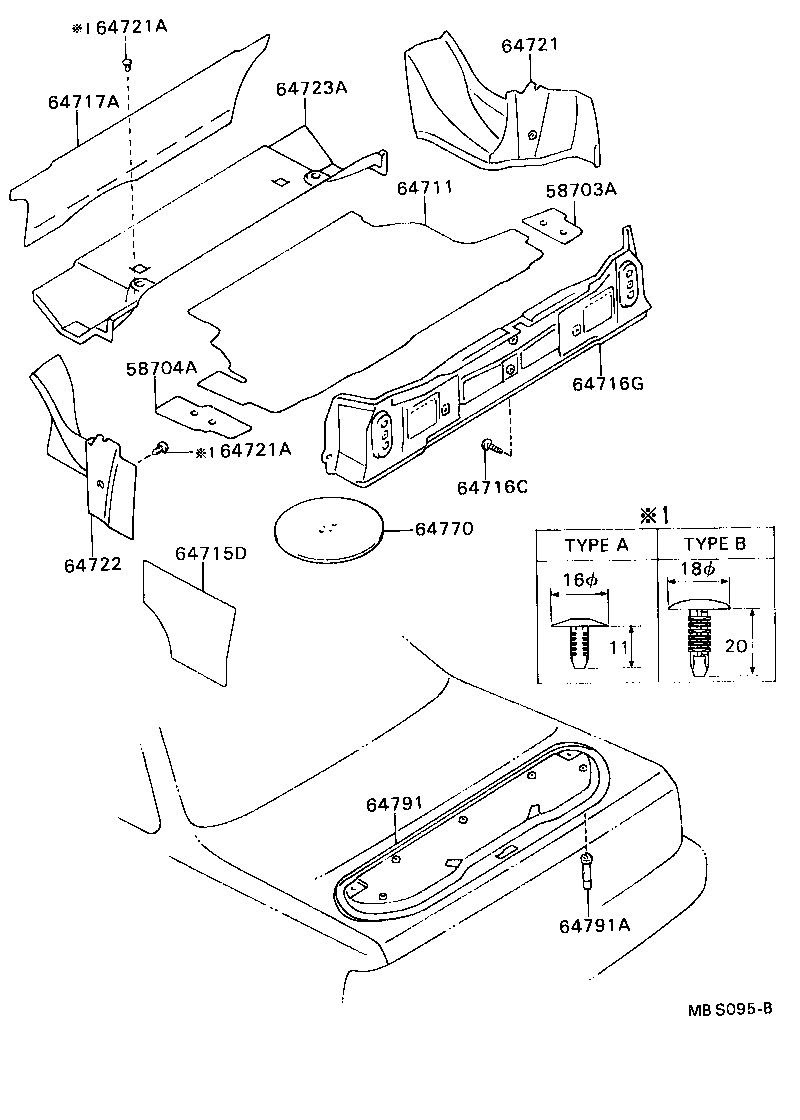

Figure MBM741B MBM741B 1988-01 → 1991-04 Figure MBS095B MBS095B 1989-04 → 1989-05

Part groups

PNCDescription
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
64033B Grille Sub-assy, Rear Speaker, RH
64034B Grille Sub-assy, Rear Speaker, LH
64270C Board Assy, Room Partition
64271A Retainer, Room Partition Board
64330 Panel Assy, Package Tray Trim
64711 Mat, Luggage Compartment Floor
64715D Cover, Luggage Compartment Trim, Side, LH
64716C Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716G Cover, Luggage Compartment Trim, Rear
64717A Cover, Luggage Compartment Trim, Front
64717B Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64721 Cover, Luggage Compartment Trim, Inner RH
64721A Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722 Cover, Luggage Compartment Trim, Inner LH
64723A Cover, Luggage Compartment Trim, Inner Lower
64770 Cover Assy, Spare Wheel
64791 Cover, Back Door Trim
64791A Clip(FOR BACK DOOR TRIM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
