Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

12 part groups · 2 illustrations

Illustrations

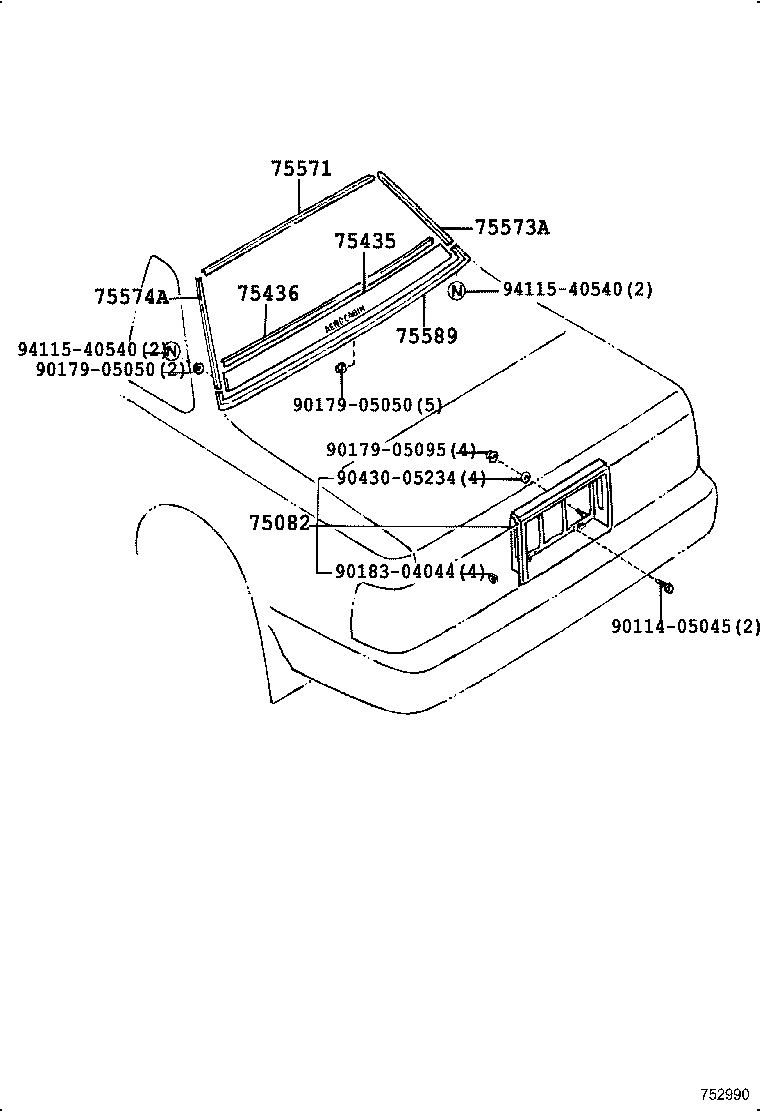

Figure 752989 752989 1988-01 → — Figure 752990 752990 1989-04 → —

Part groups

PNCDescription
75049A Clip Sub-assy, Outside Moulding, NO.2
75059D Clip Sub-assy, Outside Moulding, NO.3
75082 Panel Sub-assy, Lower Back Finish, Center
75435 Ornament, Back Door
75436 Protector, Back Door Ornament
75548B Fastener, Back Window Outside Moulding
75549 Fastener, Back Window Outside Moulding, NO.2
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
75589 Moulding, Back Window Outside, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
