Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 11 illustrations

Illustrations

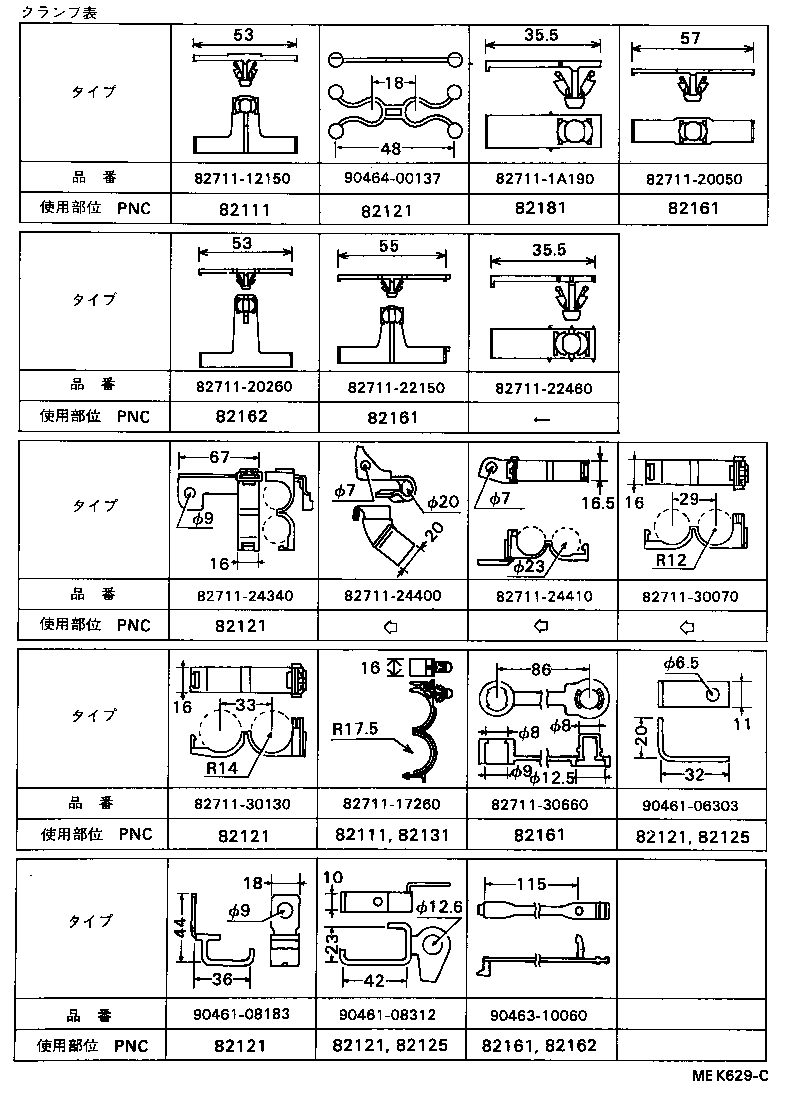

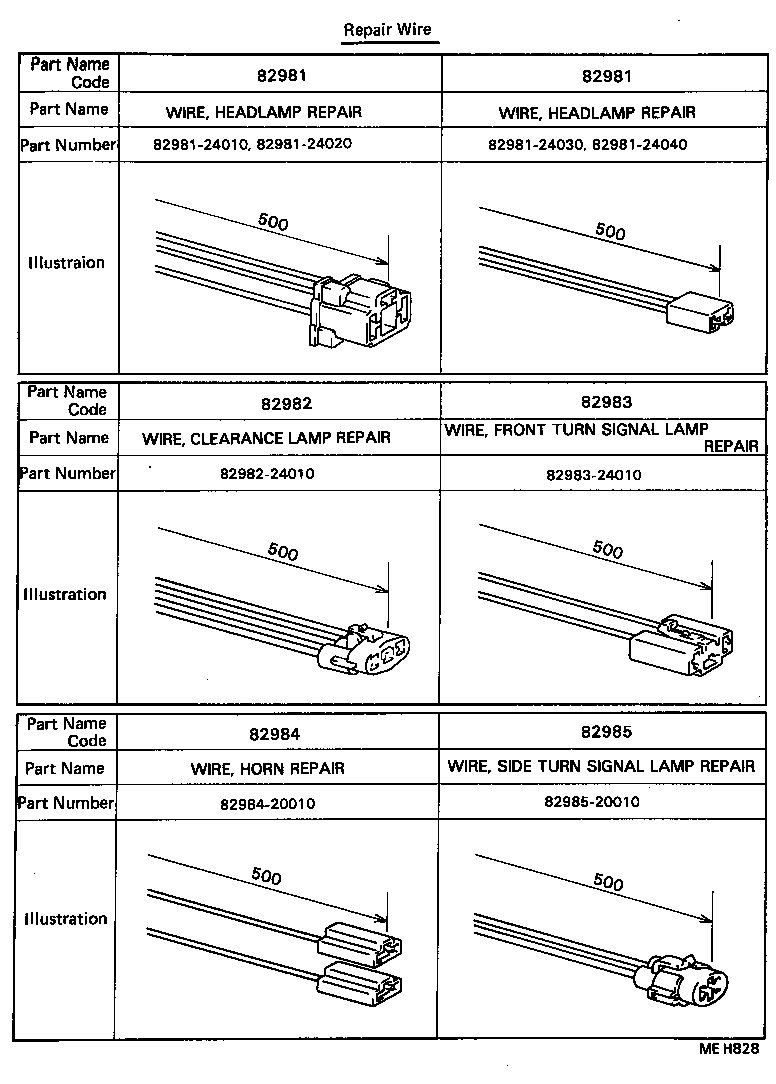

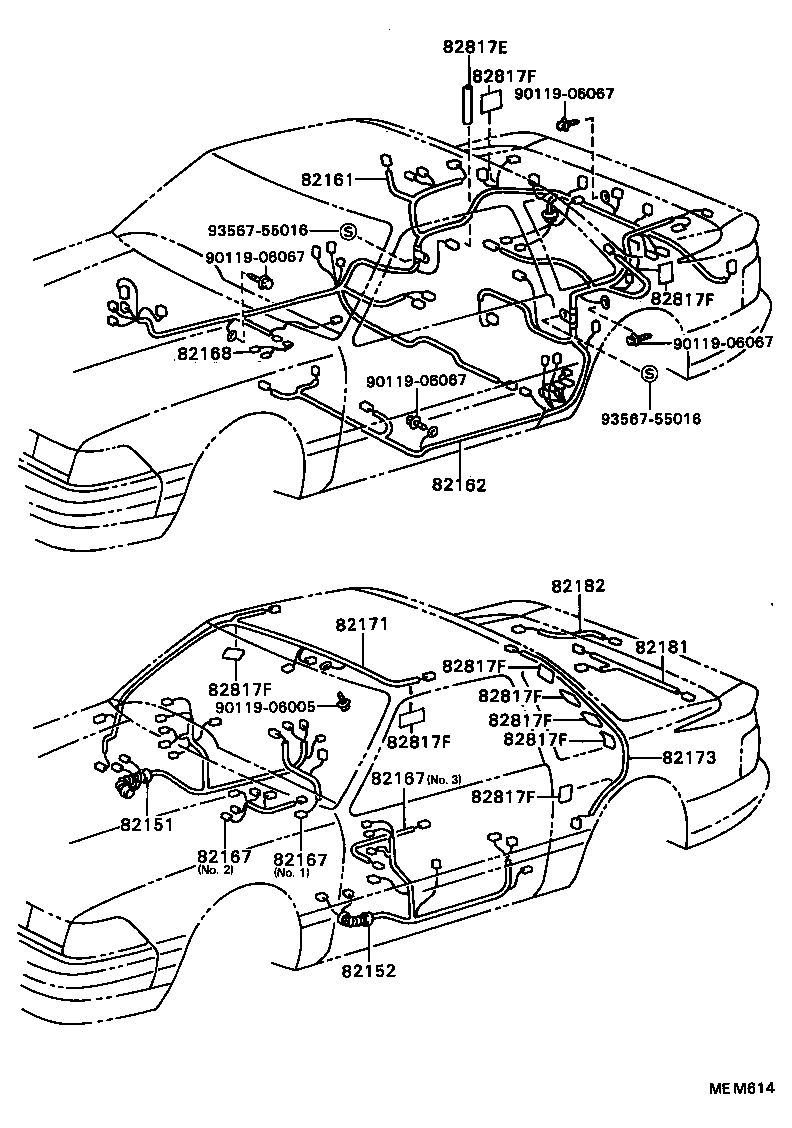

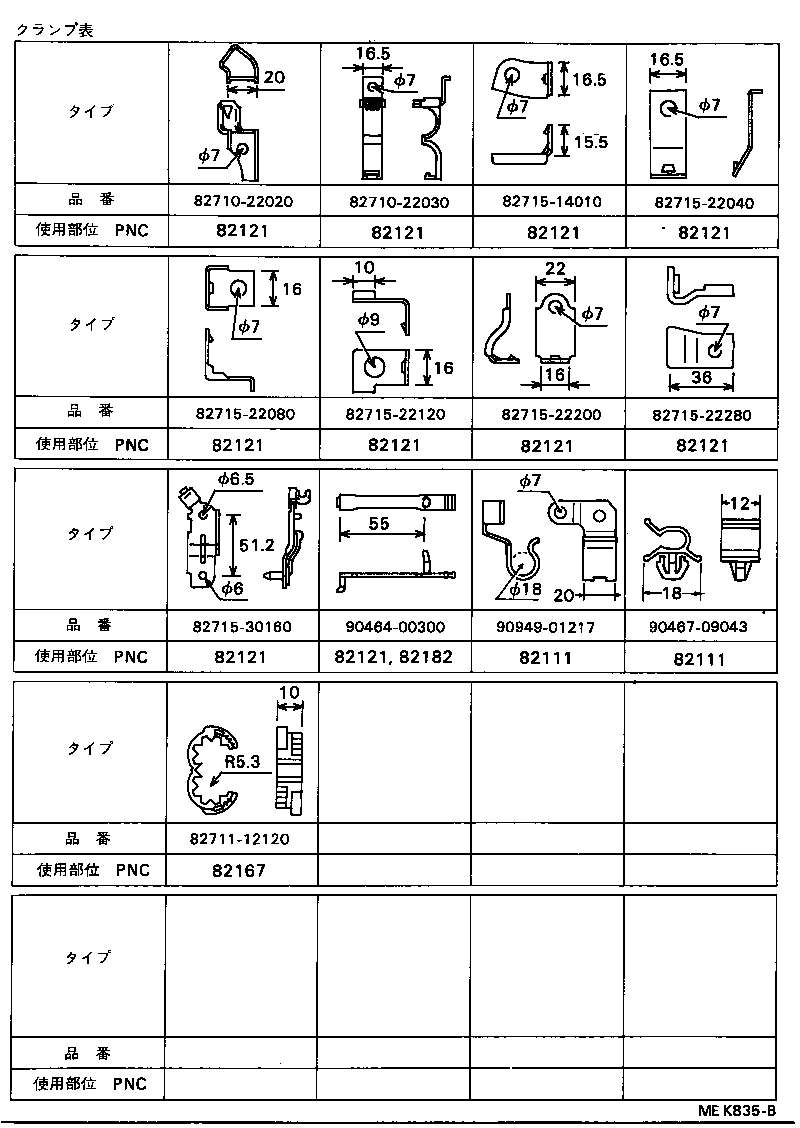

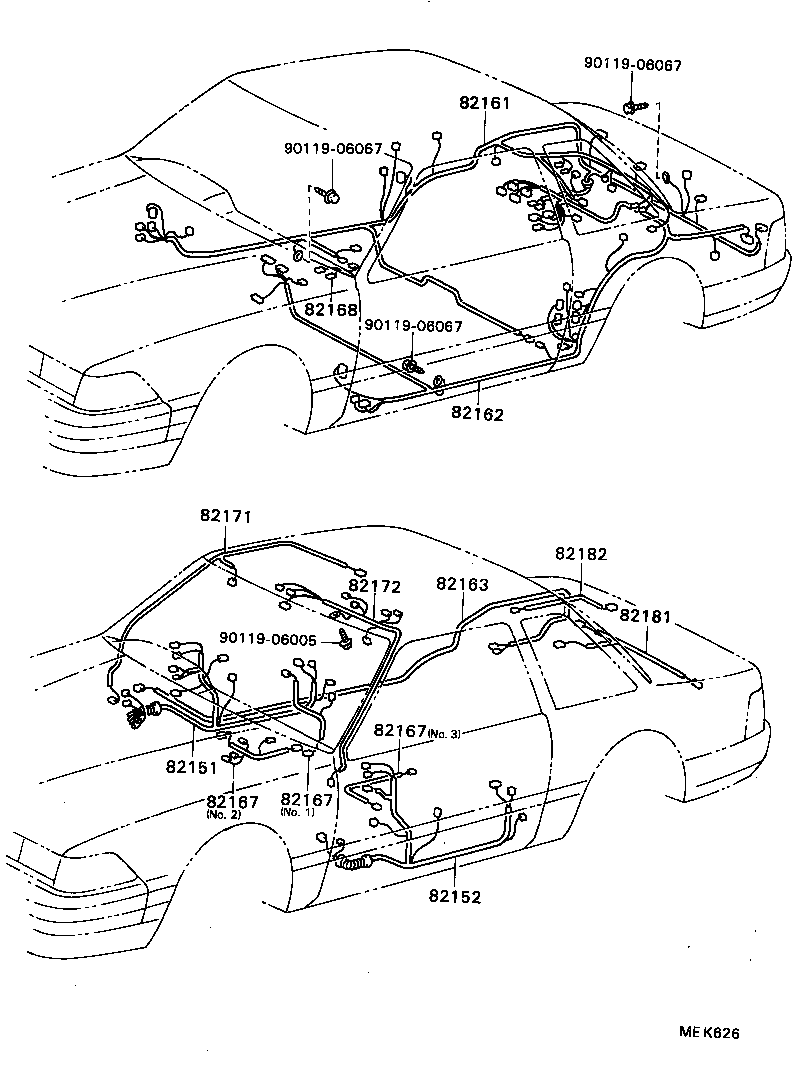

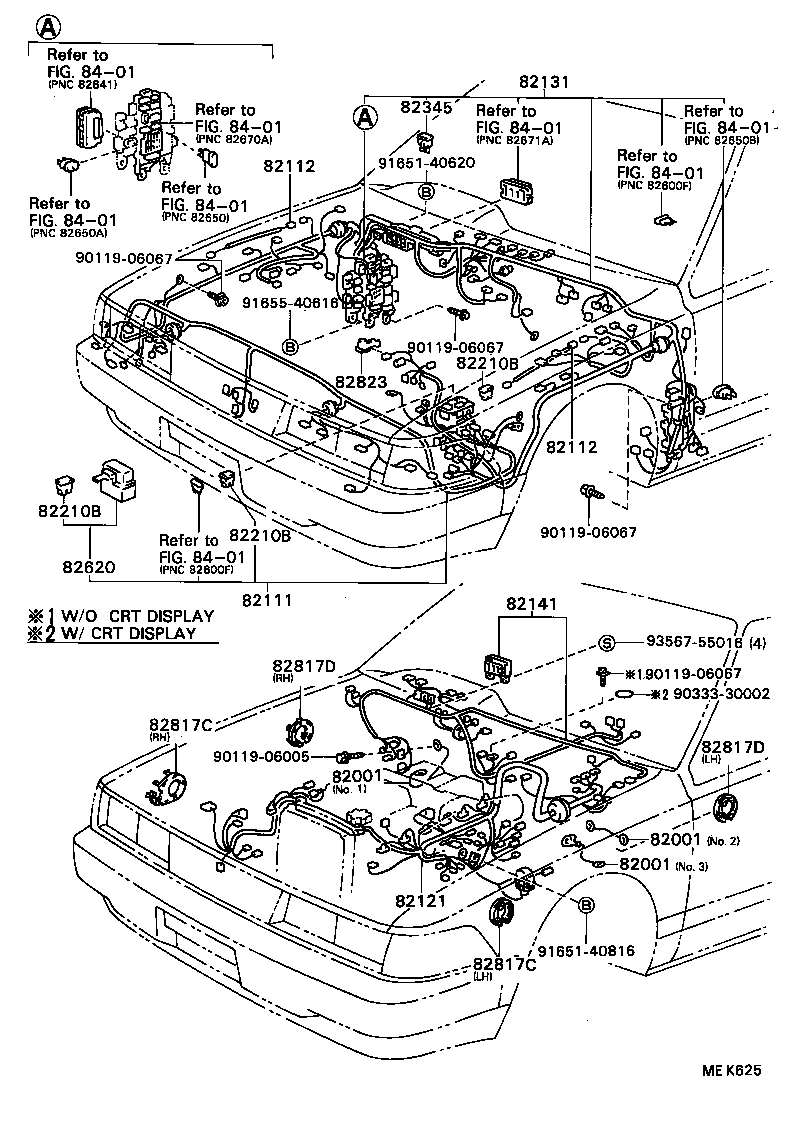

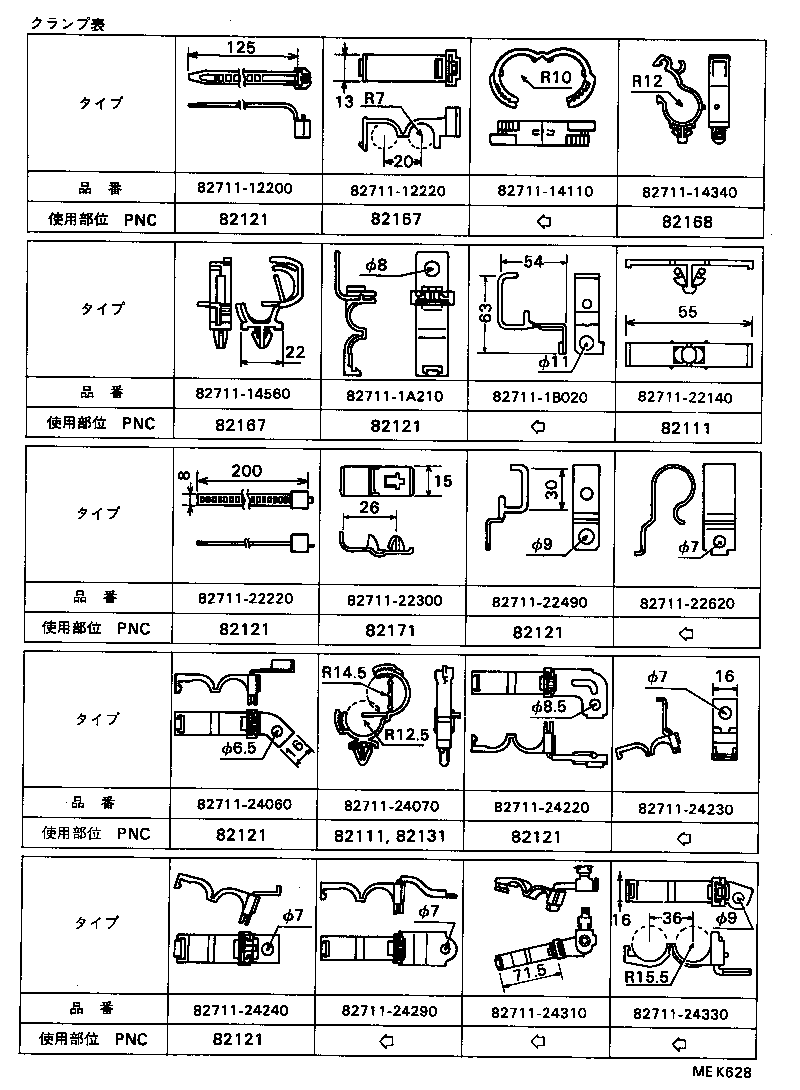

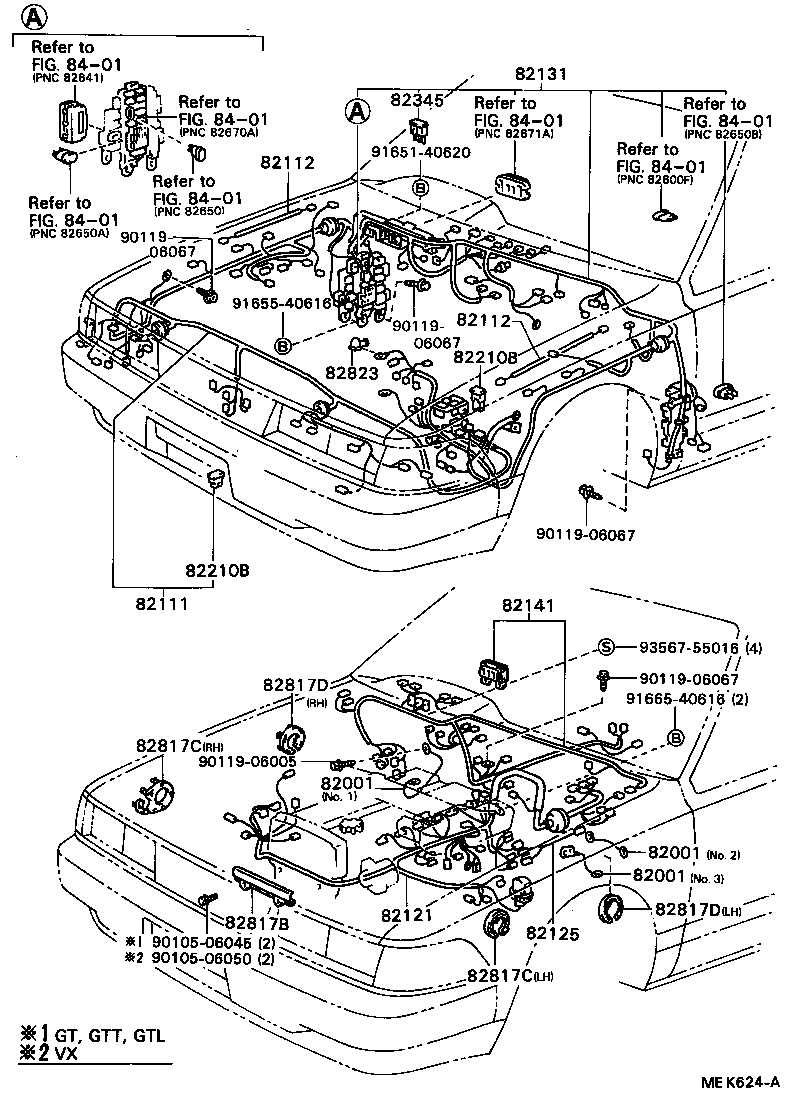

Figure MEK623 MEK623 1988-01 → — Figure MEK624A MEK624A 1988-01 → — Figure MEK625 MEK625 1988-01 → — Figure MEK626 MEK626 1988-01 → — Figure MEM614 MEM614 1989-04 → 1989-05 Figure MEK839A MEK839A 1988-01 → — Figure MEH828 MEH828 1988-01 → — Figure MEK627 MEK627 1988-01 → — Figure MEK628 MEK628 1988-01 → — Figure MEK629C MEK629C 1988-01 → — Figure MEK835B MEK835B 1988-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82210B Fusible Link
82345 Diode
82620 Block Assy, Fusible Link
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
