Toyota Soarer
1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan
Discontinued model
Data version 1991-10
Cruise Control (AUTO DRIVE)

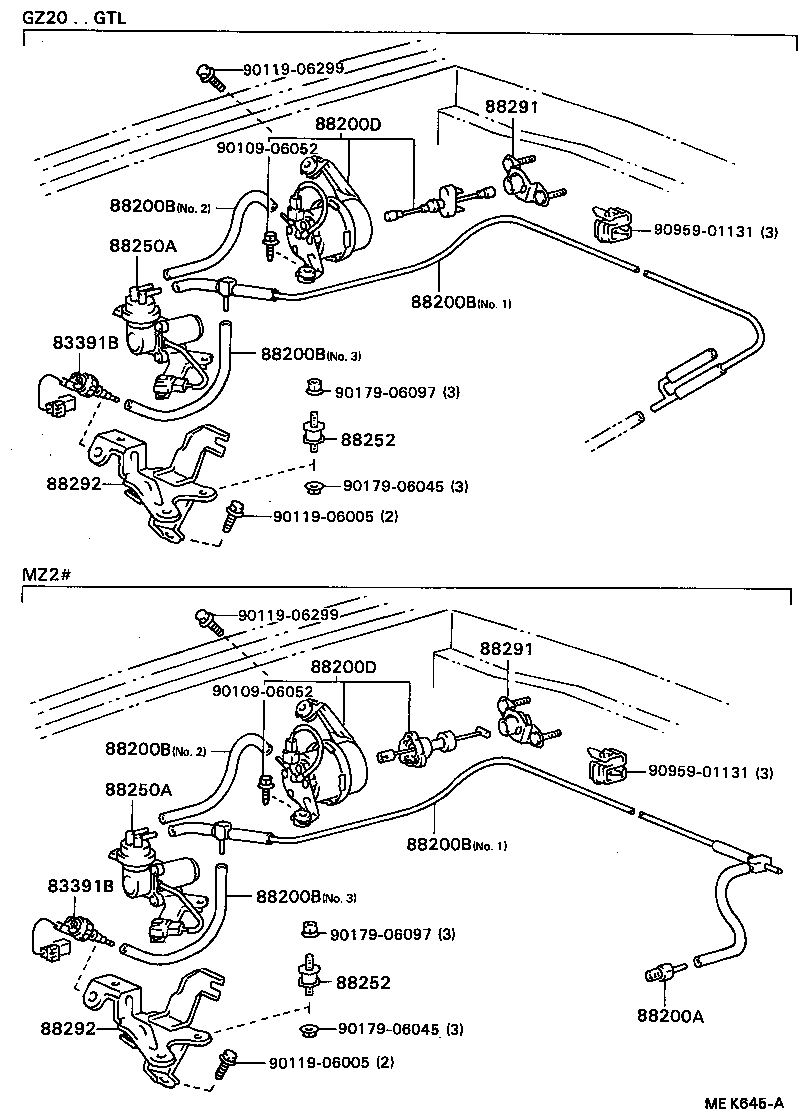

14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83391B | Switch, Auto Drive Vacuum |
| 84630 | Switch Assy, Cruise Control Main |
| 84630B | Bulb(FOR CRUISE CONTROL SWITCH) |
| 88200A | Union OR Way, Cruise Control Vacuum |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88230 | Switch Assy, Cruise Control(AUTO DRIVE) Control |
| 88235 | Switch Assy, Cruise Control(AUTO DRIVE) Release |
| 88240 | Computer Assy, Cruise Control |
| 88250A | Pump Assy, Cruise Control |
| 88252 | Cushion, Vacuum Pump |
| 88290A | Bellcrank Assy, Cruise Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
| 88292 | Bracket, Cruise Control(AUTO DRIVE), NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
