Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

21 part groups · 2 illustrations

Illustrations

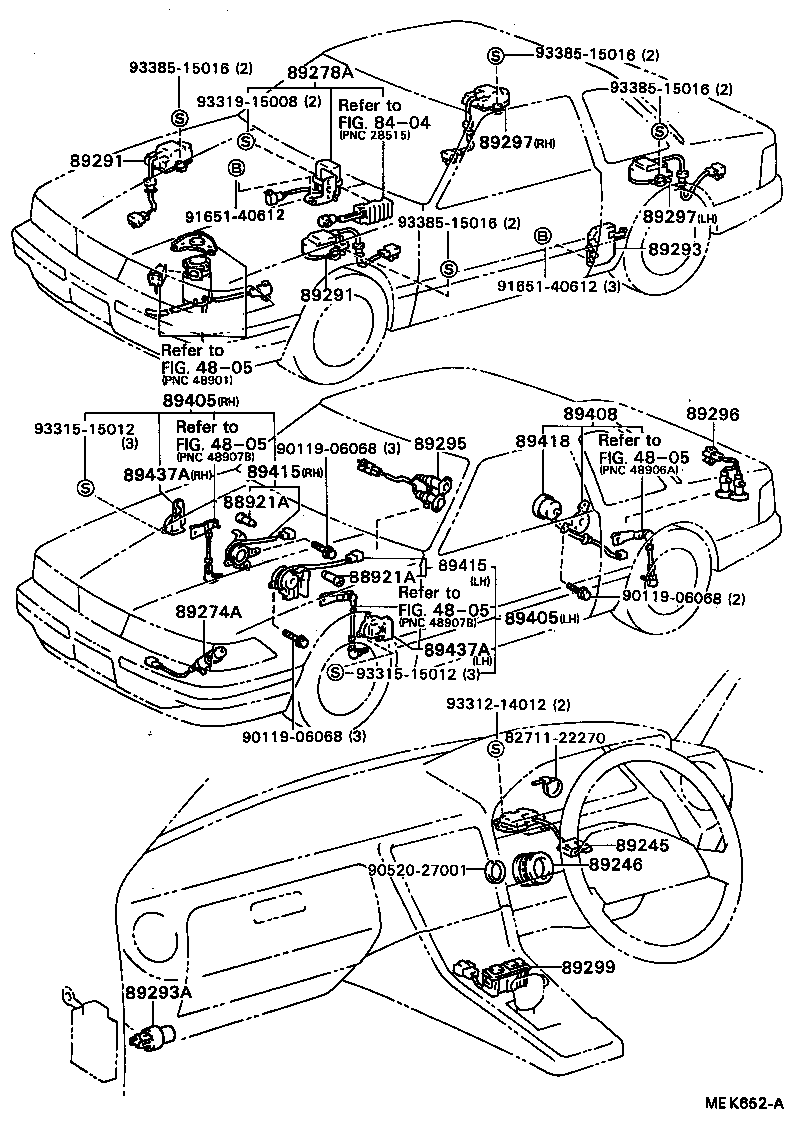

Figure MEH053A MEH053A 1988-01 → — Figure MEK652A MEK652A 1988-01 → —

Part groups

PNCDescription
88921A Filter, Air
89241B Actuator, Absorber Control
89242 Actuator, Absorber Control, RR
89243 Computer, Absorber Control
89245 Sensor, Steering
89246 Disc, Sensor Steering
89249 Switch, Absorber Control
89274A Solenoid, Air Valve
89278A Relay, Height Control
89291 Actuator, Suspension Control, Front
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89295 Solenoid, Suspension Control, Front
89296 Solenoid, Suspension Control, Rear
89297 Actuator, Suspension Control, Rear
89299 Switch, Suspension Control
89405 Sensor Sub-assy, Height Control, Front
89408 Sensor Sub-assy, Height Control, Rear
89415 Sensor, Height Control, Front
89418 Sensor, Height Control, Rear
89437A Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
