Toyota Soarer
1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan
Discontinued model
Data version 1991-10
Antenna

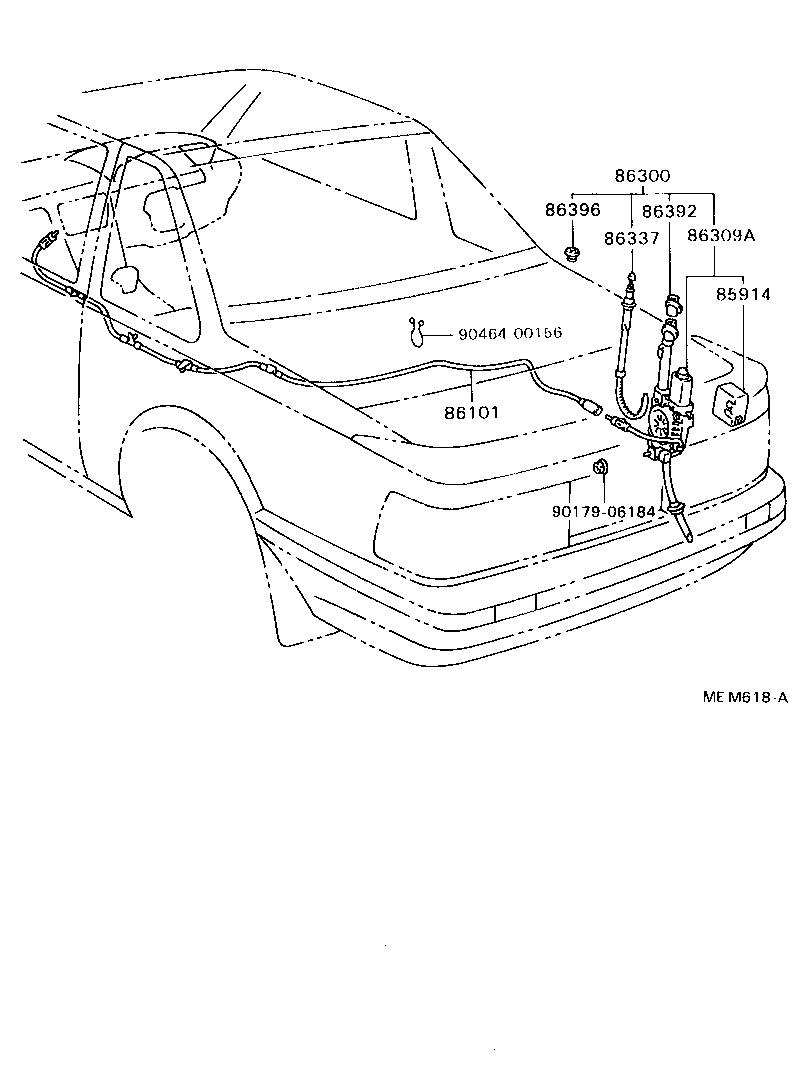

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85914 | Relay, Motor Antenna Control |
| 86050 | Antenna Assy, Television |
| 86101 | Cord Sub-assy, Antenna |
| 86300 | Antenna Assy, W/Holder |
| 86300C | Antenna Assy, Amplifier, NO.2 |
| 86309A | Pole Sub-assy, Motor Antenna |
| 86337 | Rod & Pipe, Sealed W/Cable |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
