Toyota Soarer
1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan
Discontinued model
Data version 1991-10

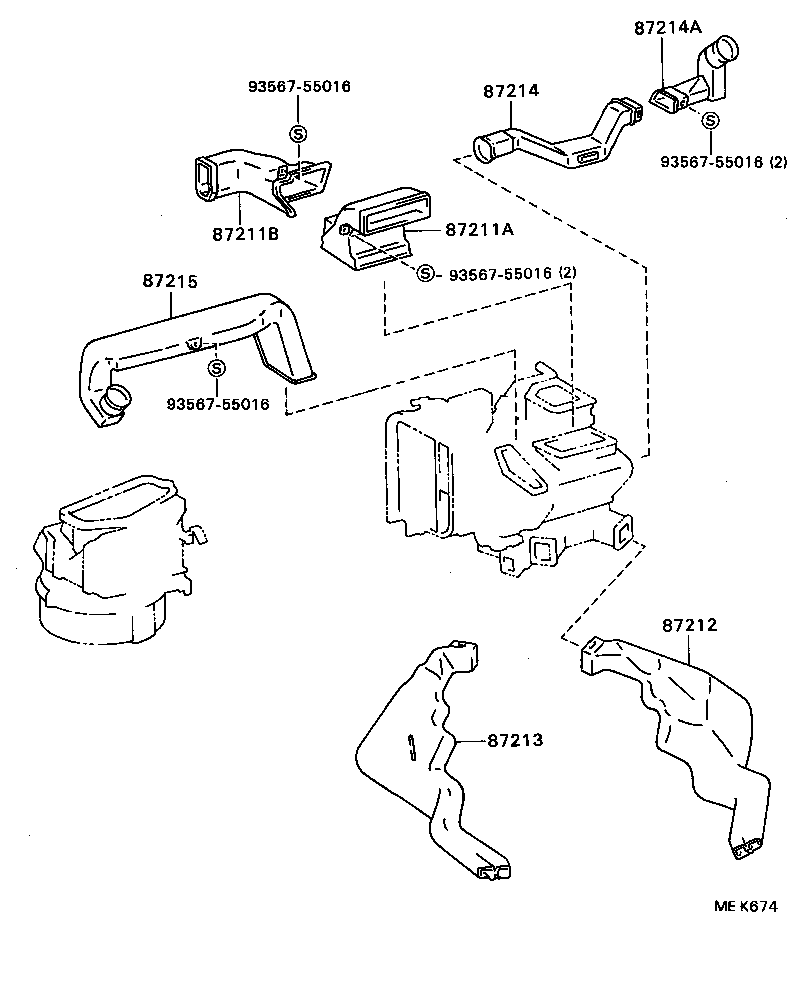

Heating & Air Conditioning - Control & Air Duct
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55900 | Control Assy, Air Conditioner |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214 | Duct, Air, Side NO.1 RH |
| 87214A | Duct, Air, Side NO.2 RH |
| 87215 | Duct, Air, Side NO.1 LH |
| 88625C | Thermistor, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
