Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

11 part groups · 3 illustrations

Illustrations

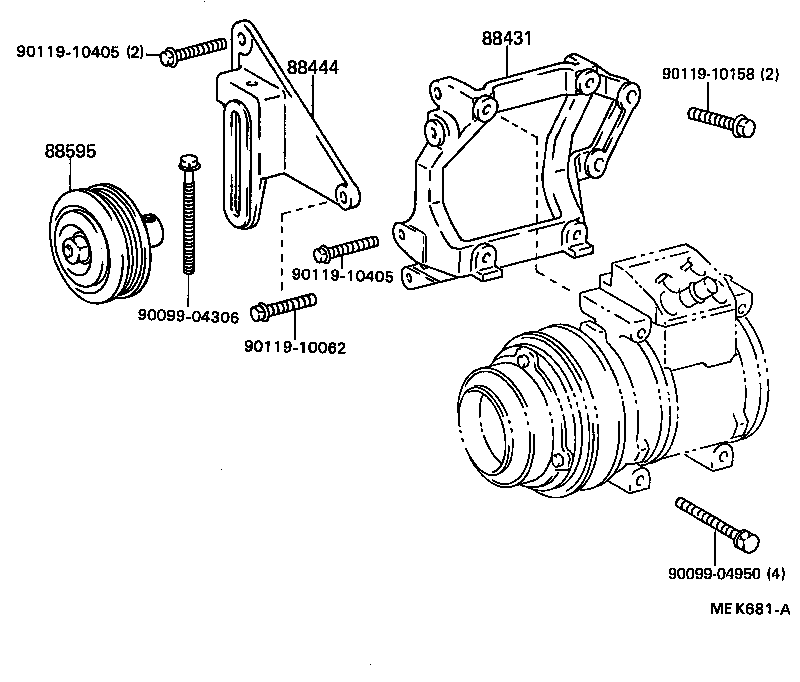

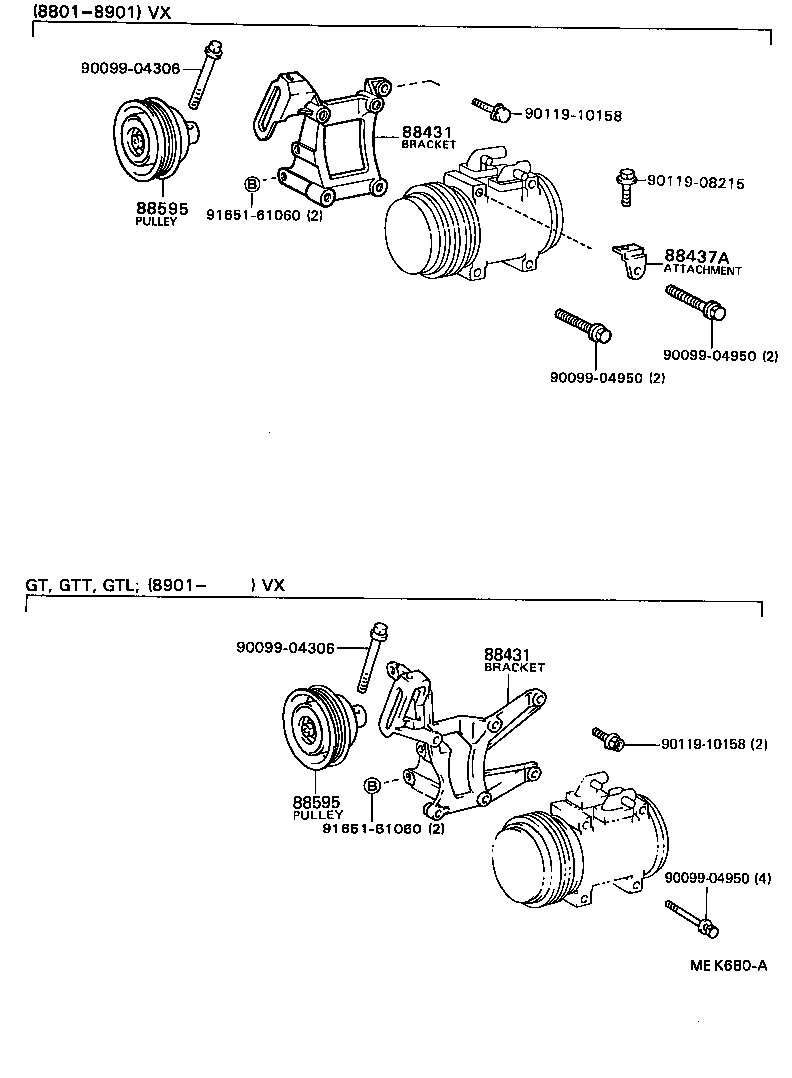

Figure MEK679B MEK679B 1988-01 → — Figure MEK680A MEK680A 1988-01 → — Figure MEK681A MEK681A 1988-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88437A Attachment, Compressor
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88596A Plate, Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
