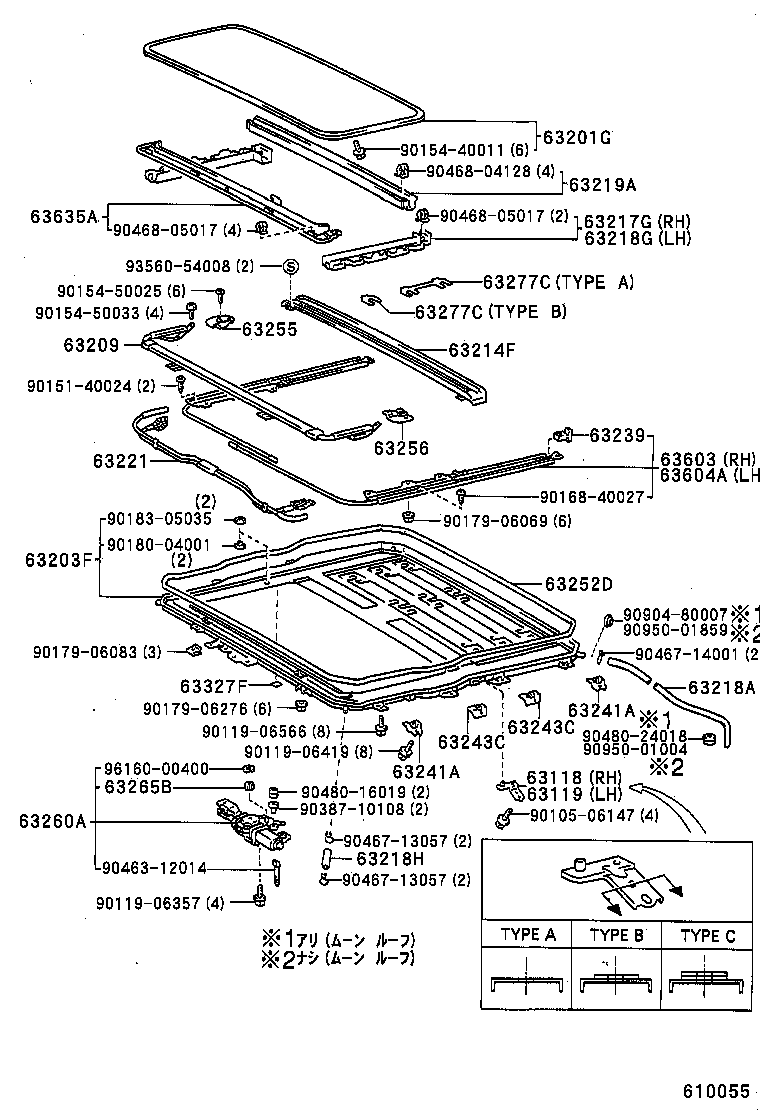

Exploded illustration 610055A 63201G — GLASS SUB-ASSY, SLIDING ROOF (2 parts) 9015440011 — not listed in this catalogue 9046804128 — not listed in this catalogue 63219A — GARNISH, SLIDING ROOF, REAR (5 parts) 63635A — GARNISH, SLIDING ROOF, FRONT (7 parts) 9046805017 — not listed in this catalogue 63217G — GARNISH, SLIDING ROOF SIDE, RH (5 parts) 9046805017 — not listed in this catalogue 63218G — GARNISH, SLIDING ROOF SIDE, LH (5 parts) 9356054008 — not listed in this catalogue 63277C — SHIM, SLIDING ROOF PANEL (6 parts) 9015450025 — not listed in this catalogue 63277C — SHIM, SLIDING ROOF PANEL (6 parts) 9015450033 — not listed in this catalogue 63255 — COVER, SLIDING ROOF GUIDE RAIL, RH (1 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (1 parts) 63214F — CHANNEL, ROOF DRIP, REAR (1 parts) 9015140024 — not listed in this catalogue 63239 — STOPPER, SLIDING ROOF PANEL (1 parts) 63256 — COVER, SLIDING ROOF GUIDE RAIL, LH (1 parts) 63603 — RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH (2 parts) 63221 — CASING, SLIDING ROOF CABLE GUIDE (2 parts) 63604A — RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH (2 parts) 9016840027 — not listed in this catalogue 9018305035 — not listed in this catalogue 9017906069 — not listed in this catalogue 9018004001 — not listed in this catalogue 63203F — HOUSING SUB-ASSY, SLIDING ROOF (1 parts) 63252D — WEATHERSTRIP, SLIDING ROOF HOUSING (1 parts) 9090480007 — not listed in this catalogue 9095001859 — not listed in this catalogue 9017906083 — not listed in this catalogue 9046714001 — not listed in this catalogue 63327F — FASTENER, ROOF HEADLINING, NO.1 (2 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (2 parts) 9017906276 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (1 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (1 parts) 9011906566 — not listed in this catalogue 9048024018 — not listed in this catalogue 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (1 parts) 9095001004 — not listed in this catalogue 9011906419 — not listed in this catalogue 9616000400 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (1 parts) 63118 — SUPPORT, ROOF PANEL, RH (3 parts) 63265B — GEAR, SLIDING ROOF DRIVE (1 parts) 9048016019 — not listed in this catalogue 63119 — SUPPORT, ROOF PANEL, LH (3 parts) 9038710108 — not listed in this catalogue 9010506147 — not listed in this catalogue 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (1 parts) 9046713057 — not listed in this catalogue 63218H — HOSE, SLIDING ROOF DRAIN (1 parts) 9046312014 — not listed in this catalogue 9046713057 — not listed in this catalogue 9011906357 — not listed in this catalogue
610055A · 28 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
63118 — Support, Roof Panel, RH
63118-24010 note Support, Roof Panel, RH
1991-05 → —
JZZ3#,UZZ3# ¥670
63118-24020 note Support, Roof Panel, RH
1991-05 → —
JZZ3#,UZZ3# ¥750
63118-24030 note Support, Roof Panel, RH
1991-05 → —
JZZ3#,UZZ3# ¥820
63119 — Support, Roof Panel, LH
63119-24010 note Support, Roof Panel, LH
1991-05 → —
JZZ3#,UZZ3# ¥670
63119-24020 note Support, Roof Panel, LH
1991-05 → —
JZZ3#,UZZ3# ¥750
63119-24030 note Support, Roof Panel, LH
1991-05 → —
JZZ3#,UZZ3# ¥820
63201G — Glass Sub-assy, Sliding Roof
63201-24060 note Glass Sub-assy, Sliding Roof
1991-05 → 1996-08 ended
JZZ3#,UZZ3# ¥129,000
63201-24090 note Glass Sub-assy, Sliding Roof
1996-08 → —
JZZ3#,UZZ31 ¥122,000
63203F — Housing Sub-assy, Sliding Roof
63203-24040 Housing Sub-assy, Sliding Roof
1991-05 → —
JZZ3#,UZZ3# ¥27,900
63209 — Panel Sub-assy, Roof Wind Deflector
63209-24020 Panel Sub-assy, Roof Wind Deflector
1991-05 → —
JZZ3#,UZZ3# ¥19,200
63214F — Channel, Roof Drip, Rear
63214-24020 Channel, Roof Drip, Rear
1991-05 → —
JZZ3#,UZZ3# ¥4,810
63217G — Garnish, Sliding Roof Side, RH
63217-24020-03 note Garnish, Sliding Roof Side, RH
1991-05 → 1994-01 ended
JZZ30,UZZ3# ¥3,060
63217-24020-07 note Garnish, Sliding Roof Side, RH
1991-05 → 1998-08 ended
JZZ3#,UZZ3# ¥3,060
63217-24020-08 note Garnish, Sliding Roof Side, RH
1991-05 → —
JZZ3#,UZZ3# ¥3,060
63217-24020-B0 note Garnish, Sliding Roof Side, RH
1994-01 → 1998-08 ended
JZZ3#,UZZ3# ¥3,060
63217-24020-B1 note Garnish, Sliding Roof Side, RH
1998-08 → —
JZZ3# ¥3,060
63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-24060 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1995-05 → —
JZZ3#,UZZ3# ¥1,400
63249-30040 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1991-05 → 1995-05 ended
JZZ3#,UZZ3# ¥1,440
63218G — Garnish, Sliding Roof Side, LH
63218-24020-03 note Garnish, Sliding Roof Side, LH
1991-05 → 1994-01 ended
JZZ30,UZZ3# ¥3,060
63218-24020-07 note Garnish, Sliding Roof Side, LH
1991-05 → 1998-08 ended
JZZ3#,UZZ3# ¥3,060
63218-24020-08 note Garnish, Sliding Roof Side, LH
1991-05 → —
JZZ3#,UZZ3# ¥3,060
63218-24020-B0 note Garnish, Sliding Roof Side, LH
1994-01 → 1998-08 ended
JZZ3#,UZZ3# ¥3,060
63218-24020-B1 note Garnish, Sliding Roof Side, LH
1998-08 → —
JZZ3# ¥3,060
63218H — Hose, Sliding Roof Drain
63249-24050 Hose, Sliding Roof Drain
1991-05 → —
JZZ3#,UZZ3# ¥190
63219A — Garnish, Sliding Roof, Rear
63219-24020-03 note Garnish, Sliding Roof, Rear
1991-05 → 1994-01 ended
JZZ30,UZZ3# ¥4,160
63219-24020-07 note Garnish, Sliding Roof, Rear
1991-05 → 1998-08 ended
JZZ3#,UZZ3# ¥4,150
63219-24020-08 note Garnish, Sliding Roof, Rear
1991-05 → —
JZZ3#,UZZ3# ¥4,150
63219-24020-B0 note Garnish, Sliding Roof, Rear
1994-01 → 1998-08 ended
JZZ3#,UZZ3# ¥4,160
63219-24020-B1 note Garnish, Sliding Roof, Rear
1998-08 → —
JZZ3# ¥8,600
63221 — Casing, Sliding Roof Cable Guide
63221-24020 Casing, Sliding Roof Cable Guide
1991-05 → 1993-11 ended
JZZ30,UZZ3# ¥5,800
63221-24021 Casing, Sliding Roof Cable Guide
1993-11 → —
JZZ3#,UZZ3# ¥5,800
63239 — Stopper, Sliding Roof Panel
63239-50010 Stopper, Sliding Roof Panel
1994-01 → —
JZZ3#,UZZ3# ¥620
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-24010 Bracket, Sliding Roof Housing Front Mounting, RH
1991-05 → —
JZZ3#,UZZ3# ¥650
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-24010 Bracket, Sliding Roof Housing Center Mounting, RH
1991-05 → —
JZZ3#,UZZ3# ¥660
63252D — Weatherstrip, Sliding Roof Housing
63252-24020 Weatherstrip, Sliding Roof Housing
1991-05 → —
JZZ3#,UZZ3# ¥1,630
63255 — Cover, Sliding Roof Guide Rail, RH
63255-24020 Cover, Sliding Roof Guide Rail, RH
1991-05 → —
JZZ3#,UZZ3# ¥580
63256 — Cover, Sliding Roof Guide Rail, LH
63256-24010 Cover, Sliding Roof Guide Rail, LH
1991-05 → —
JZZ3#,UZZ3# ¥660
63260A — Gear Sub-assy, Sliding Roof Drive
63260-24020 Gear Sub-assy, Sliding Roof Drive
1991-05 → —
JZZ3#,UZZ3# ¥46,900
63265B — Gear, Sliding Roof Drive
63265-20010 Gear, Sliding Roof Drive
1991-05 → —
JZZ3#,UZZ3# ¥1,600
63277C — Shim, Sliding Roof Panel
63277-20020 note Shim, Sliding Roof Panel
1991-05 → 1993-12 ended
JZZ30,UZZ3# ¥740
63277-20030 note Shim, Sliding Roof Panel
1991-05 → —
JZZ3#,UZZ3# ¥280
63277-20040 note Shim, Sliding Roof Panel
1991-05 → 1993-12 ended
JZZ30,UZZ3# ¥740
63277-20050 note Shim, Sliding Roof Panel
1991-05 → —
JZZ3#,UZZ3# ¥240
63277-50010 note Shim, Sliding Roof Panel
1992-08 → 1993-12 ended
JZZ30,UZZ3# ¥510
63277-50020 note Shim, Sliding Roof Panel
1992-08 → —
JZZ3#,UZZ3# ¥350
63327F — Fastener, Roof Headlining, NO.1
63327-24030 Fastener, Roof Headlining, NO.1
1994-08 → —
JZZ3#,UZZ3# ¥460
90530-20014 Fastener, Roof Headlining, NO.1
1991-05 → 1994-08 ended
JZZ3#,UZZ3# ¥90
63603 — Rail Sub-assy, Sliding Roof Drive, RH
63603-24010 Rail Sub-assy, Sliding Roof Drive, RH
1991-05 → 1993-11 ended
JZZ30,UZZ3# ¥30,000
63603-24011 Rail Sub-assy, Sliding Roof Drive, RH
1993-11 → —
JZZ3#,UZZ3# ¥30,100
63604A — Rail Sub-assy, Sliding Roof Drive, LH
63604-24010 Rail Sub-assy, Sliding Roof Drive, LH
1991-05 → 1993-11 ended
JZZ30,UZZ3# ¥30,000
63604-24011 Rail Sub-assy, Sliding Roof Drive, LH
1993-11 → —
JZZ3#,UZZ3# ¥30,100
63635A — Garnish, Sliding Roof, Front
63635-24020-03 note Garnish, Sliding Roof, Front
1991-05 → 1994-01 ended
JZZ30,UZZ3# ¥3,240
63635-24020-07 note Garnish, Sliding Roof, Front
1991-05 → 1994-01 ended
JZZ30,UZZ3# ¥3,240
63635-24020-08 note Garnish, Sliding Roof, Front
1991-05 → 1994-01 ended
JZZ30,UZZ3# ¥3,240
63635-24020-A2 note Garnish, Sliding Roof, Front
1994-01 → —
JZZ3#,UZZ3# ¥3,240
63635-24020-B0 note Garnish, Sliding Roof, Front
1994-01 → 1998-08 ended
JZZ3#,UZZ3# ¥3,240
63635-24020-B1 note Garnish, Sliding Roof, Front
1998-08 → —
JZZ3# ¥3,240
63635-24020-G0 note Garnish, Sliding Roof, Front
1994-01 → 1998-08 ended
JZZ3#,UZZ3# ¥3,240
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
