Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07

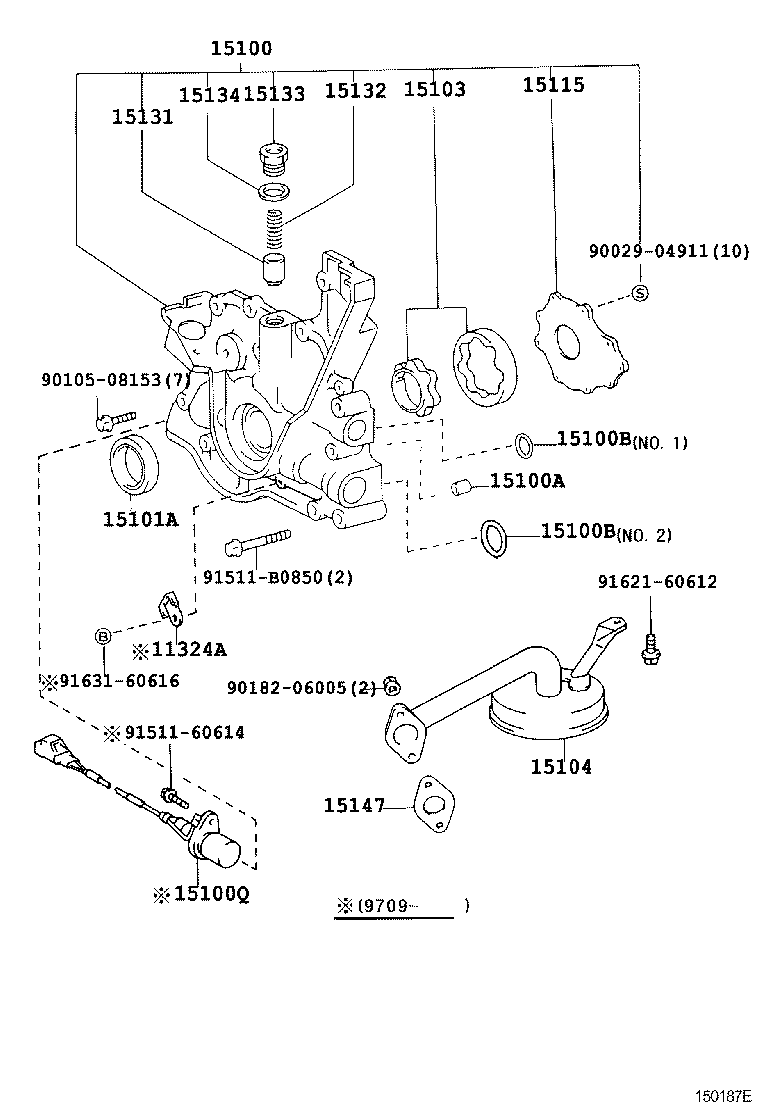

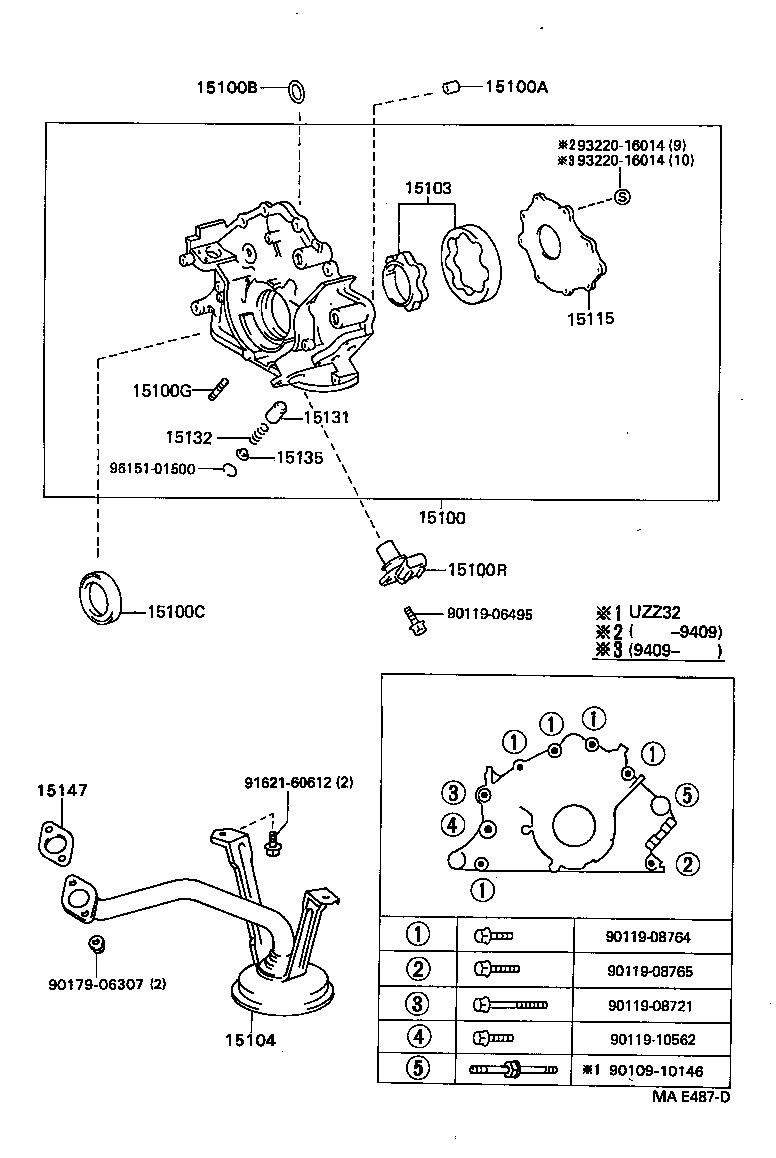

Engine Oil Pump
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11324A | Plate, Timing Belt |
| 15100 | Pump Assy, Oil |
| 15100A | Pin, Ring(FOR OIL PUMP SET) |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15100C | Seal(FOR OIL PUMP) |
| 15100G | Bolt,Stud(FOR OIL PUMP) |
| 15100Q | Sensor, Crank Position |
| 15100R | Sensor, Crank Position |
| 15101A | Seal(FOR CRANKSHAFT) |
| 15103 | Gear Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15115 | Cover, Oil Pump |
| 15121 | Gear, Oil Pump Drive |
| 15122 | Gear, Oil Pump Driven |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
