Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07
Engine Oil Cooler
7 part groups · 3 illustrations
Part groups

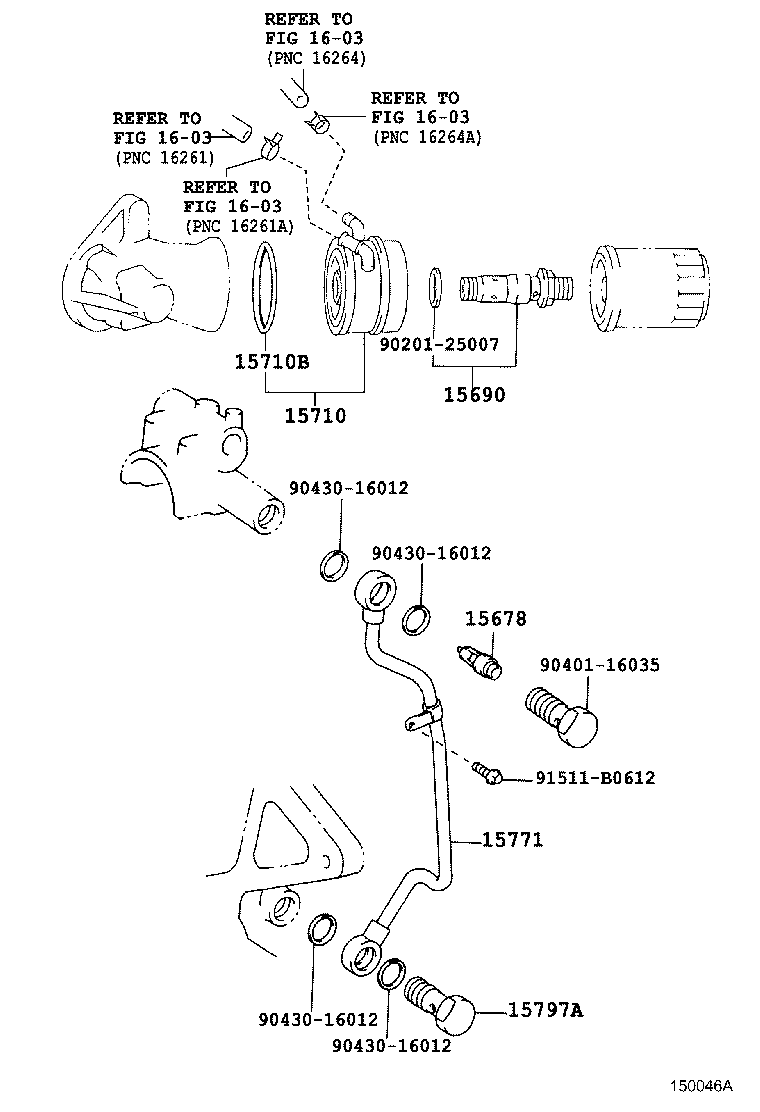

| PNC | Description |
|---|---|
| 15678 | Filter, Oil Control Valve |
| 15690 | Valve Assy, Oil Cooler Relief |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15771 | Pipe, Oil, NO.1 |
| 15785 | Gasket, Oil Cooler |
| 15797A | Bolt, Oil Check Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
