Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07
Manifold

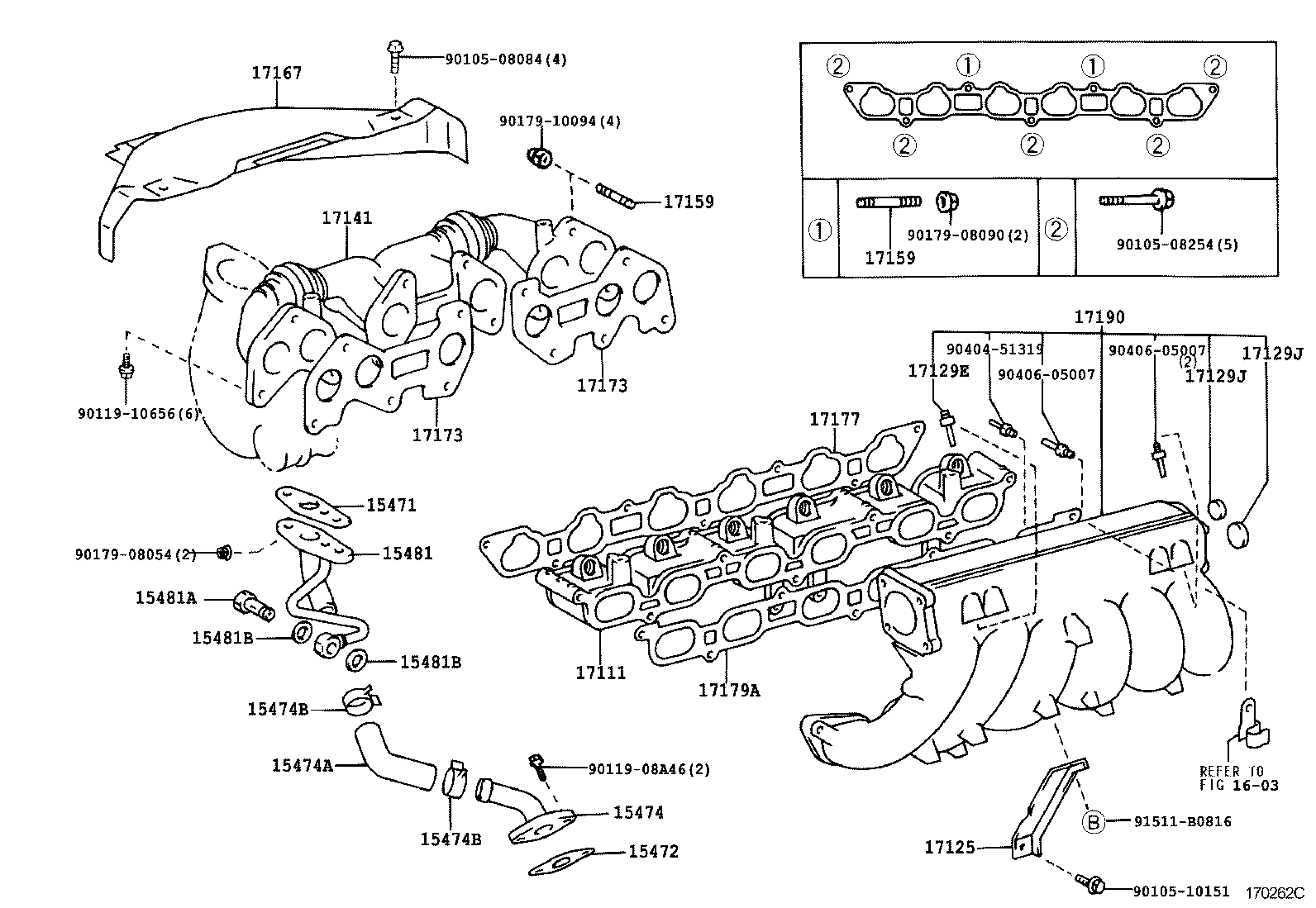

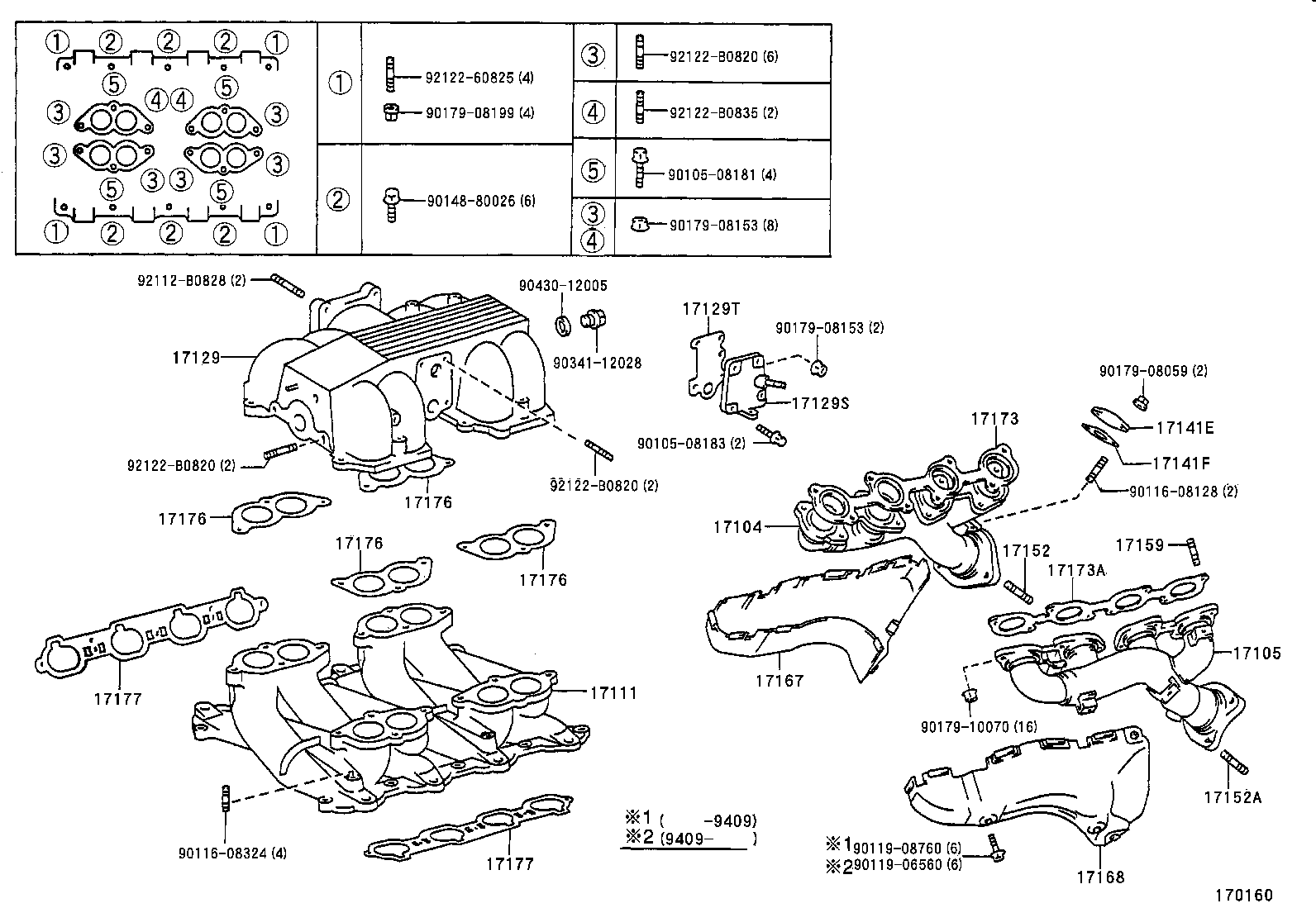

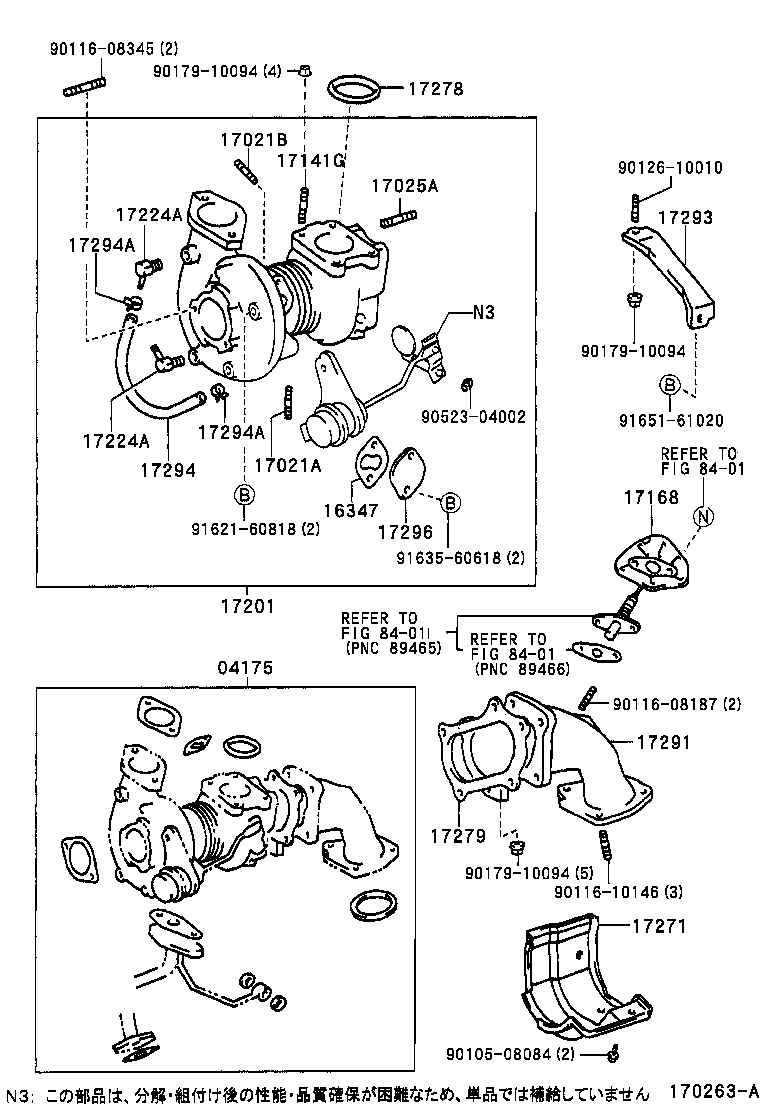

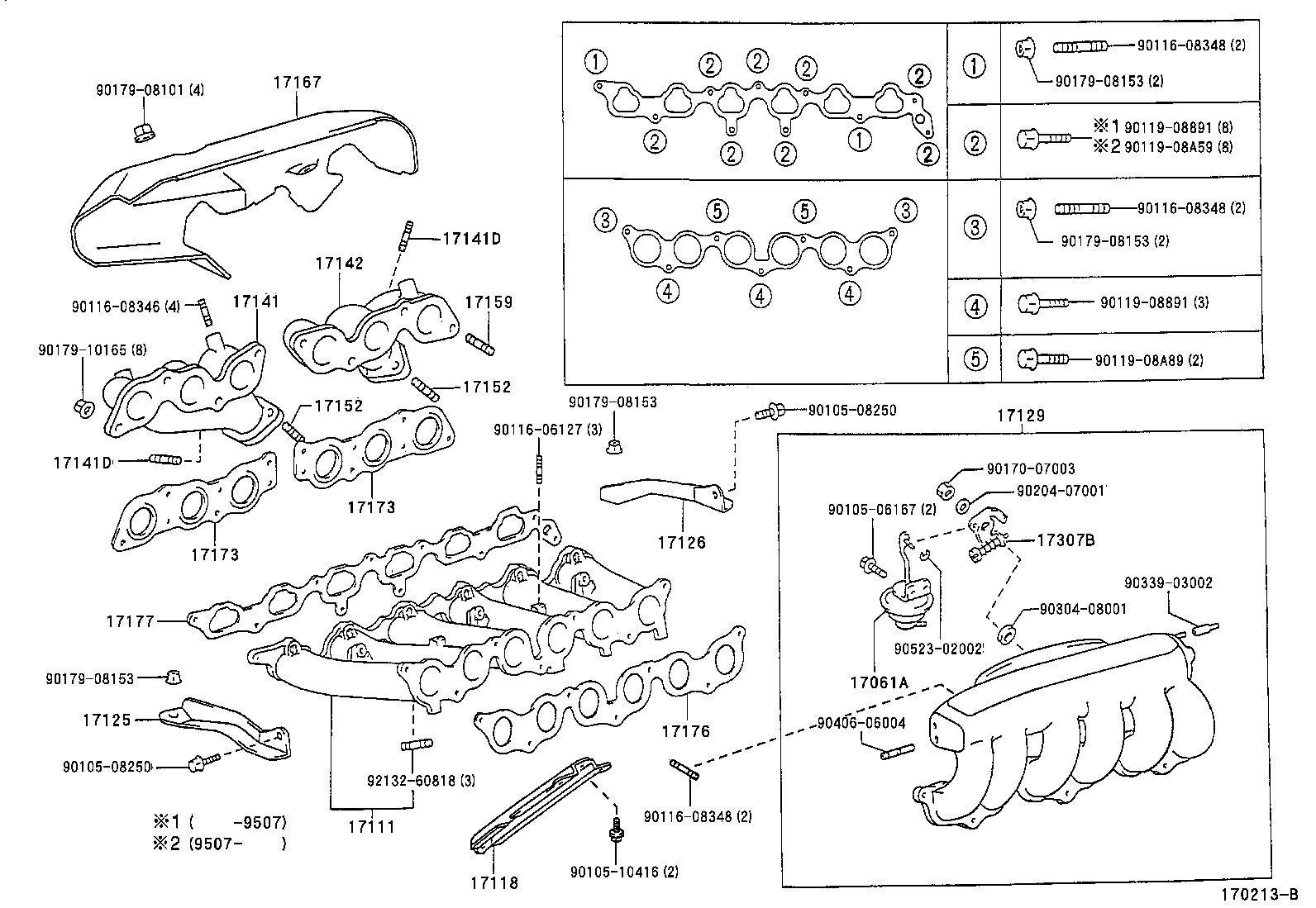

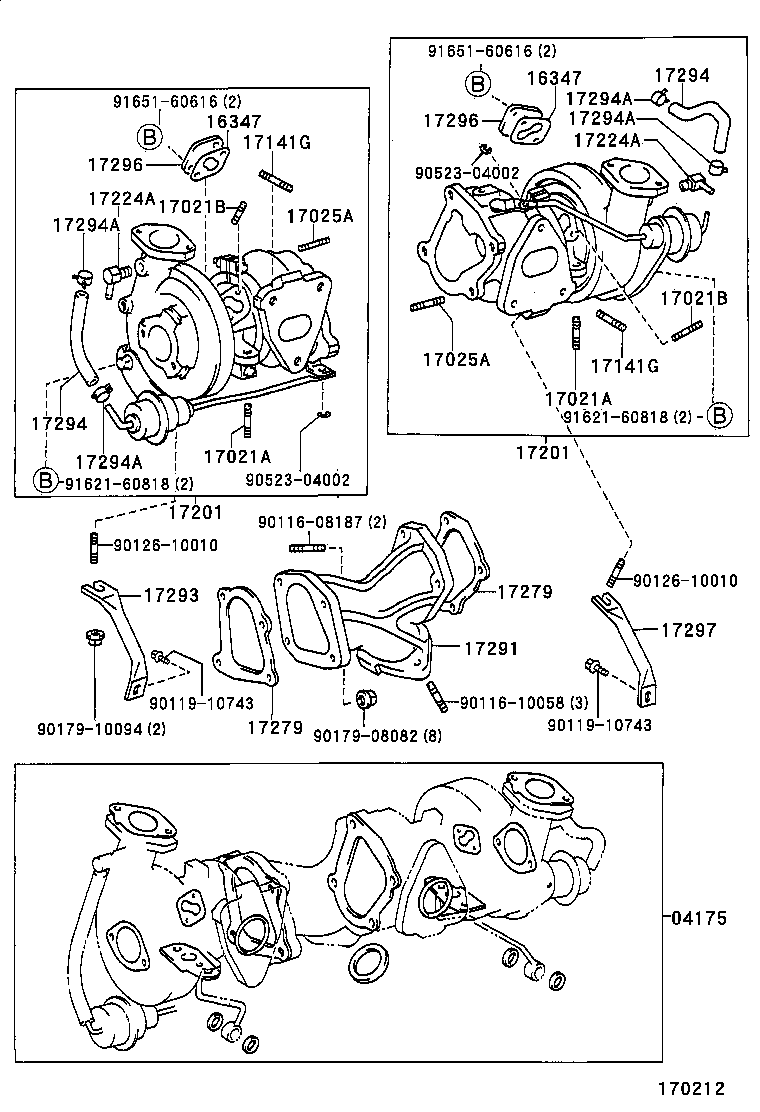

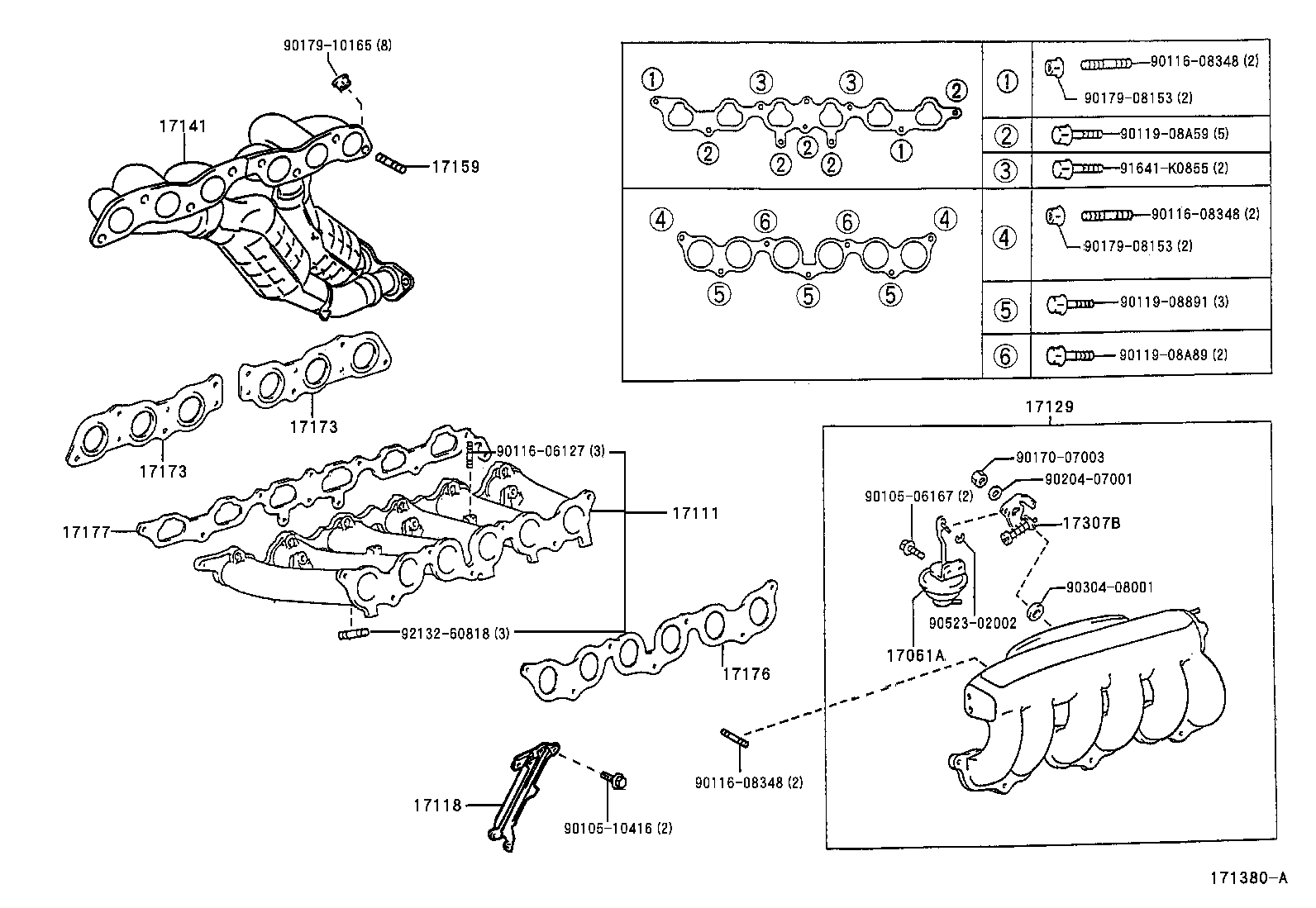

59 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15474A | Hose, Turbo Oil Outlet |
| 15474B | Clamp OR Clip(FOR TURBO OIL OUTLET HOSE) |
| 15481 | Pipe, Turbo Oil, NO.1 |
| 15481A | Bolt, Union, NO.1 |
| 15481B | Gasket(FOR UNION BOLT NO.1) |
| 15482 | Pipe, Turbo Oil, NO.2 |
| 15482A | Bolt, Union, NO.2 |
| 15482B | Gasket(FOR UNION BOLT NO.2) |
| 15492 | Hose, Turbo Oil Outlet, NO.2 |
| 15492A | Clip(FOR TURBO OIL OUTLET HOSE NO.2) |
| 16347 | Gasket, Water By-pass |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17061A | Diaphragm Sub-assy |
| 17104 | Manifold Sub-assy, Exhaust, RH |
| 17105 | Manifold Sub-assy, Exhaust, LH |
| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17129E | Union, NO.3 |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17129S | Plate(FOR INTAKE AIR SURGE TANK) |
| 17129T | Gasket(FOR INTAKE AIR SURGE TANK) |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17141E | Plate, Exhaust Manifold |
| 17141F | Gasket(FOR EXHAUST MANIFOLD PLATE) |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17142 | Case, Exhaust Manifold, NO.2 |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17152A | Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17173A | Gasket, Exhaust Manifold TO Head, LH |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17190 | Tank Assy, Intake Air Surge |
| 17201 | Turbocharger Sub-assy |
| 17224A | Union(FOR COMPRESSOR HOUSING) |
| 17271 | Insulator, Turbo, NO.1 |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17297 | Stay, Turbocharger, NO.2 |
| 17307B | Lever Sub-assy, Intake Air Control |
