Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07

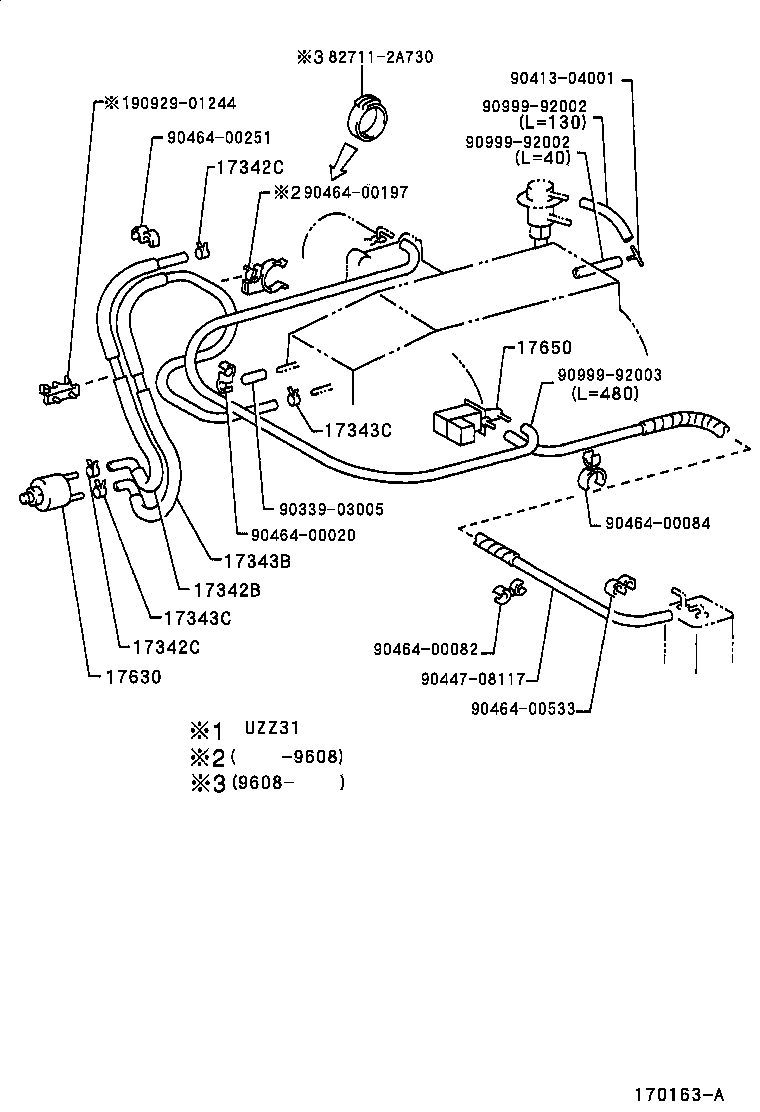

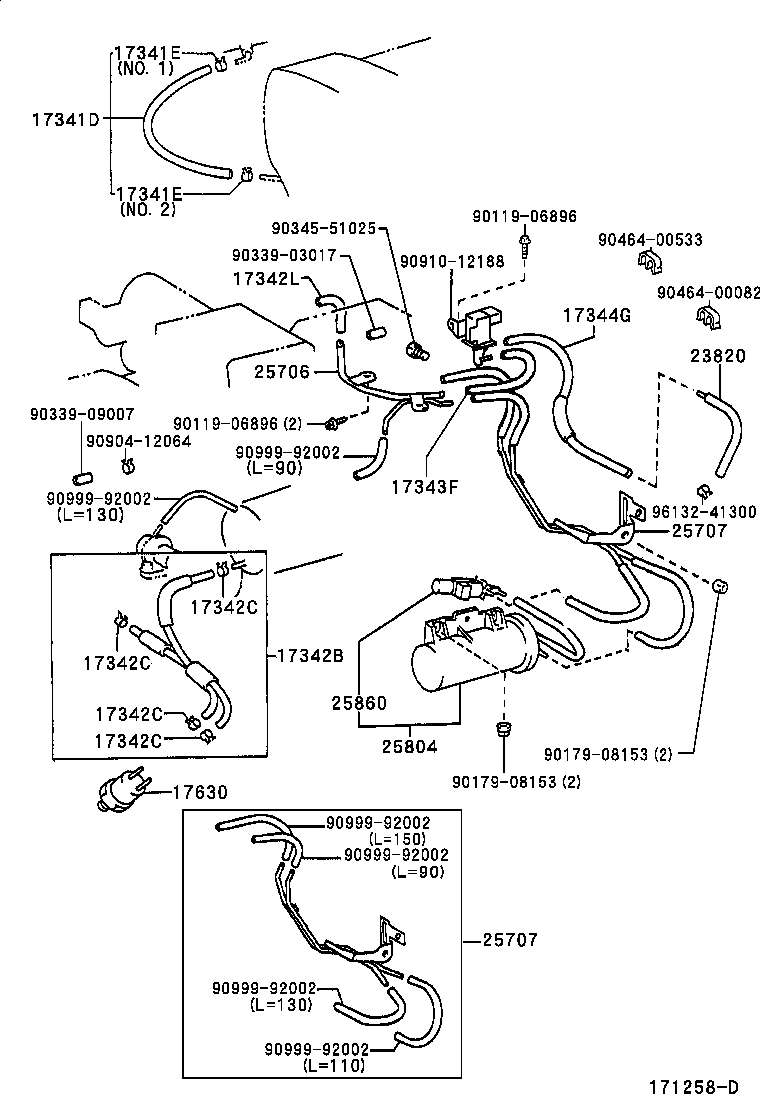

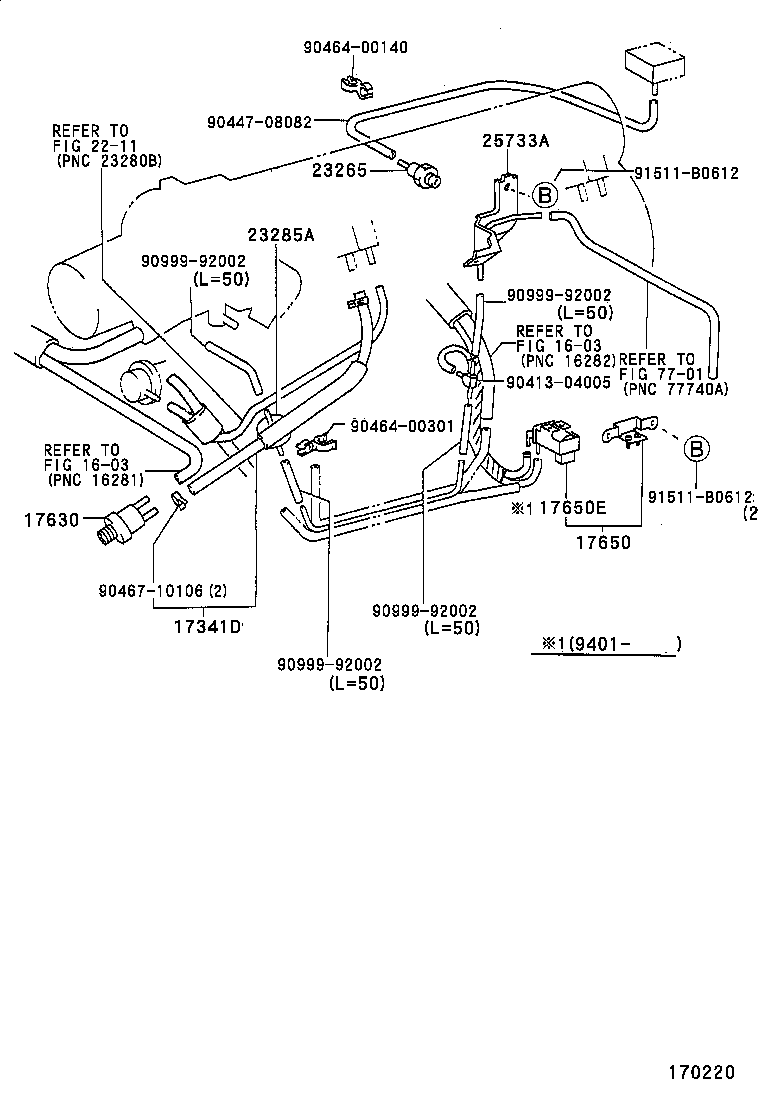

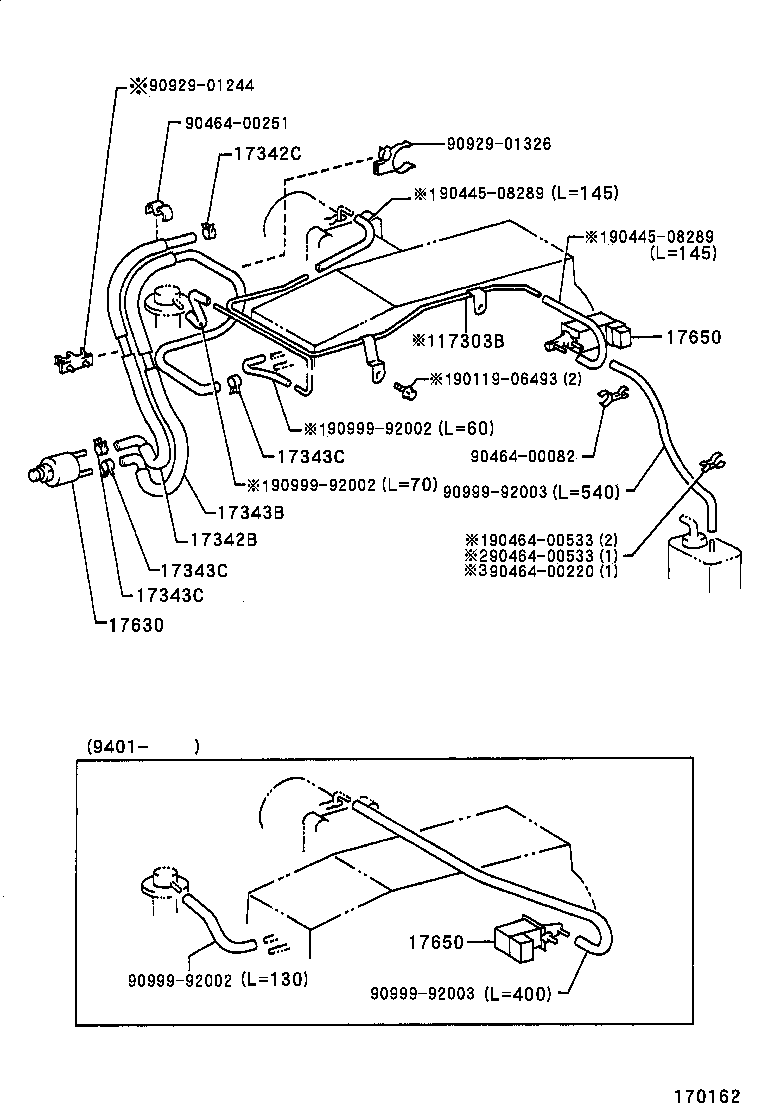

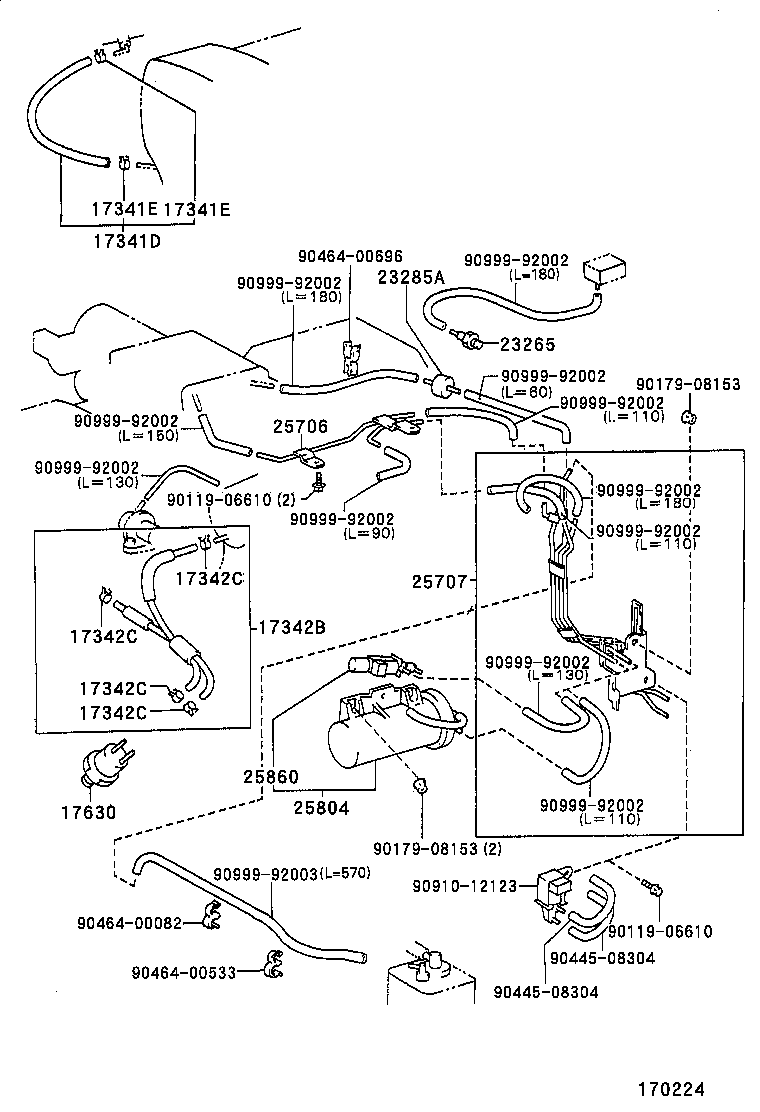

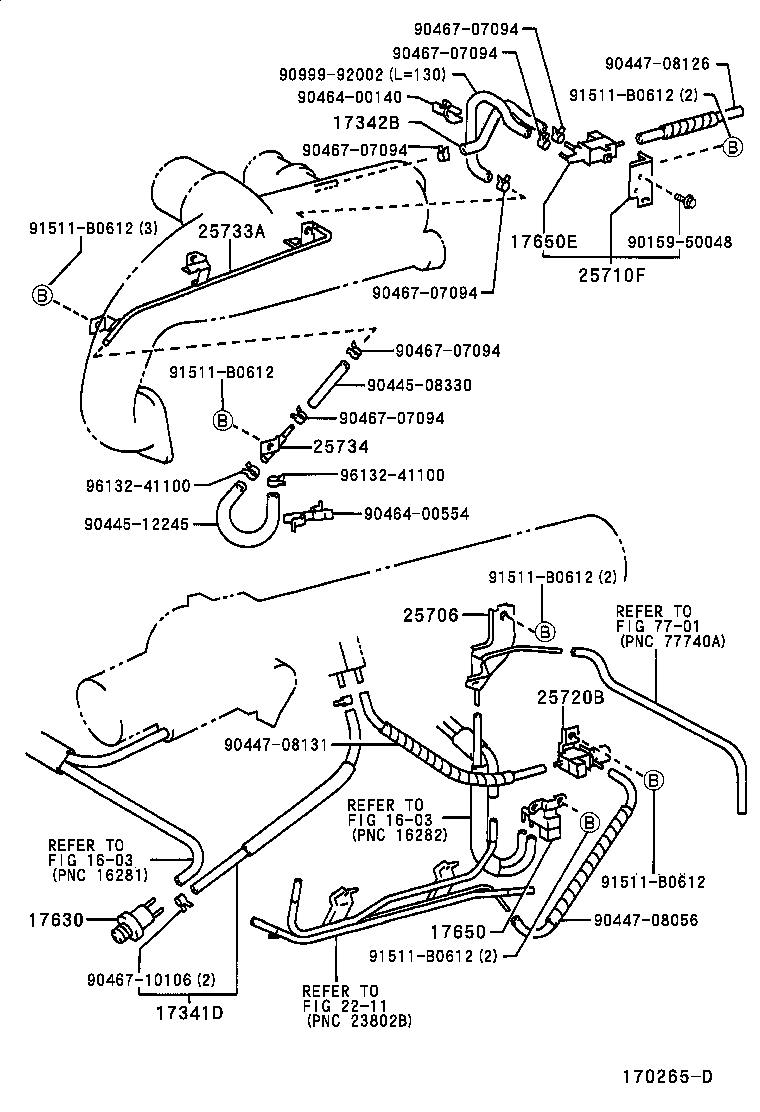

Vacuum Piping
24 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341E | Clip, NO.1(FOR IDLE-UP HOSE) |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17342C | Clip, NO.2(FOR IDLE-UP HOSE) |
| 17342L | Hose, Air, NO.2 |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17343C | Clip, NO.3(FOR IDLE-UP HOSE) |
| 17343F | Hose, Air, NO.3 |
| 17344G | Hose, Air, NO.4 |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 17650E | Valve, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25710F | Valve Assy, Air Switching |
| 25720B | Valve Assy, Air Switching, NO.2 |
| 25733A | Pipe, Vacuum, NO.1 |
| 25734 | Pipe, Vacuum, NO.2 |
| 25804 | Valve Set, Vacuum Control |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
