Toyota Soarer

1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan

Discontinued model Data version 2001-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

70 part groups · 15 illustrations

Illustrations

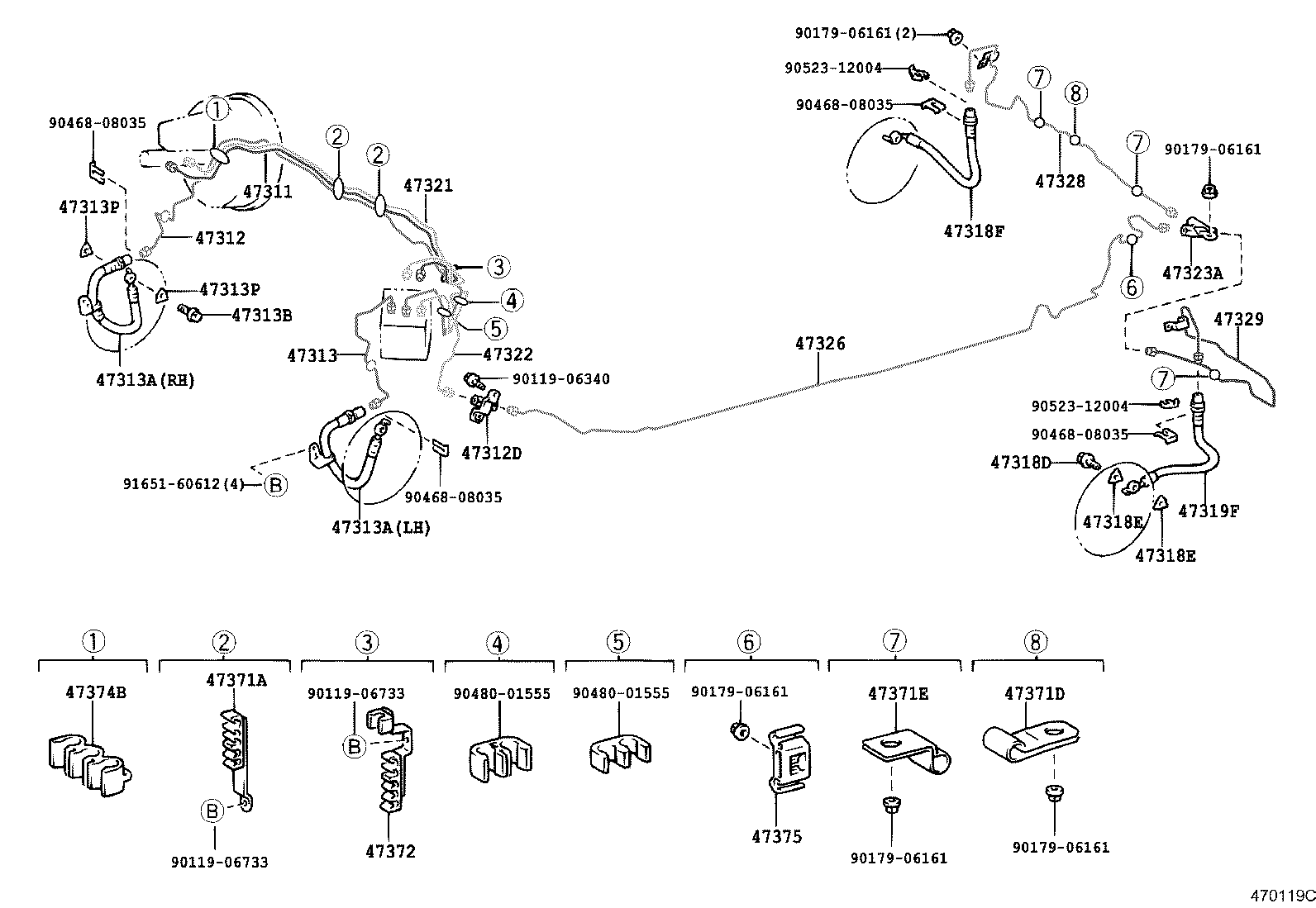

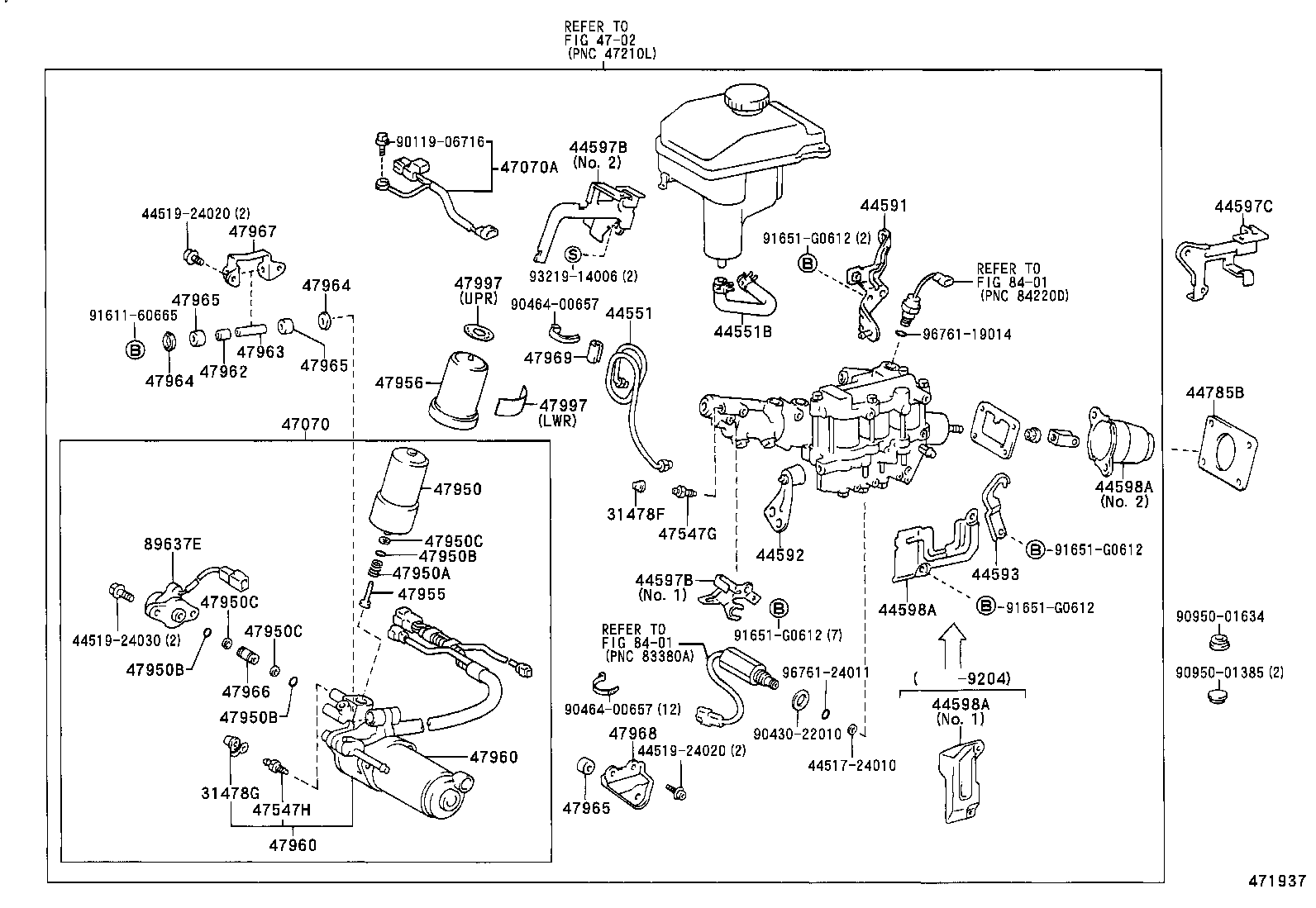

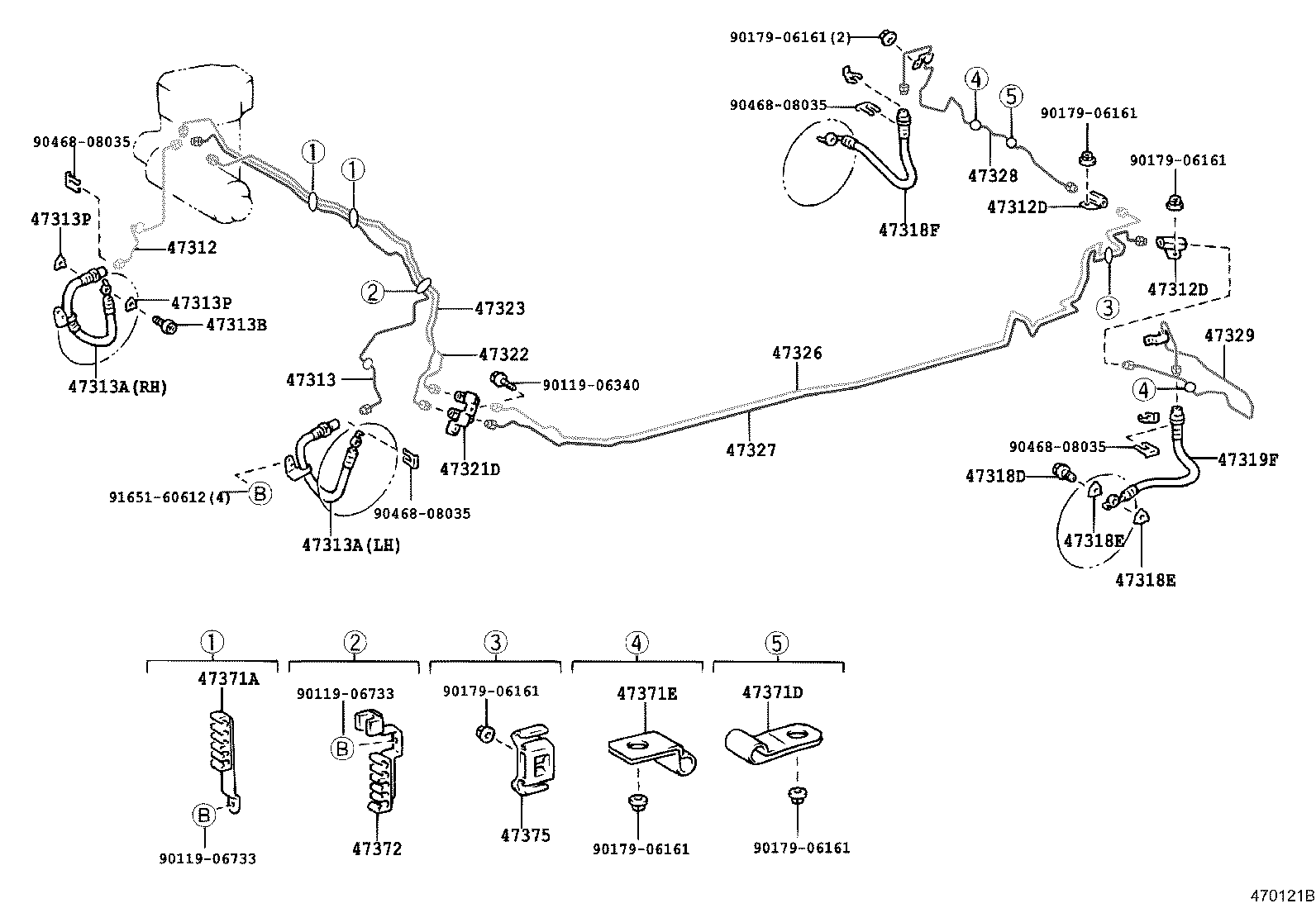

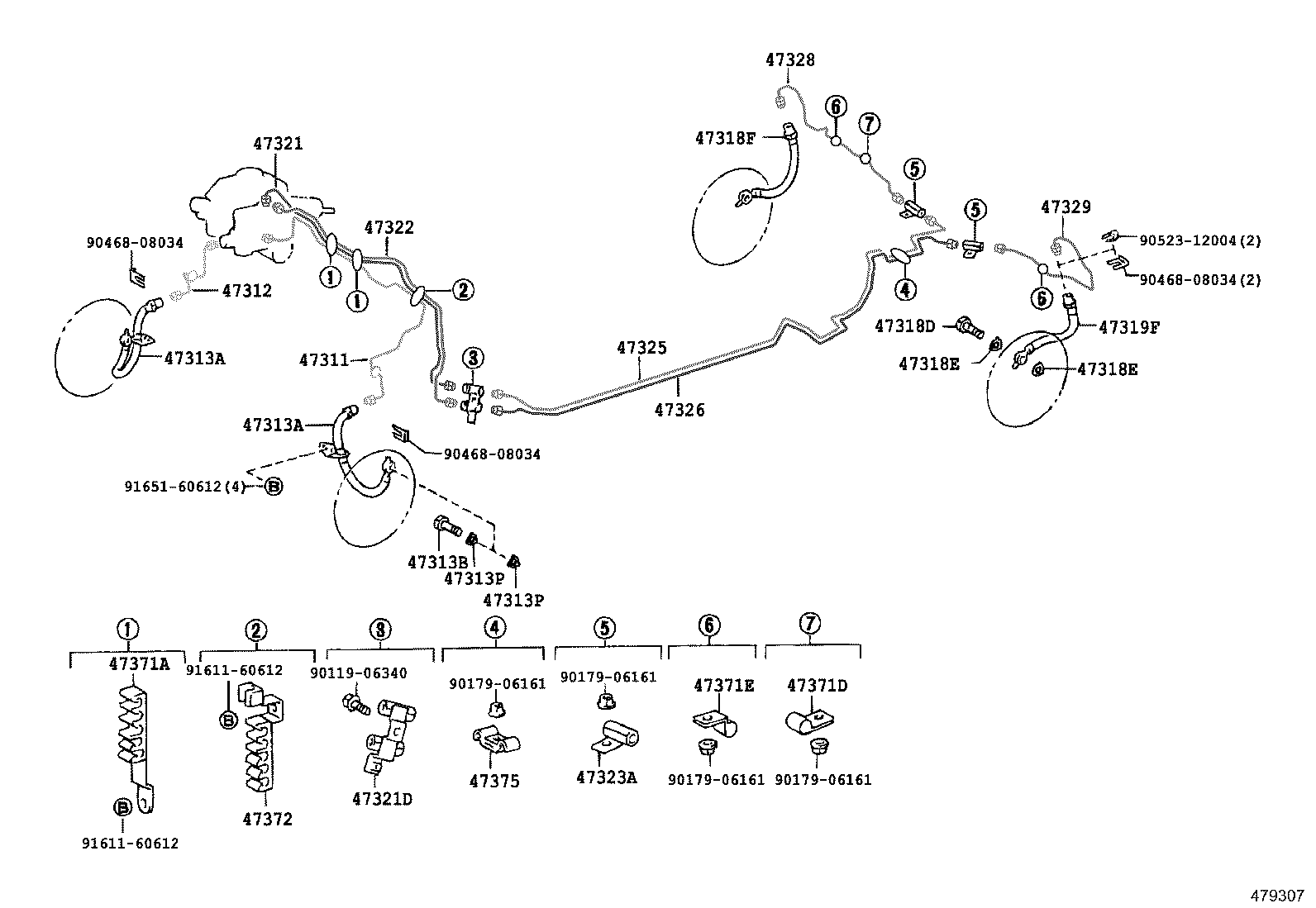

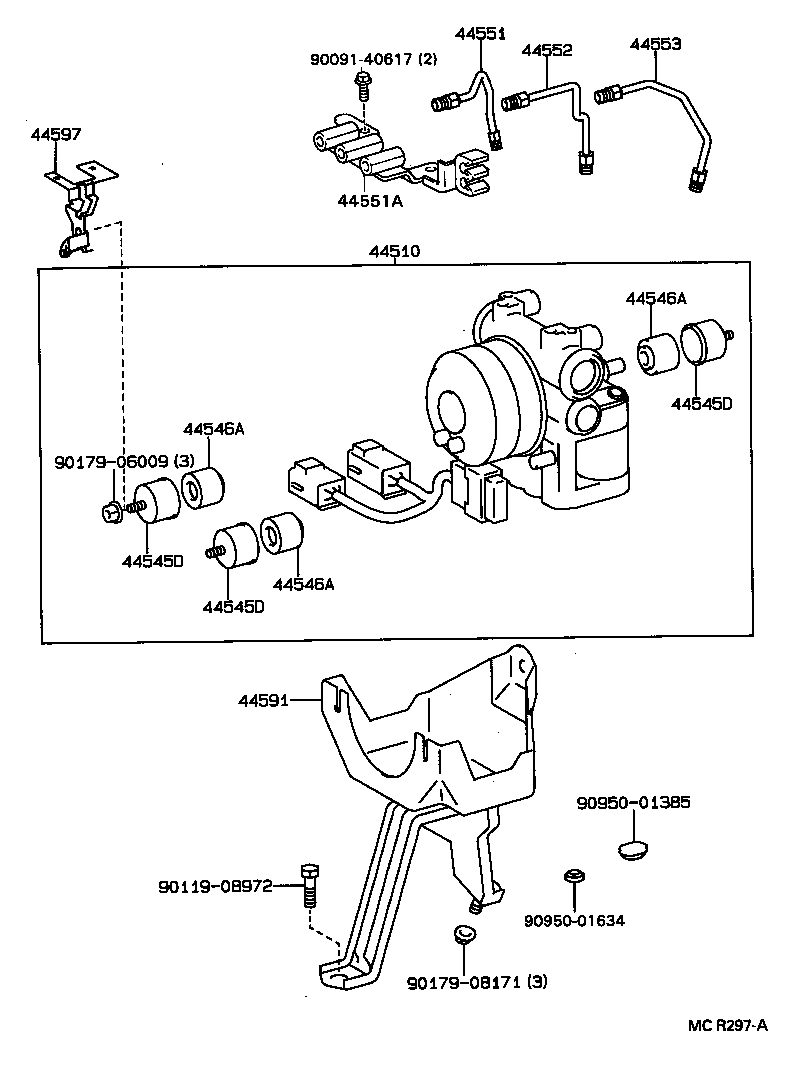

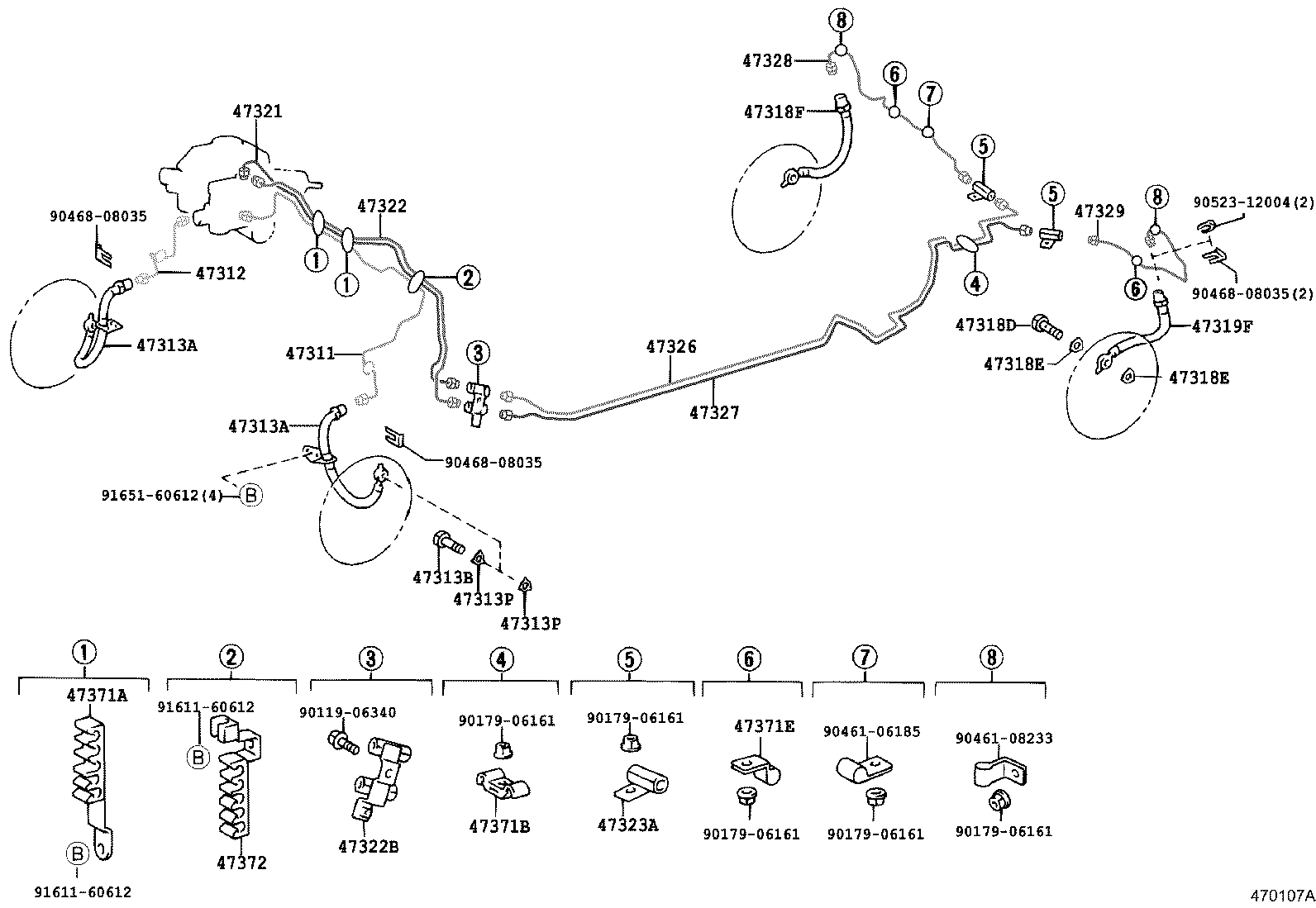

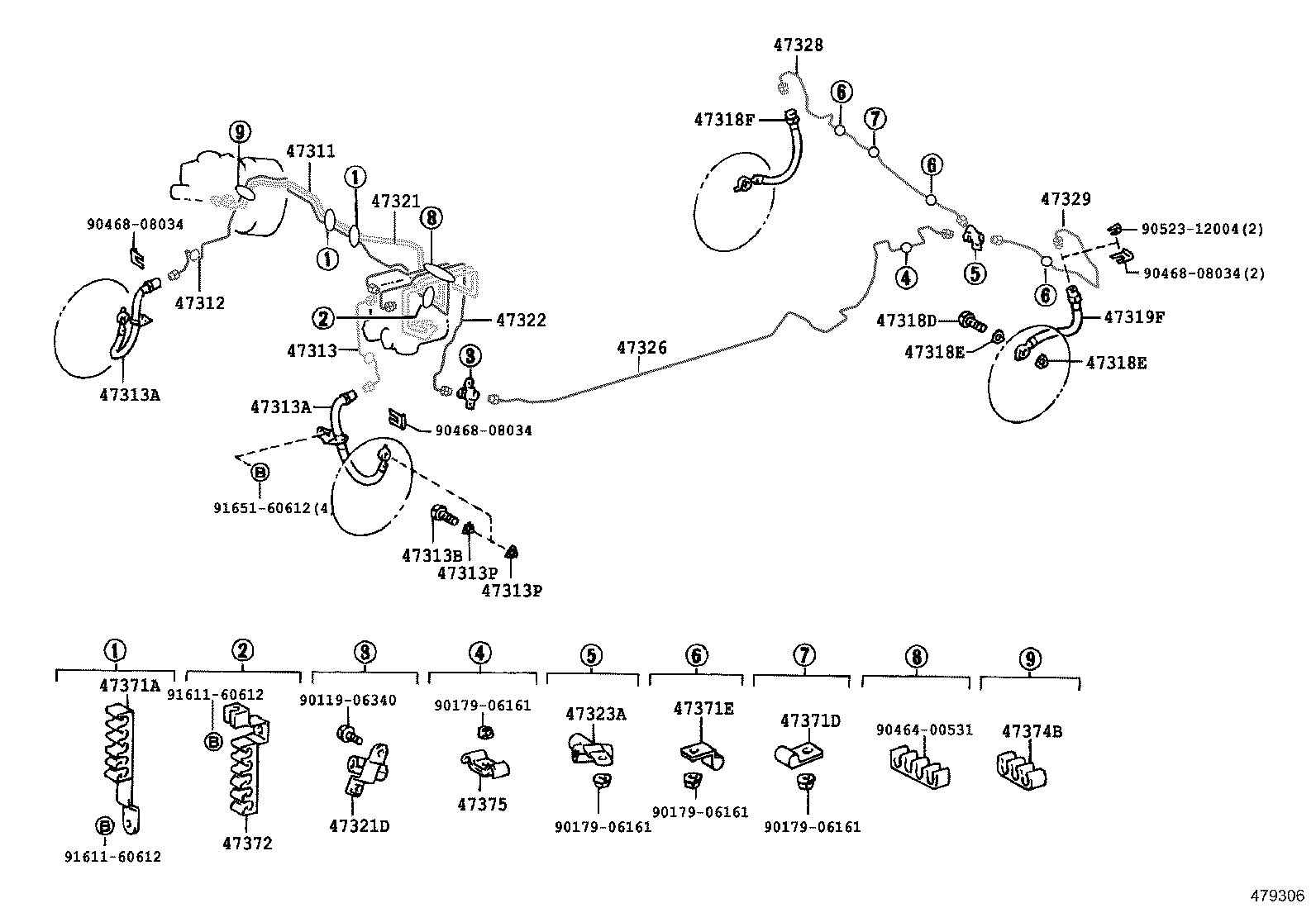

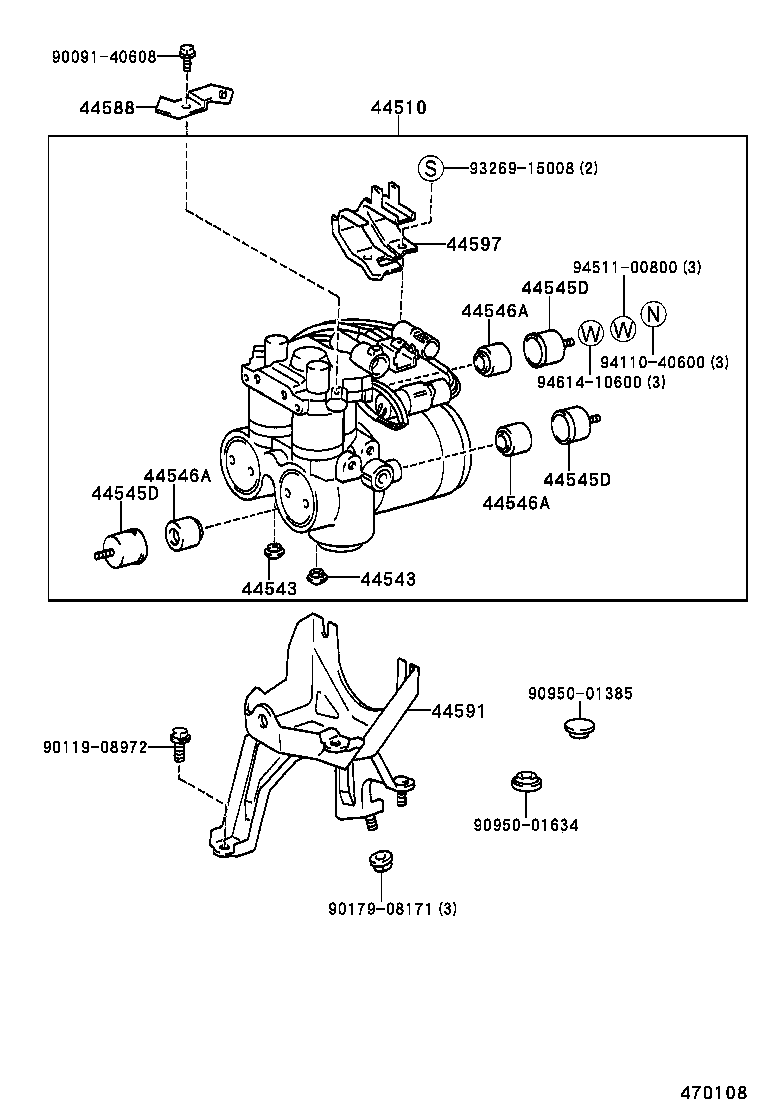

Figure 479305 479305 1991-05 → 1994-01 Figure 479305 479305 1994-01 → 1996-08 Figure 479306 479306 1991-05 → 1994-01 Figure 479306 479306 1994-01 → 1996-08 Figure 479307 479307 1991-05 → 1994-01 Figure 479307 479307 1991-05 → 1996-08 Figure 479307 479307 1994-01 → 1996-08 Figure 470107A 470107A 1991-05 → 1996-08 Figure 470108 470108 1991-05 → 1994-01 Figure MCR297A MCR297A 1994-01 → 1996-08 Figure 470119C 470119C 1996-08 → — Figure 470121B 470121B 1996-08 → — Figure 470120 470120 1996-08 → — Figure 471937 471937 1991-05 → 1996-08 Figure 471937 471937 1996-08 → —

Part groups

PNCDescription
31478F Cap, Bleeder Plug(FOR BRAKE TRACTION ACTUATOR)
31478G Cap, Bleeder Plug(FOR BRAKE TRACTION ACCUMULATOR)
44510 Actuator Assy, Brake
44543 Cap, Rubber
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44551B Hose, Brake Actuator
44552 Tube, Brake Actuator, NO.2
44553 Tube, Brake Actuator, NO.3
44588 Clamp, Brake Actuator Wire
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44593 Bracket, Brake Actuator, NO.3
44597 Clamp, Brake Actuator Connector, NO.1
44597B Clamp, Brake Traction Actuator Connector
44597C Clamp, Brake Actuator Connector
44598A Cover, Brake Actuator
44785B Gasket, Brake Booster
47070 Pump Assy, Brake Booster
47070A Wire Sub-assy, Brake Actuator Coil Lead
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47312D Way, 2(FOR REAR BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47372 Clamp, Brake Tube, NO.2
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47547G Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR)
47547H Plug, Bleeder(FOR BRAKE TRACTION ACCUMULATOR)
47950 Accumulator Assy, Brake Booster
47950A Spring, Compression
47950B Ring, O, NO.1(FOR BRAKE BOOSTER ACCUMLATOR)
47950C Ring, O, NO.2(FOR BRAKE BOOSTER ACCUMLATOR)
47955 Pipe, Brake Booster Accumulator
47956 Cover, Brake Booster Accumulator
47960 Pump Assy, Brake Booster
47962 Collar, Brake Booster Pump
47963 Shaft, Brake Booster Pump
47964 Washer, Brake Booster Pump
47965 Bush, Brake Booster Pump
47966 Pipe, Brake Booster Pump Oil
47967 Bracket, Brake Booster Pump
47968 Bracket, Brake Booster Pump, NO.2
47969 Cushion, Brake Booster Tube
47997 Label, Brake Booster Accumlator Caution, NO.1
89637E Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
